Siemens 6ES7514-2VN03-0AB0 S7-1500 CPU 1514SP T-2 PN 900KB/3.5MB Technology Programmable Logic Controller

% $-3,605.14

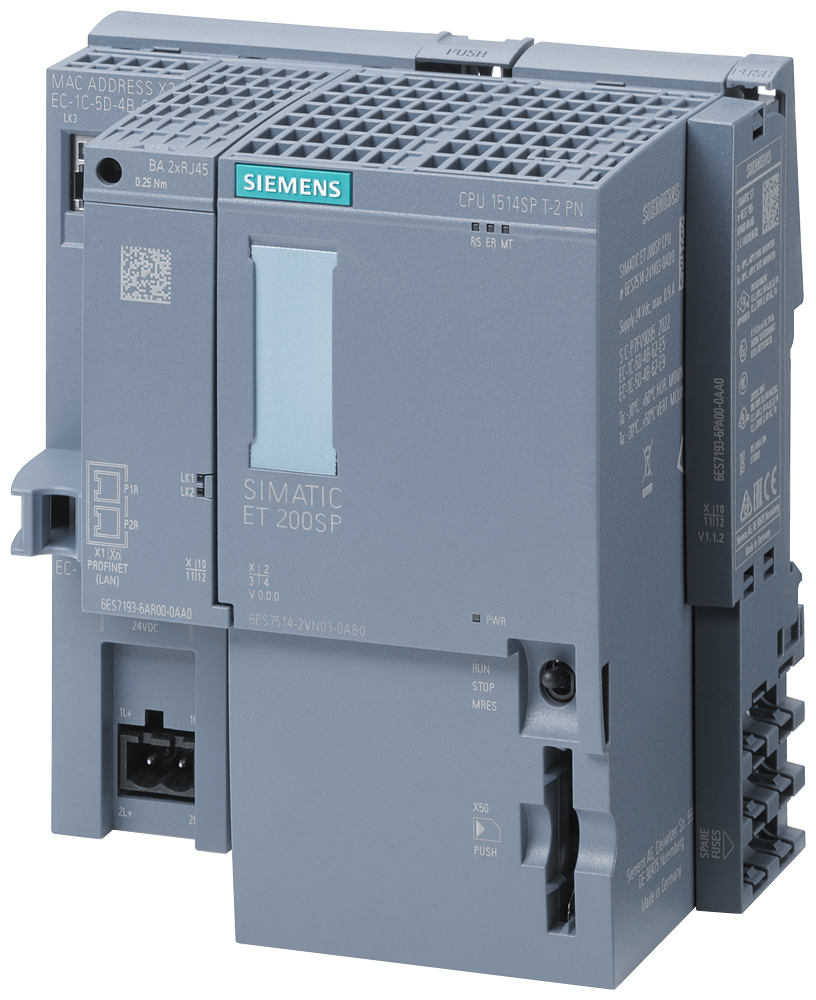

Siemens 6ES7514-2VN03-0AB0 CPU 1514SP T-2 PN technology PLC for ET 200SP motion control
Siemens 6ES7514-2VN03-0AB0 CPU 1514SP T-2 PN technology PLC for ET 200SP motion control

Siemens 6ES7514-2VN03-0AB0 S7-1500 CPU 1514SP T-2 PN 900KB/3.5MB Technology Programmable Logic Controller

Brand: Siemens
Reference No: 6ES7514-2VN03-0AB0
Catalog No: 6ES7514-2VN03-0AB0
Series: SIMATIC S7-1500
Tariff Code (HS): 85371091
Rated Current: 0.48 A
Rated Voltage: 24 V DC
Communication: 2x PROFINET (IRT + RT via BusAdapter), PROFINET IO Controller/Device, Open IE, Web server
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$3,605.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7514-2VN03-0AB0 CPU 1514SP T-2 PN is a technology CPU for the SIMATIC ET 200SP system, adding motion-control axis processing to standard PLC logic. It carries 900 KB of work memory for the program and 3.5 MB for data, ships with the ET 200SP server module 6ES7193-6PA00-0AA0, and needs a BusAdapter on its first PROFINET port.

Technical Specifications

SKU 6ES7514-2VN03-0AB0
Brand Siemens
Series SIMATIC S7-1500 (ET 200SP)
Product type designation CPU 1514SP T-2 PN
Firmware version V4.1
Work memory, program 900 kbyte
Work memory, data 3.5 Mbyte
Load memory, max. (SIMATIC Memory Card) 32 Gbyte
SIMATIC memory card required Yes (not included)
Supply voltage, rated (DC) 24 V
Supply voltage, permissible range (DC) 19.2 to 28.8 V
Current consumption, rated 0.48 A
Current consumption, max. 0.7 A
Power loss, typ. 3.4 W
CPU processing time, bit operations, typ. 6 ns
Number of PROFINET interfaces 2
Interface ports 2, via BusAdapter, integrated switch
Number of IO Controllers, integrated 2
Number of connectable IO devices, max. 256
Isochronous mode Yes, PROFINET only, min. OB 6x cycle 375 µs
Retentive data area, max. 472 kbyte
Rack, modules per rack, max. 82 (CPU + 64 + server module + 16 ET 200AL)
Server module included 6ES7193-6PA00-0AA0
Net weight 0.339 kg

Selection Notes

The T in the designation marks this as a technology CPU: it runs axis and motion technology objects in addition to the standard user program, which the plain 1514SP-2 PN CPU cannot do. Choose the TF variant of this CPU instead when the machine also needs integrated fail-safe logic alongside motion control. 900 KB of program memory and 3.5 MB of data memory size this CPU for ET 200SP stations with a moderate axis count; a BusAdapter must be ordered separately for the first PROFINET interface since none is built in.

Technical Details

Short Description
Siemens CPU 1514SP T-2 PN technology PLC for ET 200SP, 900KB/3.5MB memory, motion control CPU
Rated Current (Ampere)
0.48 A
Rated Voltage (VAC)
24 V DC
Mounting Type
ET 200SP BaseUnit mounting (BusAdapter required on X1)
Catalog No
6ES7514-2VN03-0AB0
Standards
GDS support (certificate management), Recycler Guide available
Delivery Date (Days)
10-15 days
Model Number
6ES7514-2VN03-0AB0
Tariff Code
85371091
