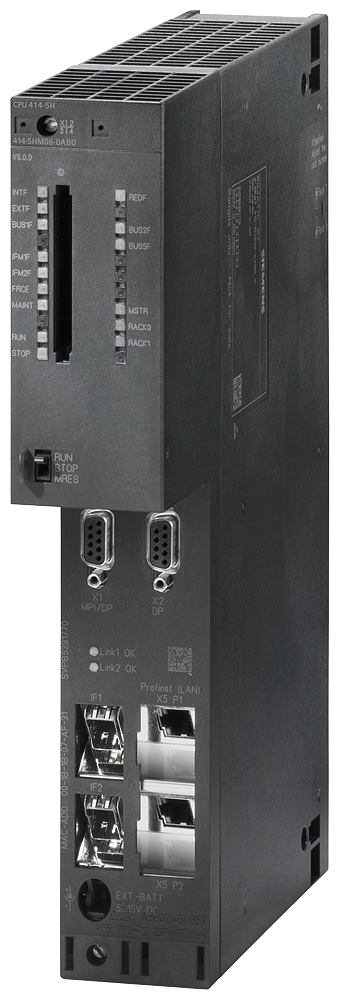

Siemens 6ES7414-5HM06-0AB0 SIMATIC S7-400H CPU 414-5H PN/DP 4MB Fault-Tolerant PLC

% $-11,873.54
Siemens CPU 414-5H PN/DP 6ES7414-5HM06-0AB0 SIMATIC S7-400H fault-tolerant PLC - 4MB
Siemens CPU 414-5H PN/DP 6ES7414-5HM06-0AB0 SIMATIC S7-400H fault-tolerant PLC - 4MB

Siemens 6ES7414-5HM06-0AB0 SIMATIC S7-400H CPU 414-5H PN/DP 4MB Fault-Tolerant PLC

Brand: Siemens
Reference No: 6ES7414-5HM06-0AB0
Catalog No: 6ES7414-5HM06-0AB0
Series: SIMATIC S7-400
Tariff Code (HS): 85371091
Rated Voltage: Power supply via system power supply
Communication: MPI/DP, DP, PROFINET, 2x sync module
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$11,873.54

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens CPU 414-5H PN/DP (6ES7414-5HM06-0AB0) is a fault-tolerant central processing unit for SIMATIC S7-400H and S7-400F/FH systems, with 4 MB of work memory split 2 MB program and 2 MB data. Five interfaces cover MPI/DP, a dedicated DP port, PROFINET, and two synchronization module ports for redundant CPU pairing.

Technical Specifications

SKU 6ES7414-5HM06-0AB0
Brand Siemens
Series SIMATIC S7-400H
Product type designation CPU 414-5H PN/DP
Firmware version V6.0
Interfaces 1x MPI/DP, 1x DP, 1x PN, 2 for synchronization modules
Programming package STEP 7 V5.5 SP2 with HF1 or higher
Work memory, integrated 4 Mbyte (2 Mbyte program, 2 Mbyte data)
Load memory, expandable RAM, max. 64 Mbyte via Memory Card
Backup battery Present, backs up all data; typ. 180 uA, max. 1000 uA
Input current, backplane bus 5 V DC 1.6 A typ., 1.9 A max.
Power loss, typ. 7.5 W
Processing time, bit/word operations, typ. 18.75 ns
DB, number max. 6000, numbered 1 to 16000
FB / FC, number max. 3000 each, numbered 0 to 7999
Digital channels 65536 inputs, 65536 outputs, all central
Analog channels 4096 inputs, 4096 outputs, all central
Number of DP masters, integrated 2
Number of IO controllers, integrated 1
Number of expansion units, max. 21
Connectable OPs 63
Slots required 2
Clock synchronization Via MPI, DP, AS and Ethernet NTP (as client), 10 ms max. deviation via NTP

Selection Notes

Against the 412-5H, this CPU quadruples work memory to 4 MB and doubles the connectable-OP count to 63, while keeping the same five-interface layout, MPI/DP, DP, PROFINET, and two synchronization ports for redundant pairing. Pick it when a fault-tolerant S7-400H station, or a safety program on S7-400F/FH, needs more than the 412-5H's 1 MB and 47-OP ceiling. Processing time also drops to 18.75 ns typical from 31.25 ns, cutting scan time on identical logic.

Technical Details

Short Description
SIMATIC S7-400H fault-tolerant CPU 414-5H PN/DP, 4MB work memory, 5 interfaces, 2 rack slots.
Rated Voltage (VAC)
Power supply via system power supply
Mounting Type
SIMATIC S7-400H rack, 2 slots
Catalog No
6ES7414-5HM06-0AB0
Delivery Date (Days)
10-15 days
Model Number
6ES7414-5HM06-0AB0
Tariff Code
85371091
