Siemens 6ES7197-1LB00-0XA0 SIMATIC S7 Y-Link Coupler PROFIBUS DP Remote I/O Interface Module

% $-693.69

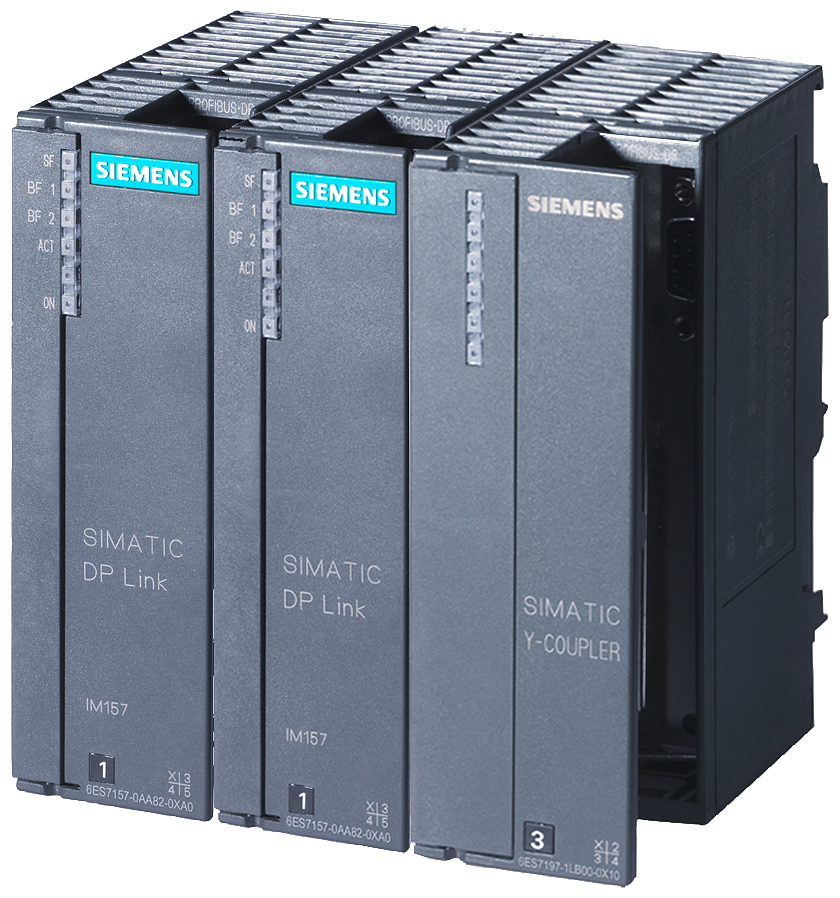

Siemens 6ES7197-1LB00-0XA0 Y-Link coupler for redundant PROFIBUS DP master systems
Siemens 6ES7197-1LB00-0XA0 Y-Link coupler for redundant PROFIBUS DP master systems

Siemens 6ES7197-1LB00-0XA0 SIMATIC S7 Y-Link Coupler PROFIBUS DP Remote I/O Interface Module

Brand: Siemens
Reference No: 6ES7197-1LB00-0XA0
Catalog No: 6ES7197-1LB00-0XA0
Series: SIMATIC ET 200
Tariff Code (HS): 85176200
Rated Current: 0.3 A (max.)
Communication: PROFIBUS DP
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$693.69

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7197-1LB00-0XA0 is a Y-Link coupler that connects a single, non-redundant lower-level PROFIBUS DP master system to a pair of redundant SIMATIC S7 controllers, so field devices without a redundant interface can still run on a fault-tolerant automation system. It supports a DP transmission rate up to 12 Mbit/s and up to 31 DP devices.

Technical Specifications

Order Number (MLFB) 6ES7197-1LB00-0XA0
EAN 4025515067955
Brand Siemens
Series SIMATIC S7
Product Type Designation Y-Link Coupler
Function Couples a lower-level PROFIBUS DP master system to redundant S7 controllers via Y-Link
Power Supply Design Via bus module
Supply Voltage Range (DC) 20.4-28.8 V
Current Consumption, max. 300 mA
Power Loss, typ. 1 W
Lower-Level DP Master System Transmission Rate, max. 12 Mbit/s (45.45 kbit/s to 12 Mbit/s)
Lower-Level DP Master System Termination Active terminating resistor (Bus Terminator)
RS 485 Repeaters, max. 9
DP Devices, max. 31 (64 with RS 485 repeaters or OLM/OBT)
Parameter Assignment Telegram Length, max. 244 byte
PROFIBUS DP Yes
Diagnostics Function Yes
Potential Separation to Lower-Level DP Master System Yes
Degree of Protection IP20
Width 40 mm
Height 125 mm
Depth 130 mm
Weight, approx. 200 g
Country of Origin DE

Selection Notes

Choose this Y-Link when an existing DP slave segment has only a single, non-redundant master connection but must keep running if one of a pair of redundant S7 controllers fails - the coupler duplicates that connection into the redundant system without modifying the slave devices. The 31-device ceiling on the lower-level DP master system (64 with RS 485 repeaters or OLM/OBT) caps how many field devices can share that segment behind this coupler.

Technical Details

Short Description
Y-Link coupler links a PROFIBUS DP master system to redundant SIMATIC S7 controllers, 12 Mbit/s, IP20.
Rated Current (Ampere)
0.3 A (max.)
Mounting Type
Via bus module
Protection Type
IP20
Catalog No
6ES7197-1LB00-0XA0
Delivery Date (Days)
10-15 days
Model Number
6ES7197-1LB00-0XA0
Tariff Code
85176200
