Siemens 6ES7194-4AP00-0AA0 SIMATIC ET 200pro CM CPU 2x PROFINET 3x M12 8A PLC Connection Module

% $-173.65
Siemens 6ES7194-4AP00-0AA0 ET 200pro CM CPU 2xPROFINET M12 connection module - 8A
Siemens 6ES7194-4AP00-0AA0 ET 200pro CM CPU 2xPROFINET M12 connection module - 8A

Siemens 6ES7194-4AP00-0AA0 SIMATIC ET 200pro CM CPU 2x PROFINET 3x M12 8A PLC Connection Module

Brand: Siemens
Reference No: 6ES7194-4AP00-0AA0
Catalog No: 6ES7194-4AP00-0AA0
Series: SIMATIC ET 200
Tariff Code (HS): 85389091
Rated Current: 8 A
Communication: PROFINET
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$173.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

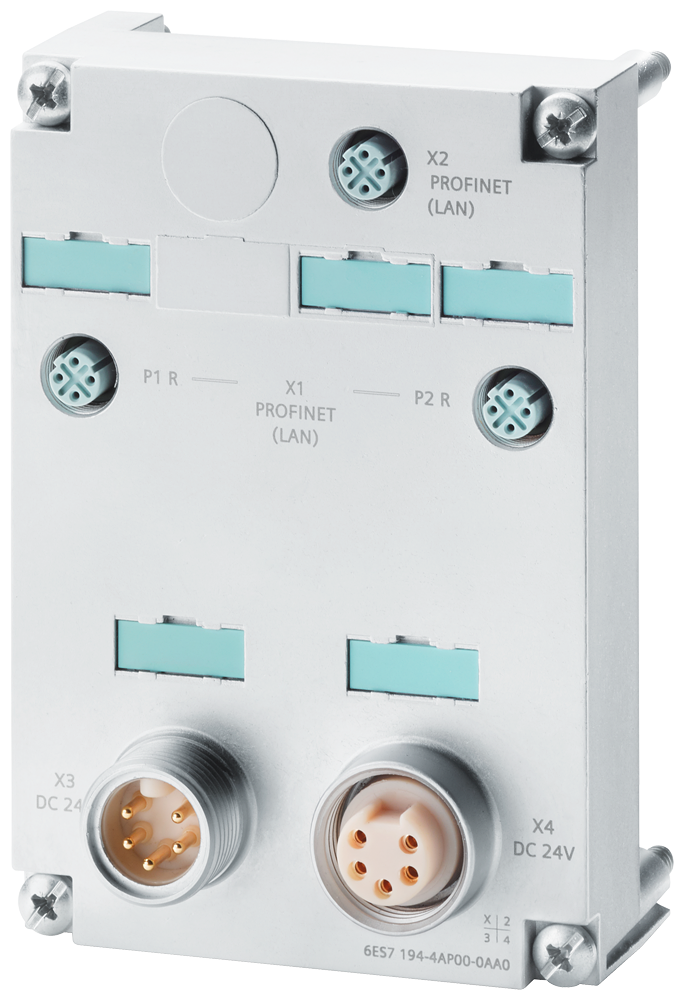

The Siemens 6ES7194-4AP00-0AA0 is a terminal connection module for the SIMATIC ET 200pro CPU 151xPRO(F)-2 PN, combining three M12 ports and two 7/8-inch ports to wire two PROFINET lines plus 24 V power. Each supply rail (1L+, 2L+) delivers up to 8 A, with an internal 2L+-to-1L+ transfer capped at 5 A.

Technical Specifications

SKU 6ES7194-4AP00-0AA0
Brand Siemens
Series SIMATIC ET 200pro
EAN 4047623407706
Function Terminal module M12 7/8-Inch: 2x PROFINET and 24 V power; 3x M12 and 2x 7/8-Inch
Compatible With ET 200pro; CPU 151xPRO(F)-2 PN
Input Current, Supply 1L+ (max.) 8 A
Input Current, Load 2L+ (max.) 8 A
Internal Transfer, 2L+ (max.) 8 A
Internal Transfer, 1L+ (max.) 5 A
Width 90 mm
Height 130 mm
Depth 51 mm
Net Weight 0.599 kg
Country of Origin DE

Selection Notes

Use this CPU terminal module when wiring the ET 200pro head end directly; it is the only connection module in this range built for the CPU 151xPRO(F)-2 PN rather than an IM interface module, and its dual-PROFINET M12 pair supports line or ring topologies at the station head. The 5 A internal transfer limit on 1L+ matters when the CPU draws power from the same feed as downstream modules.

Technical Details

Short Description
Siemens 6ES7194-4AP00-0AA0 terminal module for ET 200pro CPU 151xPRO-2 PN, dual PROFINET, 8A.
Rated Current (Ampere)
8 A
Catalog No
6ES7194-4AP00-0AA0
Delivery Date (Days)
10-15 days
Model Number
6ES7194-4AP00-0AA0
Tariff Code
85389091
