Siemens 6ES7194-4AD00-0AA0 SIMATIC ET 200pro CM IM DP M12 and 7/8-Inch 8A PLC Connection Module

% $-111.63

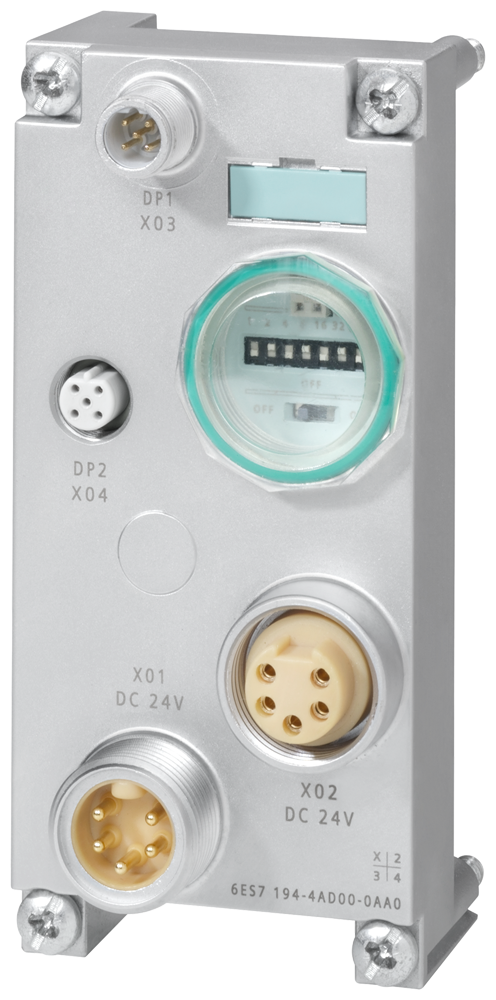

Siemens 6ES7194-4AD00-0AA0 ET 200pro CM M12 7-8-inch connection module - 8A
Siemens 6ES7194-4AD00-0AA0 ET 200pro CM M12 7-8-inch connection module - 8A

Siemens 6ES7194-4AD00-0AA0 SIMATIC ET 200pro CM IM DP M12 and 7/8-Inch 8A PLC Connection Module

Brand: Siemens
Reference No: 6ES7194-4AD00-0AA0
Catalog No: 6ES7194-4AD00-0AA0
Series: SIMATIC ET 200
Tariff Code (HS): 85176990
Rated Current: 8 A
Communication: PROFIBUS DP
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$111.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7194-4AD00-0AA0 is a PROFIBUS DP connection module for the SIMATIC ET 200pro IM154-1/2 DP interface module, offering two M12 and two 7/8-inch ports for bus and 24 V power wiring. It includes an integrated address setter and terminating resistor, and each supply rail (1L+, 2L+) is rated up to 8 A.

Technical Specifications

SKU 6ES7194-4AD00-0AA0
Brand Siemens
Series SIMATIC ET 200pro
EAN 4025515072614
Function Terminal module M12 7/8-Inch: PROFIBUS DP and 24 V power; 2x M12 and 2x 7/8-Inch
Compatible With ET 200pro; IM154-1/2 DP
Input Current, Supply 1L+ (max.) 8 A
Input Current, Load 2L+, No Load (max.) 8 A
Width 60 mm
Height 130 mm
Depth 60 mm
Net Weight 0.466 kg
Country of Origin DE

Selection Notes

Pick this M12/7/8-inch variant over the ECOFAST version when the station uses discrete round connectors instead of hybrid cabling; each port type carries both PROFIBUS DP signal and 24 V distribution independently. The 8 A current limit on 1L+ and 2L+ is lower than the ECOFAST Cu module's 10 A, so plan the downstream I/O load budget accordingly.

Technical Details

Short Description
Siemens 6ES7194-4AD00-0AA0 M12/7-8-inch connection module for ET 200pro PROFIBUS DP, 8A max.
Rated Current (Ampere)
8 A
Catalog No
6ES7194-4AD00-0AA0
Delivery Date (Days)
10-15 days
Model Number
6ES7194-4AD00-0AA0
Tariff Code
85176990
