Siemens 6ES7194-2LH20-0AB0 SIMATIC ET 200AL Connecting Cable ET-Connection Angled 2m Remote I/O Accessory

% $-50.65
Siemens 6ES7194-2LH20-0AB0 SIMATIC ET 200AL ET-Connection bus cable angled - 2m 4-pole shielded
Siemens 6ES7194-2LH20-0AB0 SIMATIC ET 200AL ET-Connection bus cable angled - 2m 4-pole shielded

Siemens 6ES7194-2LH20-0AB0 SIMATIC ET 200AL Connecting Cable ET-Connection Angled 2m Remote I/O Accessory

Brand: Siemens
Reference No: 6ES7194-2LH20-0AB0
Catalog No: 6ES7194-2LH20-0AB0
Series: SIMATIC ET 200
Tariff Code (HS): 85444290
Communication: ET-CONNECTION
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$50.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

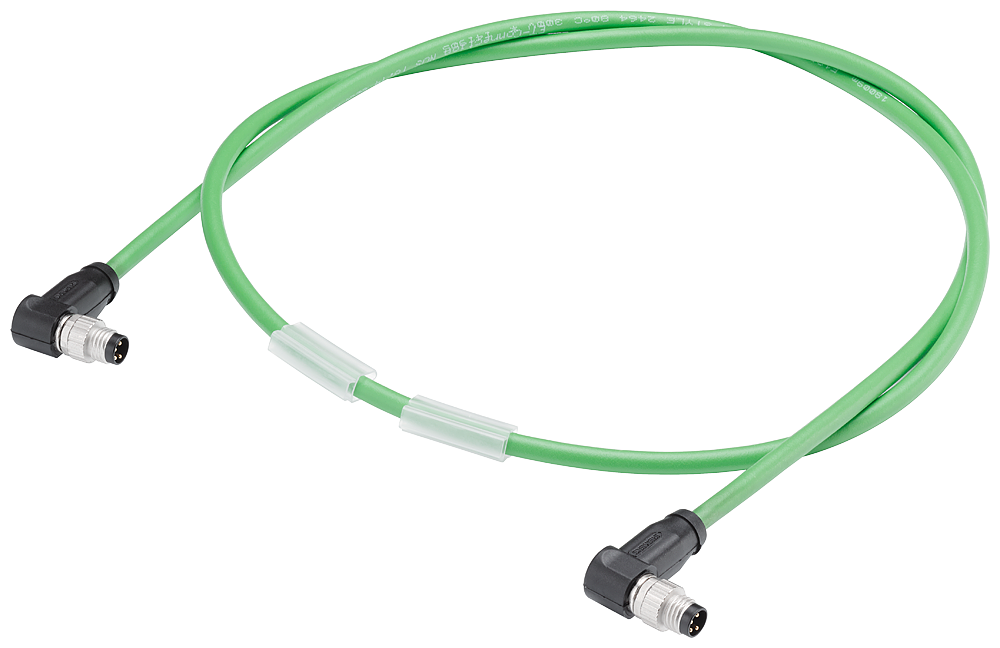

The Siemens 6ES7194-2LH20-0AB0 is a shielded ET-Connection bus cable that links SIMATIC ET 200AL nodes over a 2 m run. Preassembled at both ends with 90-degree angled 4-pin M8 plugs, it carries the two shielded data cores between stations at the IP65/67 protection rating the ET 200AL line uses. The angled outlet keeps the connector clear of tightly stacked enclosure walls.

Technical Specifications

SKU 6ES7194-2LH20-0AB0
Brand Siemens
Series SIMATIC ET 200AL
EAN 4047623403180
Product Type Designation Bus cable
Product Description Flexible 4-core cable, preassembled at both ends with 2x M8 plugs, angled, 4-pin, shielded
Suitability for Use For connecting ET-CONNECTION nodes (e.g. SIMATIC ET 200AL) in degree of protection IP65/67
IP Degree of Protection IP65/67
Cable Designation 2Y(ST)CY 1x4x0.5/1.0-100-GN
Design of Shield Overlapped aluminum-clad foil, sheathed in a braid of tin-plated copper wires
Cable Length 2 m
Number of Electrical Cores 4
Outer Diameter of Inner Conductor 0.5 mm
Outer Diameter of Core Insulation 1 mm
Outer Diameter of Cable Sheath 5 mm
Number of Bending Cycles 1,000,000 (100 mm bending radius, 4 m/s, 4 m/s²)
Permissible Bending Radius, Single Bend, Min. 20 mm
Permissible Bending Radius, Multiple Bends, Min. 40 mm
Bending Radius for Continuous Bending 100 mm
Color of Cable Sheath Green
Color of Core Insulation White / yellow / blue / orange
Weight per Length 34 kg/km
Outgoing Feeder Type 90 degree cable outlet
Material of Cable Sheath PVC
Material of Core Insulation PE
Silicone-Free Yes
Ambient Temperature during Assembly -30 °C to 80 °C
Ambient Temperature during Storage/Transport -40 °C to 80 °C
Net Weight 0.103 kg
Country of Origin CZ

Selection Notes

Pick this angled-connector version when the ET-CONNECTION nodes are mounted close together and a straight 180-degree cable exit would foul the neighboring module; the 90-degree outlet keeps the plug flush against the rail. The shielded twisted construction (2Y(ST)CY) protects the bus signal over the full 2 m run, and the IP65/67 rating matches the ET 200AL station enclosure. For in-line runs with clearance behind the port, the straight variant in this line is the simpler choice.

Technical Details

Short Description
Siemens 6ES7194-2LH20-0AB0 - shielded ET-Connection bus cable, angled, 4-pole, 2 m, IP65/67
Protection Type
IP65/67
Catalog No
6ES7194-2LH20-0AB0
Delivery Date (Days)
10-15 days
Model Number
6ES7194-2LH20-0AB0
Tariff Code
85444290
