Siemens 6ES7194-2LH03-1AB0 SIMATIC ET 200AL Power Cable M8 Angled 4-Pole 0.3m Remote I/O Accessory

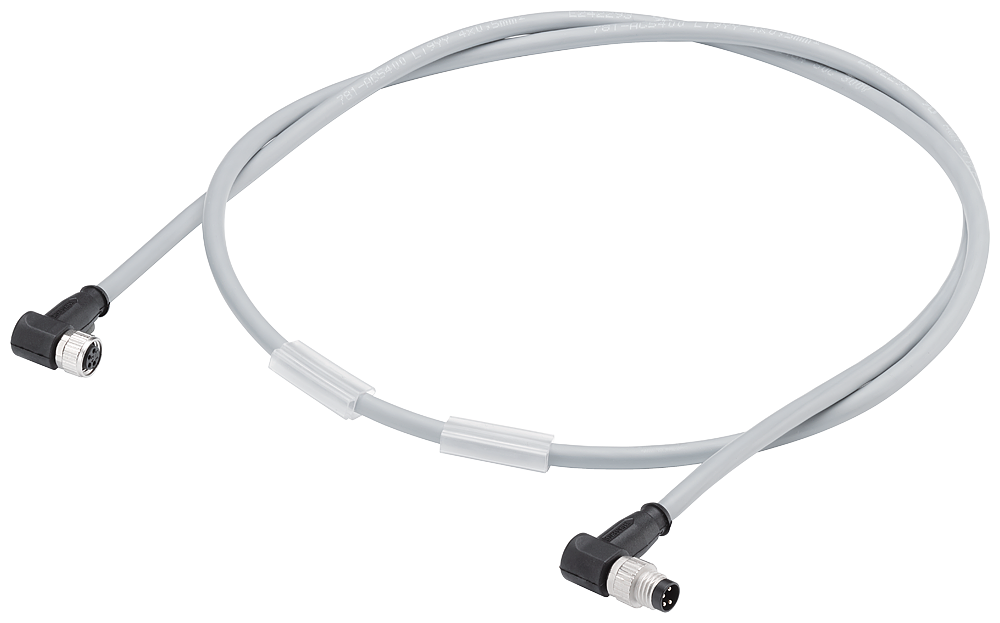

The Siemens 6ES7194-2LH03-1AB0 is a preassembled M8 power cable for the SIMATIC ET 200AL remote I/O system, supplying 24 V DC to the node. Both ends carry a 4-pin M8 connector and socket in a 90-degree angled outlet, and the 0.3 m length suits tight cabinet-to-node runs where a straight cable would not fit. IP65/67 sealing lets it run in wash-down or outdoor enclosures.

Technical Specifications

Selection Notes

Choose this angled-connector version when the node sits close enough to its supply point that a straight-exit cable would foul the enclosure wall or a neighboring module; the 90-degree outlet routes the cable flat against the mounting plane instead of projecting outward. At 0.3 m it is meant for adjacent-cabinet or same-panel runs — for longer distances between the supply and the ET 200AL station, the longer variants in this line apply. The 4-pole M8 connector and IP65/67 rating match the ET 200AL station's own ingress protection, so no extra gland or junction box is needed at either end.
