Siemens 6ES7194-2AA00-0AA0 ET 200AL M8 Power Connector 4-Pole Male IP65/67 Remote I/O Accessory

% $-23.77

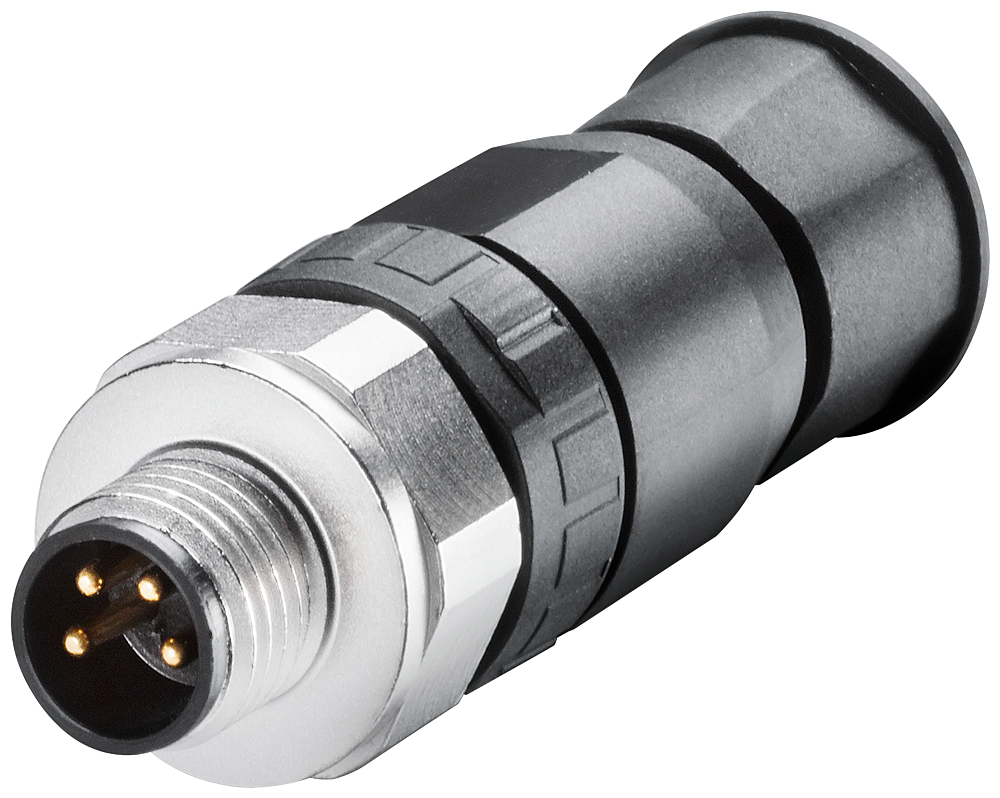

Siemens 6ES7194-2AA00-0AA0 M8 Power Connector Remote I/O Accessory - male insert, IP65/67
Siemens 6ES7194-2AA00-0AA0 M8 Power Connector Remote I/O Accessory - male insert, IP65/67

Siemens 6ES7194-2AA00-0AA0 ET 200AL M8 Power Connector 4-Pole Male IP65/67 Remote I/O Accessory

Brand: Siemens
Reference No: 6ES7194-2AA00-0AA0
Catalog No: 6ES7194-2AA00-0AA0
Series: SIMATIC ET 200
Tariff Code (HS): 85366990
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$23.77

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7194-2AA00-0AA0 is a 4-pole M8 power connector with a male contact insert for wiring the 24 V DC supply into SIMATIC ET 200AL remote I/O stations. Its plastic housing is rated IP65/67, accepts screw-terminated conductors from 0.14 to 0.5 mm2, and fits cable diameters from 4 to 5.5 mm.

Technical Specifications

SKU 6ES7194-2AA00-0AA0
Brand Siemens
Series SIMATIC ET 200AL
EAN 4047623403081
Product type designation Power connector
Product description M8 plug connector with high degree of protection, 4-pin, plastic version
Suitability for use For connection to ET 200AL for 24 V DC power supply
IP degree of protection IP65/67
Ambient temperature during assembly -30 to 85 degC
Ambient temperature during storage/transportation -40 to 85 degC
Connector type M8, 4-pole
Type of electrical connection Screw terminals
Connectable cable cross-section 0.14-0.5 mm2
Connectable conductor cross-section (AWG) 26-20
Suitable cable diameter 4-5.5 mm
Outgoing feeder type 180 degree cable outlet
Material of housing Plastic
Width 14 mm
Depth 47 mm
Weight, approx. 15 g

Selection Notes

This is the male contact insert; it mates with the socket-insert connector on the other side of the 24 V DC feed into an ET 200AL station. The plastic housing keeps the part light for standard machine-floor mounting, while the metal-housed ET-CONNECTION connectors cover the shielded data line on the same stations.

Technical Details

Short Description
Siemens M8 power connector, male insert, 4-pole, plastic, IP65/67, for ET 200AL 24V DC supply wiring.
Protection Type
IP65/67
Catalog No
6ES7194-2AA00-0AA0
Delivery Date (Days)
10-15 days
Model Number
6ES7194-2AA00-0AA0
Tariff Code
85366990
