Siemens 6ES7132-6BF01-0CA0 SIMATIC ET 200SP DQ 8x24VDC/0.5A HF Digital Output Module

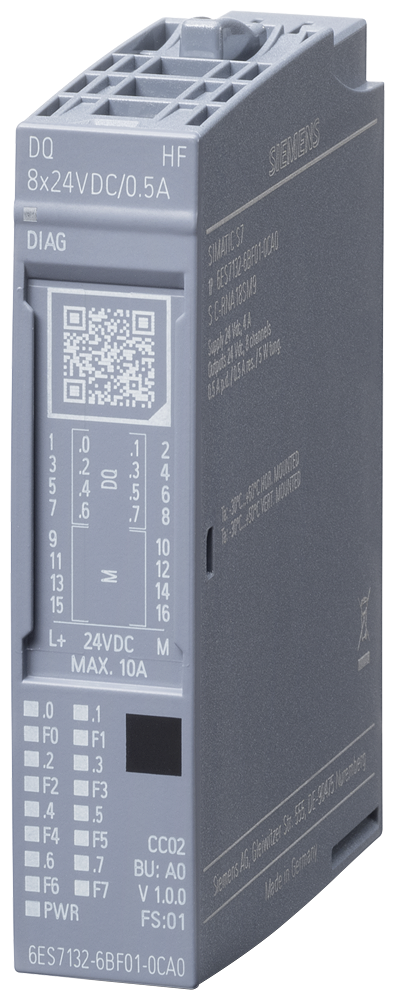

The Siemens 6ES7132-6BF01-0CA0 is a SIMATIC ET 200SP digital output module with 8 sourcing (PNP) channels rated 24V DC / 0.5A each, mounted on BU type A0. It provides electronic short-circuit protection, channel-level wire-break and short-circuit diagnostics, and supports isochronous mode down to a 500 microsecond bus cycle time for distributed I/O stations requiring tight synchronization.

Technical Specifications

Selection Notes

The HF designation distinguishes this module from the standard-feature ET 200SP DQ variant: it adds channel-by-channel diagnostics for wire break, short-circuit to ground, and short-circuit to L+, plus a parameterizable response threshold (0.7 to 1.3 A) for short-circuit detection. Two outputs can be paralleled for redundant control of a single load, and the module supports safety-related tripping of standard modules up to PL d / Cat. 3 / SIL 2 when combined with a fail-safe CPU. Pick this HF variant over the standard version when per-channel fault visibility is needed for troubleshooting distributed I/O stations; the 4 A per-module current budget across 8 channels caps total connected load.

Applications

Used for switching 24V DC loads — solenoid valves, indicator lamps, small contactors — from an ET 200SP distributed I/O station, in machine building and process automation cells where per-channel diagnostics simplify fault-finding on distributed racks.
