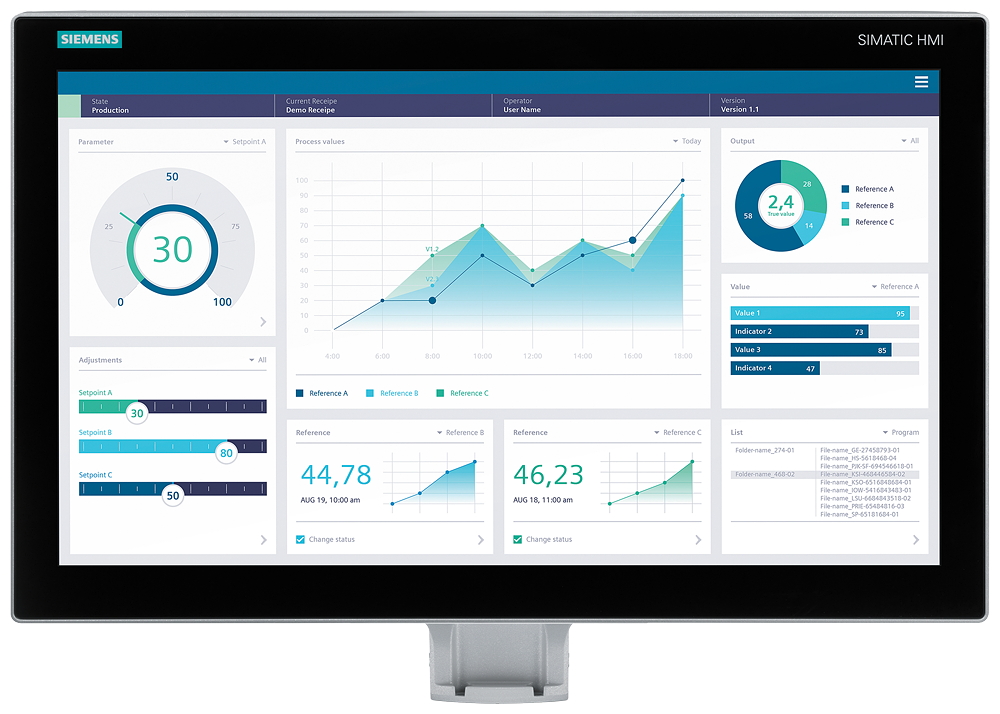

Siemens 6AV2128-3XB27-1BX0 MTP2200 Unified Comfort PRO Pedestal 21.5-inch HMI Operator Panel

% $-6,630.36
Siemens 6AV2128-3XB27-1BX0 MTP2200 Unified Comfort PRO 21.5-inch HMI Operator Panel
Siemens 6AV2128-3XB27-1BX0 MTP2200 Unified Comfort PRO 21.5-inch HMI Operator Panel

Siemens 6AV2128-3XB27-1BX0 MTP2200 Unified Comfort PRO Pedestal 21.5-inch HMI Operator Panel

Brand: Siemens
Reference No: 6AV2128-3XB27-1BX0
Catalog No: 6AV2128-3XB27-1BX0
Series: SIMATIC HMI MTP2200
Tariff Code (HS): 85371091
Rated Current: 1 A
Rated Voltage: 24 V
Communication: PROFINET, industrial Ethernet (2 ports + independent port), RS 422/485, USB 3.1 Gen. 1 (4x Type A)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$6,630.36

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6AV2128-3XB27-1BX0 is an MTP2200 Unified Comfort PRO HMI operator panel mounted on an expandable pedestal with a flange at the bottom, featuring a 21.5-inch widescreen TFT touchscreen at 1920 x 1080 resolution and 16.7 million colors. It runs on 24V DC, communicates over PROFINET through two industrial Ethernet ports, and carries an IP65 rating front and rear.

Technical Specifications

SKU 6AV2128-3XB27-1BX0
Brand Siemens
Series SIMATIC HMI MTP2200
Product Type Designation MTP2200 Unified Comfort PRO
Display 21.5-inch TFT, 476 x 267.8 mm
Resolution 1920 x 1080 pixels
Colors 16,777,216
Touch Operation Multi-touch screen
Backlight MTBF (at 25°C) 30,000 h
Mounting Pedestal, expandable, flange at bottom
Mounting Position Vertical, max. 35° tilt without external ventilation
Supply Voltage 24V DC (19.2-28.8V DC range)
Current Consumption 1 A rated, 1.5 A max.
Active Power Input (typ.) 24 W
Processor X86
Industrial Ethernet Interfaces 2 (2-port switch + independent port)
RS 485 Interface 1 (combined RS 422/485)
USB Interfaces 4 (USB 3.1 Gen. 1, Type A)
SD Card Slots 2
Protocols PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP
Media Redundancy MRP
Degree of Protection IP65 front, IP65 rear
NEMA Rating (front) Type 4, 4X, 12
Operating Temperature (vertical mount) 0 to 45°C
Storage/Transport Temperature -20 to 60°C
Relative Humidity max. 90%, no condensation
Online/Runtime Languages 32
Project Languages 32
Alarm Classes 32
Bit Messages 9,000
Analog Messages 300
Variables per Device 8,000
Variables per Screen 800
Net Weight 9.82 kg
EAN 4047623413622

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • FM
  • RCM
  • KC
  • EAC
  • CCC

Selection Notes

The expandable pedestal with a bottom flange on the 6AV2128-3XB27-1BX0 suits floor- or stand-mounted installations for the larger 21.5-inch MTP2200 screen where the panel needs a rigid base rather than a wall or arm mount. Its 1A rated current draw and 24W typical input power keep cabinet power sizing modest despite the bigger display. Where a support-arm mount is preferred over a pedestal, an arm-mounted version covers that installation instead.

Technical Details

Short Description
Siemens MTP2200 Unified Comfort PRO, 21.5-inch multi-touch HMI panel, PROFINET, IP65, 24V DC, expandable pedestal mount.
Rated Current (Ampere)
1 A
Rated Voltage (VAC)
24 V
Mounting Type
Pedestal, expandable, flange at bottom
Protection Type
IP65 front, IP65 rear
Catalog No
6AV2128-3XB27-1BX0
Standards
CE mark, UKCA mark, cULus, FM approval, RCM (formerly C-TICK), KC approval, EAC (formerly Gost-R), CCC
Delivery Date (Days)
10-15 days
Model Number
6AV2128-3XB27-1BX0
Tariff Code
85371091
