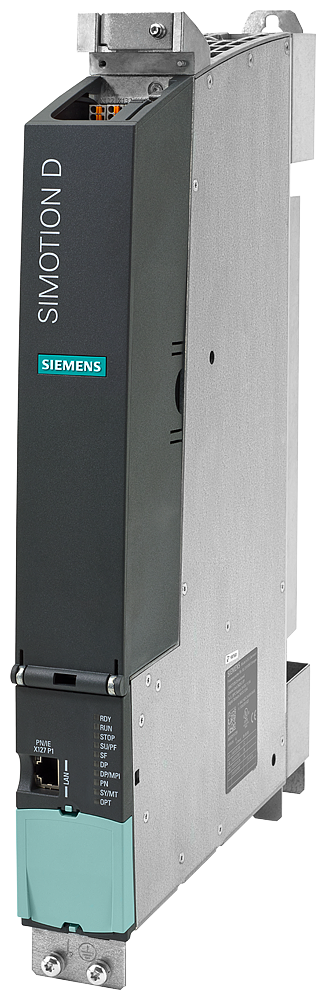

Siemens 6AU1455-2AD00-0AA0 SIMOTION D455-2 DP/PN Motion Controller 128 Axes

The Siemens 6AU1455-2AD00-0AA0 is a SIMOTION D455-2 DP/PN drive-based motion controller with ULTRA-HIGH class, supporting up to 128 axes in a multi-axis system. Listed as a spare part, it integrates 12 digital inputs, 16 configurable digital I/Os, 6 DRIVE-CLiQ ports, 2 PROFIBUS and 1 PROFINET interface (3 onboard ports), plus 388 Mbyte of RAM work memory.

Technical Specifications

Selection Notes

The DP/PN designation reflects the built-in PROFIBUS DP and PROFINET interfaces, letting the controller act as fieldbus master on both networks without an add-on module. Its ULTRA-HIGH class raises the axis ceiling to 128 and adds a 0.125 ms minimum servo cycle option (with ET 200SP, SCOUT TIA V4.5 or higher, and SERVO-FAST), well above the axis count available on this family's STANDARD-performance variant. The 388 Mbyte RAM work memory and 46 W typical power loss are both roughly triple the STANDARD unit's figures, reflecting the extra processing headroom needed for large multi-axis programs. This part is listed as a spare part, so confirm current SIMOTION Kernel and runtime compatibility before replacing an in-service D455-2.
