Siemens 5SV8705-0KK 5SV8 500A Residual Current Device

% $-508.67
Siemens 5SV8705-0KK Residual Current Device
Siemens 5SV8705-0KK Residual Current Device

Siemens 5SV8705-0KK 5SV8 500A Residual Current Device

Brand: Siemens
Reference No: 5SV8705-0KK
Catalog No: 5SV8705-0KK
Series: 5SV8
Rated Current: 500A
Stock: 82
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$508.67

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

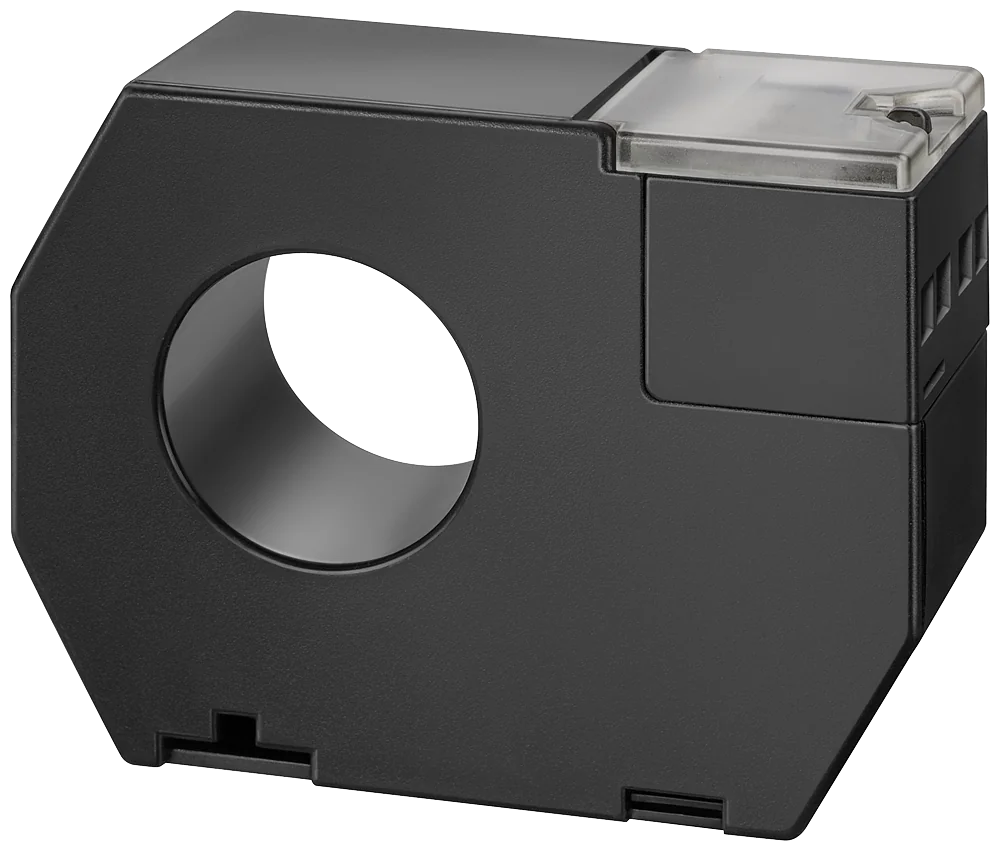

The Siemens 5SV8705-0KK is a summation current transformer from the SENTRON/SIRIUS 5SV8 series. Summation current transformer 140 mm. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU 5SV8705-0KK
Brand Siemens
Series 5SV8
Product Type Residual Current Device
Product brand name SENTRON
Product designation summation current transformer
Design of the product type A
Residual current (Idn) minimum 300 mA
Internal diameter of summation current transformer 140 mm
Wire length maximum 10 m
Protection class IP at connection all terminals IP20
Type of voltage of the operating voltage for actuation AC
Surge voltage resistance rated value 4 kV
Maximum 720 V
Minimum 50 Hz
Operational current rated value 500 A
At AC at 50 Hz rated value maximum 720 V
At AC at 60 Hz rated value maximum 720 V
Suitability for use for AC power system
Product function error memory No
Type of connectable conductor cross-sections 0.13 mm² – 2.1 mm²
Type of electrical connection screw terminal
Weight 1.081 kg
Country of Origin ES

Applications & Use Cases

The Siemens 5SV8705-0KK is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 5SV8 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)
500A
Catalog No
5SV8705-0KK
Delivery Date (Days)
1-2 days
Model Number
5SV8
