Siemens 4RB8400-3EA20 4RB8 400V Power Supply

Name: Siemens 4RB8400-3EA20 4RB8 400V Power Supply
Brand: Siemens
SKU: 4RB8400-3EA20
Price: 360.3 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 4RB8400-3EA20

Catalog No: 4RB8400-3EA20

Series: 4RB8

Rated Voltage: 400V

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$360.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

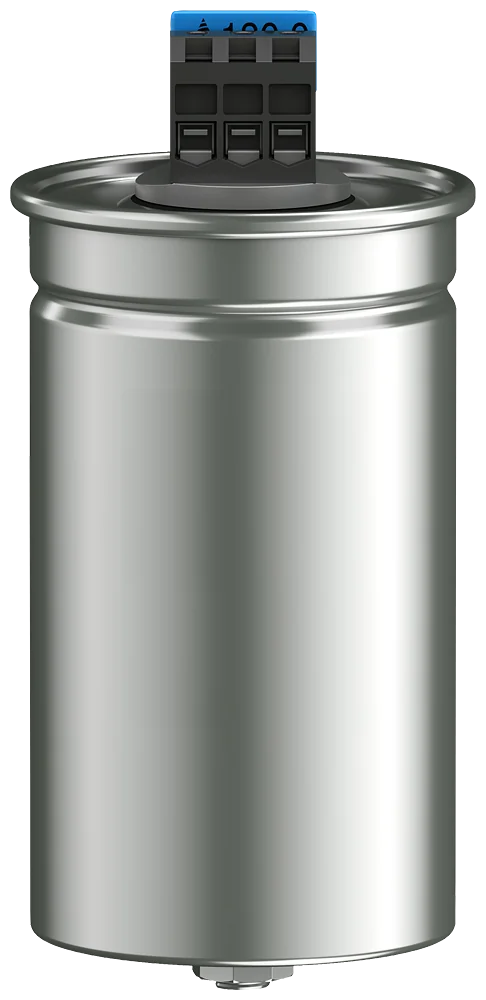

The Siemens 4RB8400-3EA20 is a power supply from the SENTRON/SIRIUS 4RB8 series. POWER CAPACITOR PhaseCap Energy+ MKK 400V 40,0KVAR 3-phase. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	4RB8400-3EA20
Brand	Siemens
Series	4RB8
Product Type	Power Supply
Type of internal interconnection	D (Delta)
Type of certification	CE, UKCA
Type of enclosure material	Extruded round aliuminum can with stud
Type of mechanical safety	Overpressure disconnector (3-phase)
Standard	IEC 60831-1 / -2
Capacitor voltage (rms value) rated value	400 V
Operating frequency 1 rated value	50 Hz
Operating frequency 2 rated value	60 Hz
Capacity rated value	265.2 µF
Relative negative tolerance of the capacity rated value	5 %
Relative positive tolerance of the capacity rated value	5 %
Reactive power of the capacitor at 50 Hz rated value	40 kvar
Reactive power of the capacitor at 60 Hz rated value	48 kvar
Clearance minimum	9.6 mm
Creepage distance minimum	12.7 mm
Type of dielectric	Self-healing metallized polypropylene film
Filler	filled with Non PCB, Soft biodegradable resin
Safety features of the integrated discharge resistors	Discharge time ≤ 180 s to 75 V or less for safe discharging
Weight	4.215 kg
Country of Origin	IN

Certifications & Standards

IEC 60831-1

Applications & Use Cases

The Siemens 4RB8400-3EA20 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 4RB8 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Voltage (VAC)

400V

Catalog No

4RB8400-3EA20

Standards

IEC 60831-1

Delivery Date (Days)

1-2 days

Model Number

4RB8
