Siemens 4RB8083-3FC10 4RB8 525V Power Supply

Name: Siemens 4RB8083-3FC10 4RB8 525V Power Supply
Brand: Siemens
SKU: 4RB8083-3FC10
Price: 76.59 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 4RB8083-3FC10

Catalog No: 4RB8083-3FC10

Series: 4RB8

Rated Voltage: 525V

Stock: 39

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$76.59

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

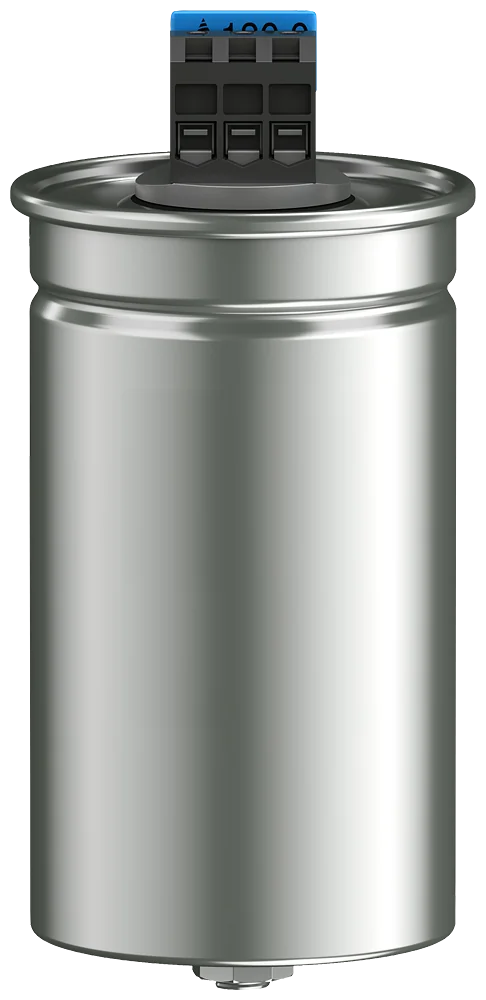

The Siemens 4RB8083-3FC10 is a power supply from the SENTRON/SIRIUS 4RB8 series. POWER CAPACITOR PhaseCap Energy+ MKK 525V 8,3KVAR 3-phase. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	4RB8083-3FC10
Brand	Siemens
Series	4RB8
Product Type	Power Supply
Type of internal interconnection	D (Delta)
Type of certification	CE, UKCA, UL Recognized Component
Type of enclosure material	Extruded round aliuminum can with stud
Type of mechanical safety	Overpressure disconnector (3-phase)
Standard	IEC 60831-1 / -2, UL 810 5th edition
Capacitor voltage (rms value) rated value	525 V
Operating frequency 1 rated value	50 Hz
Operating frequency 2 rated value	60 Hz
Capacity rated value	31.9 µF
Relative negative tolerance of the capacity rated value	5 %
Relative positive tolerance of the capacity rated value	5 %
Reactive power of the capacitor at 50 Hz rated value	8.33 kvar
Reactive power of the capacitor at 60 Hz rated value	9.996 kvar
Clearance minimum	9.6 mm
Creepage distance minimum	12.7 mm
Type of dielectric	Self-healing metallized polypropylene film
Filler	Dry type, non PCB, filled with non-flammable nitrogen gas
Safety features of the integrated discharge resistors	Discharge time ≤ 180 s to 75 V or less for safe discharging
Weight	0.8 kg
Country of Origin	IN

Certifications & Standards

IEC 60831-1
UL 810

Applications & Use Cases

The Siemens 4RB8083-3FC10 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 4RB8 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Voltage (VAC)

525V

Catalog No

4RB8083-3FC10

Standards

IEC 60831-1, UL 810

Delivery Date (Days)

1-2 days

Model Number

4RB8
