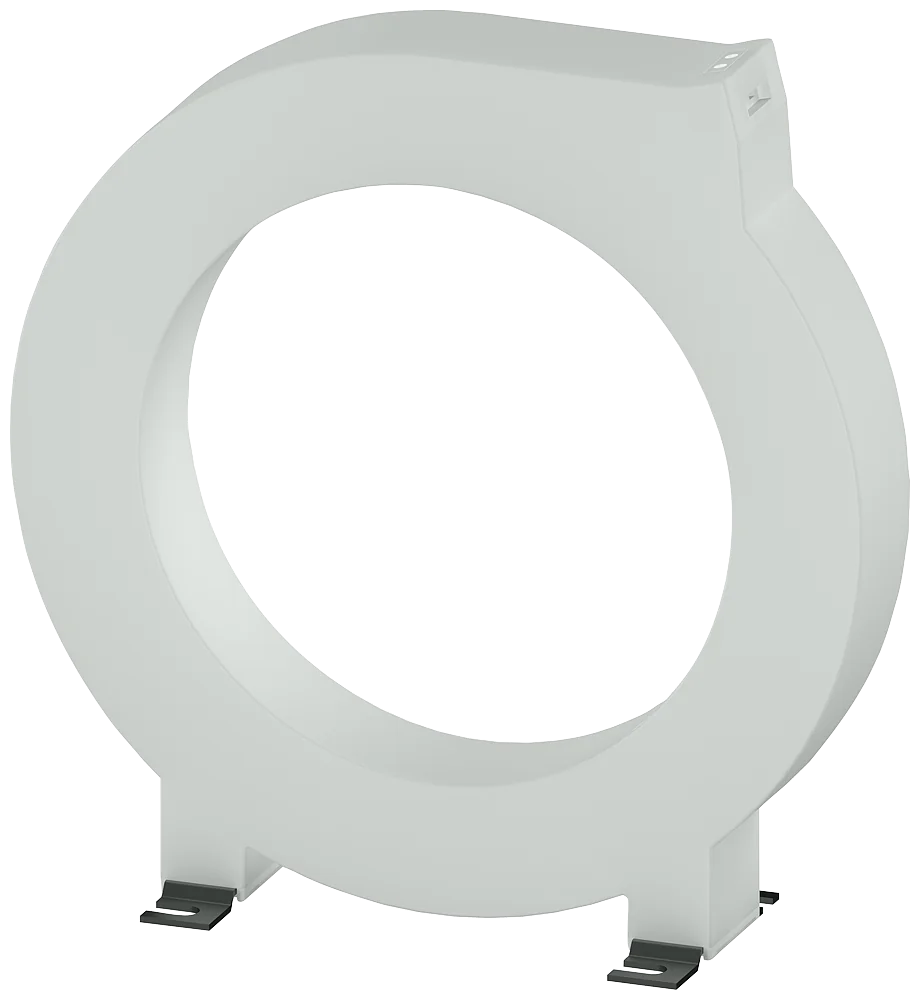

Siemens 3UL2306-1A Residual Current Device

Siemens 3UL2306-1A 3UL2 Residual Current Device

Name: Siemens 3UL2306-1A 3UL2 Residual Current Device
Brand: Siemens
SKU: 3UL2306-1A
Price: 311.79 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3UL2306-1A

Catalog No: 3UL2306-1A

Series: 3UL2

Stock: 71

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$311.79

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 3UL2306-1A is a residual-current transformers from the SENTRON/SIRIUS 3UL2 series. Residual-current transformer for residual current monitoring Bushing opening 140 mm Residual current 30 mA...40 A. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3UL2306-1A
Brand	Siemens
Series	3UL2
Product Type	Residual Current Device
Product brand name	SIRIUS
Product designation	Residual-current transformers
Product feature touch protection	Yes
Type of electrical connection at output	screw-type terminals
Operating voltage rated value maximum	690 V
Continuous current per phase maximum	500 A
Fault current at input rated value	40 A
Surge voltage resistance rated value	6 kV
Solid	1x (0.5 ... 2.5 mm²)
With core end processing	1x (0.5 ... 1.5 mm²)
During transport	-25 ... +60 °C
During operation	-25 ... +60 °C
During storage	-40 ... +85 °C
Relative humidity during operation	95 %
Installation altitude at height above sea level	2 000 m
Diameter of inlet opening	140 mm
Width	201 mm
Height	64 mm
Weight	0.795 kg
Country of Origin	ES

Applications & Use Cases

The Siemens 3UL2306-1A is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UL2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
