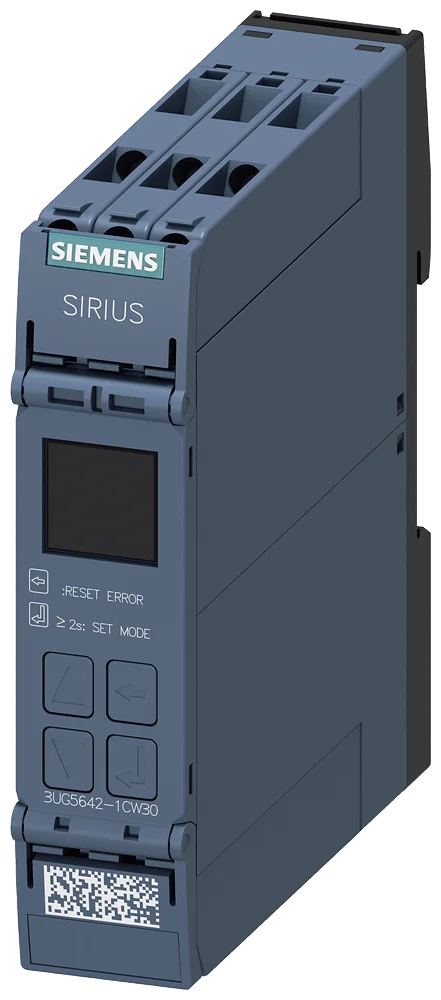

Siemens 3UG5642-1CW30 3UG5 10A 1P 690V Relay

Name: Siemens 3UG5642-1CW30 3UG5 10A 1P 690V Relay
Brand: Siemens
SKU: 3UG5642-1CW30
Price: 173.34 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3UG5642-1CW30

Catalog No: 3UG5642-1CW30

Series: 3UG5

Rated Current: 10A

Rated Voltage: 690V

Poles: 1

Stock: 18

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$173.34

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 3UG5642-1CW30 is a relay from the SENTRON/SIRIUS 3UG5 series. Digital monitoring relay current, active current, voltage, cos-phi and performance monitoring up to 690 V AC/DC up to 10 A supply voltage 24 ... 240 V AC/DC, 50 .. 60 Hz ON delay and tripping delay 0.1..999.9 s 2 changeover contacts screw terminal. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3UG5642-1CW30
Brand	Siemens
Series	3UG5
Product Type	Relay
Product function	digitally adjustable monitoring relay for electrical variables
Design of the display	LCD
Power loss [W] maximum	2 W
Power loss [V∙A] maximum	5 VA
With degree of pollution 2 rated value	690 V
With degree of pollution 3 rated value	690 V
Degree of pollution	3
Surge voltage resistance rated value	6 kV
Shock resistance according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
Vibration resistance according to IEC 60068-2-6	f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles
Mechanical service life (operating cycles) typical	10 000 000
Relative repeat accuracy	1 %
Net Weight	0.188 kg
Phase sequence recognition	No
Phase failure detection	No
Asymmetry detection	No
Voltage monitoring	Yes
Current monitoring	Yes
Weight	0.188 kg
Country of Origin	DE

Applications & Use Cases

The Siemens 3UG5642-1CW30 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UG5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)

10A

Rated Voltage (VAC)

690V

Catalog No

3UG5642-1CW30

Number of Poles

Delivery Date (Days)

1-2 days

Model Number

3UG5
