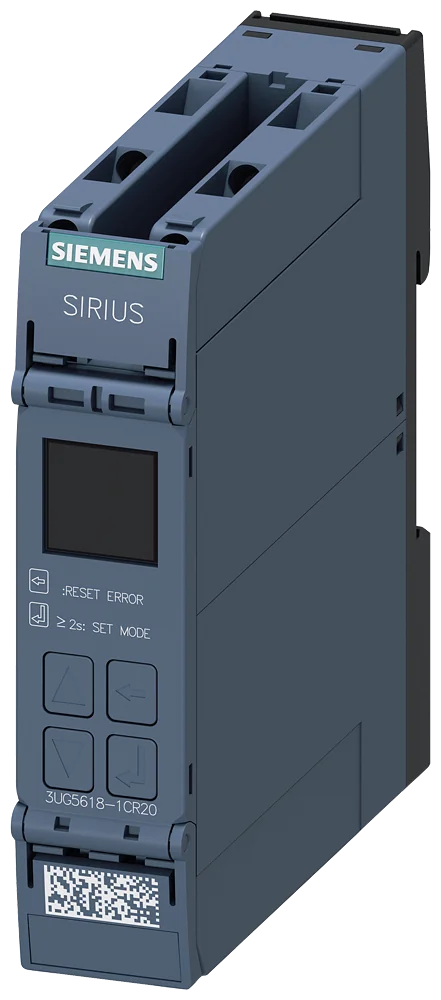

Siemens 3UG5618-1CR20 3UG5 4P 690V Relay

Name: Siemens 3UG5618-1CR20 3UG5 4P 690V Relay
Brand: Siemens
SKU: 3UG5618-1CR20
Price: 201.56 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3UG5618-1CR20

Catalog No: 3UG5618-1CR20

Series: 3UG5

Rated Voltage: 690V

Poles: 4

Stock: 11

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$201.56

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 3UG5618-1CR20 is a relay from the SENTRON/SIRIUS 3UG5 series. Digitally adjustable monitoring relay phase failure, phase sequence, asymmetry, frequency, overvoltage and undervoltage monitoring, with/without N conductor with phase sequence correction 3x 90-690 V AC, 15-70 Hz 2 changeover contacts screw terminal. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3UG5618-1CR20
Brand	Siemens
Series	3UG5
Product Type	Relay
Product function	line monitoring
Display version LED	No
Design of the display	LCD
Power loss [W] maximum	2 W
Power loss [V∙A] maximum	5.1 VA
With degree of pollution 2 rated value	690 V
With degree of pollution 3 rated value	690 V
Degree of pollution	3
For monitoring	AC
Of the operating voltage for actuation	AC/DC
Surge voltage resistance rated value	6 kV
Shock resistance according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
Vibration resistance according to IEC 60068-2-6	10 ... 55 Hz: 0.35 mm
Switching behavior	monostable
Mechanical service life (operating cycles) typical	10 000 000
Adjustable OFF-delay time	0.1 ... 30 s
Relative repeat accuracy	0 %
Net Weight	0.175 kg
Weight	0.175 kg
Country of Origin	DE

Applications & Use Cases

The Siemens 3UG5618-1CR20 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UG5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Voltage (VAC)

690V

Catalog No

3UG5618-1CR20

Number of Poles

Delivery Date (Days)

1-2 days

Model Number

3UG5
