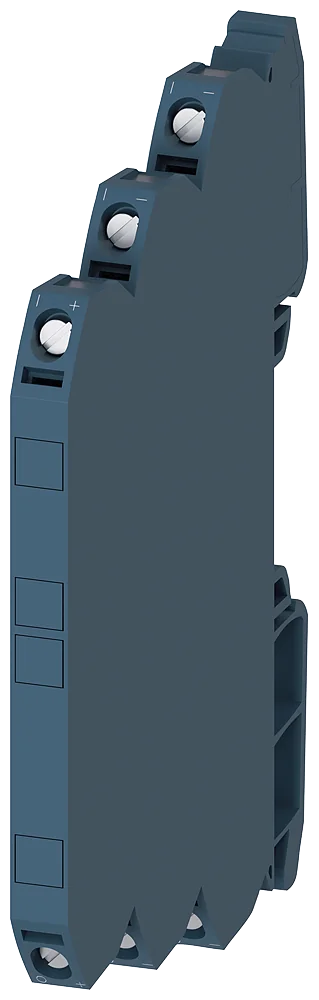

Siemens 3RS7020-1ET00 3RS7 Relay

Name: Siemens 3RS7020-1ET00 3RS7 Relay
Brand: Siemens
SKU: 3RS7020-1ET00
Price: 161.12 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3RS7020-1ET00

Catalog No: 3RS7020-1ET00

Series: 3RS7

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$161.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 3RS7020-1ET00 is a relay from the SENTRON/SIRIUS 3RS7 series. Separation amplifier Loop power isolator, 1-channel input: 4-20 mA output: 4-20 mA Width 6.2 mm screw terminal. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3RS7020-1ET00
Brand	Siemens
Series	3RS7
Product Type	Relay
Display version LED	No
Number of channels	1
Voltage drop at operating equipment	4.1 V
Surge voltage resistance rated value	1 500 V
Shock resistance according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
Vibration resistance according to IEC 60068-2-6	6 ... 150 Hz: 2 g
Net Weight	0.045 kg
Relative metering precision	0.1 %
Temperature drift per °C	0.015 %/°C
Voltage ripple maximum	5 mV
Settling time for 1 % deviation	6 ms
Input voltage maximum	30 V
Property of the output short-circuit proof	No
Type of signal at input	4 ... 20 mA
Type of signal at output	4 ... 20 mA
Input impedance of current input maximum	100 Ω
At the current output maximum	1 000 Ω
Influence of the output load on measuring accuracy	0.06 %/100 Ω
Weight	0.045 kg
Country of Origin	DE

Applications & Use Cases

The Siemens 3RS7020-1ET00 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RS7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
