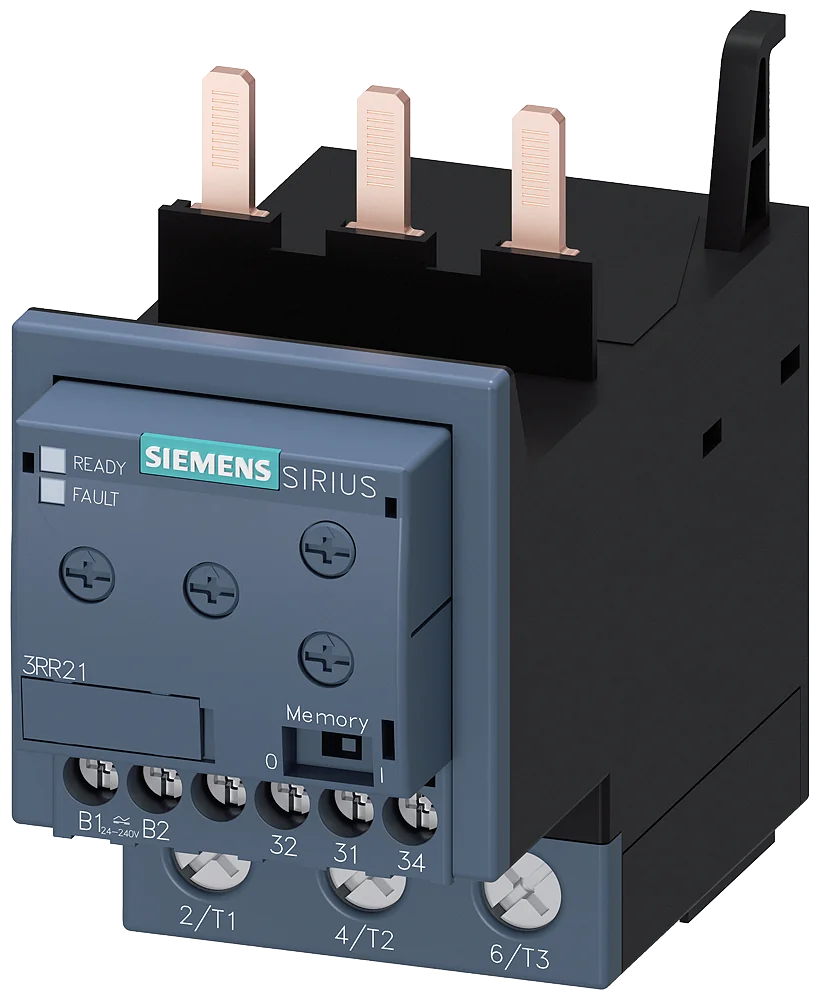

Siemens 3RR2143-1AW30 3RR2 8...80A 240V Relay

Name: Siemens 3RR2143-1AW30 3RR2 8...80A 240V Relay
Brand: Siemens
SKU: 3RR2143-1AW30
Price: 237.18 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3RR2143-1AW30

Catalog No: 3RR2143-1AW30

Series: 3RR2

Rated Current: 8...80A

Rated Voltage: 240V

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$237.18

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 3RR2143-1AW30 is a relay from the SENTRON/SIRIUS 3RR2 series. Monitoring relay, can be mounted to Contactor 3RT2, Size S2 basic, analog adjustment Apparent current monitoring 8...80 A, 50...60 Hz, 2-phase Supply 24-240 V AC/DC 1 change-over contact Monitoring for Current overshoot and undershoot Phase failure, Cable break with or without fault buffer ON delay 0-60 s Noise pulse suppression 0-30 s Switching hysteresis 6% Screw connection system. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3RR2143-1AW30
Brand	Siemens
Series	3RR2
Product Type	Relay
Size of contactor can be combined company-specific	S2
Operating apparent power rated value	4 VA
With degree of pollution 3 rated value	690 V
Type of voltage of the operating voltage for actuation	AC/DC
Surge voltage resistance rated value	6 kV
At 24 V	90 mA
At 240 V	12 mA
On the front	IP20
Of the terminal	IP00
Shock resistance	10 g / 11 ms
Vibration resistance	10 ... 55 Hz / 0.35 mm
Mechanical service life (operating cycles) typical	10 000 000
Relative repeat accuracy	2 %
Net Weight	242 g
At 50 Hz rated value	24 ... 240 V
At 60 Hz rated value	24 ... 240 V
Control supply voltage at DC rated value	24 ... 240 V
Type of voltage of the supply voltage	AC/DC
Weight	0.242 kg
Country of Origin	CZ

Applications & Use Cases

The Siemens 3RR2143-1AW30 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RR2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)

8...80A

Rated Voltage (VAC)

240V

Catalog No

3RR2143-1AW30

Delivery Date (Days)

1-2 days

Model Number

3RR2
