Siemens 3LD9243-1B 3LD9 160A Switch Disconnector

Name: Siemens 3LD9243-1B 3LD9 160A Switch Disconnector
Brand: Siemens
SKU: 3LD9243-1B
Price: 77.63 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3LD9243-1B

Catalog No: 3LD9243-1B

Series: 3LD9

Rated Current: 160A

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$77.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

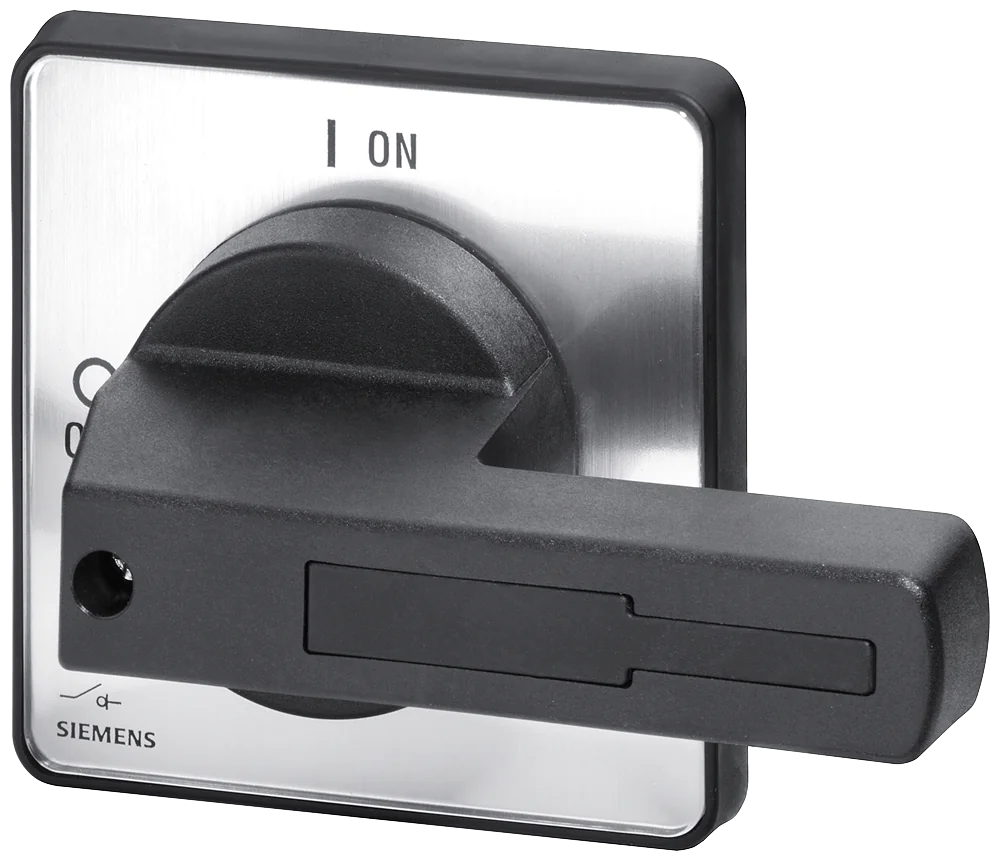

The Siemens 3LD9243-1B is a rotary operators from the SENTRON/SIRIUS 3LD9 series. Rotary operating mechanism, selector switch black, for four-hole front mounting, accessories for main and EMERGENCY-OFF switch 3LD23/24 for 160 A-250 A, 3P and 3P+N, for main and EMERGENCY-OFF switch 3LD5 UL for 100 A-150 A. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3LD9243-1B
Brand	Siemens
Series	3LD9
Product Type	Switch Disconnector
Product brand name	SENTRON
Product designation	Rotary operators
Design of the product	accessories for 3LD23/24 main and EMERGENCY-STOP switches
Degree of protection NEMA rating	1, 3R, 4X, 12
Suitability for use switch disconnector	Yes
Suitability for use circuit breaker	No
Suitability for use EMERGENCY OFF switch	No
Color	black
Of the actuating element	black
Product feature can be locked in ON position	No
Product component with axis	No
Product component restart inhibit function block	No
Product component padlock locking mechanism	No
Product component key lock	No
Product feature can be locked into OFF position	Yes
Number of bracket locks maximum	3
Hasp thickness of the bracket locks	5 ... 7.5 mm
Net Weight	216 g
Weight	0.216 kg
Country of Origin	DE

Applications & Use Cases

The Siemens 3LD9243-1B is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3LD9 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)

160A

Catalog No

3LD9243-1B

Delivery Date (Days)

1-2 days

Model Number

3LD9
