Siemens 1PH8224-1AF30-2BA2 SIMOTICS M-1PH8 142kW 1500rpm 290A IP23 Asynchronous Motor

% $-18,833.10

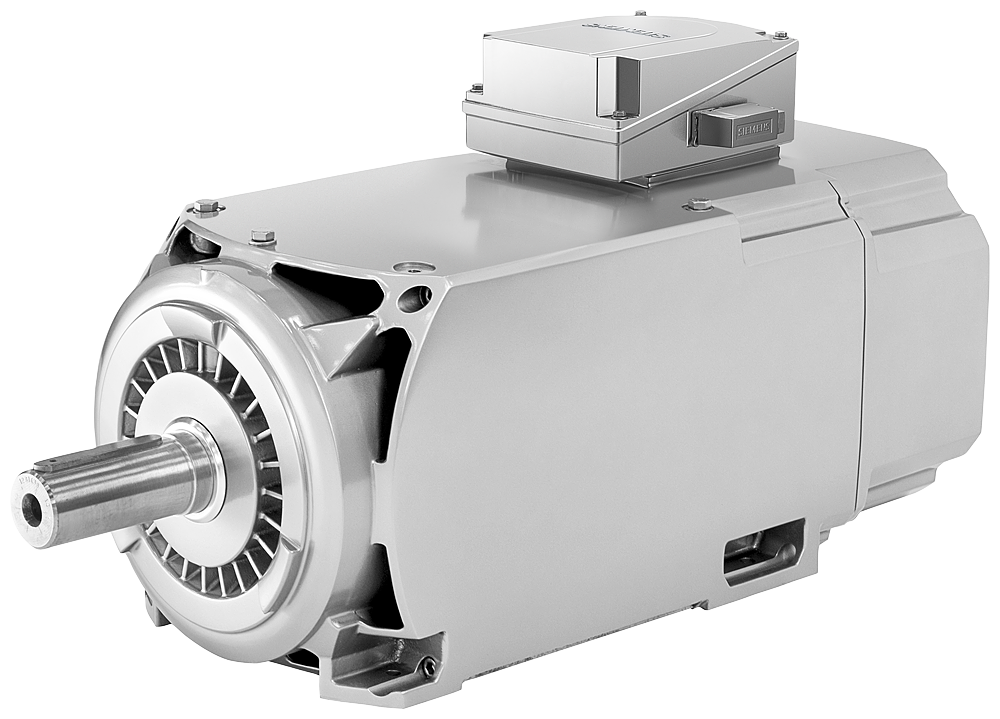

Siemens 1PH8224-1AF30-2BA2 SIMOTICS M-1PH8 asynchronous motor – 142kW IP23
Siemens 1PH8224-1AF30-2BA2 SIMOTICS M-1PH8 asynchronous motor – 142kW IP23

Siemens 1PH8224-1AF30-2BA2 SIMOTICS M-1PH8 142kW 1500rpm 290A IP23 Asynchronous Motor

Brand: Siemens
Reference No: 1PH8224-1AF30-2BA2
Catalog No: 1PH8224-1AF30-2BA2
Series: SIMOTICS M-1PH8
Tariff Code (HS): 85015381
Rated Current: 290 A
Power: 142 kW
Rated Voltage: 340 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$18,833.10

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 1PH8224-1AF30-2BA2 is a SIMOTICS M-1PH8 compact asynchronous motor rated 142 kW (904 Nm, 290 A at 340 V) at 1500 r/min in its base load range, extending to 165 kW at 1750 r/min under alternate load. IP23 protection comes from open-circuit ventilation, with a Pt1000 sensor and no encoder fitted.

Technical Specifications

SKU (MLFB) 1PH8224-1AF30-2BA2
Brand Siemens
Series SIMOTICS M-1PH8
Product designation Compact Asynchronous Motor
Shaft height 225
Rated power / torque / current, 400 V (base load) 142 kW / 904 Nm / 290 A at 1500 r/min, 340 V
Rated power / torque / current, 400 V (alternate load) 165 kW / 900 Nm / 285 A at 1750 r/min, 395 V
Rated power / torque / current, 480 V (base load) 178 kW / 850 Nm / 265 A, 460 V
Rated power / torque / current, 480 V (alternate load) 178 kW / 773 Nm / 250 A, 500 V
Degree of protection IP23
Cooling Open-circuit ventilation, DE→NDE
Temperature sensor Pt1000
Encoder None fitted
Mounting design IM B3 (IMB6, IMB7, IMB8, IMV6)
Color Anthracite, RAL 7016
Thermal time constant 21 min
Moment of inertia 14,800 kg·cm²
Terminal box designation 1XB7700-P02
Min. airflow 0.33 m³/s
Pressure drop 600 Pa
External fan noise 73 dB(A) at 50 Hz
Weight 610 kg
Country of origin CZ

Selection Notes

The 1PH8224-1AF30-2BA2 uses open-circuit ventilation for IP23 protection, holding the continuous rating at 142 kW / 904 Nm at 1500 r/min in the 610 kg, shaft height 225 frame. Its sibling -1AF00-2BA2 carries 95 kW in the same frame under IP55 because the sealed IP55 enclosure restricts airflow, a 47 kW swing between the two. Choose the IP23 version for clean, temperature-controlled installations where the higher continuous rating is worth the reduced ingress protection.

Technical Details

Short Description
Siemens 1PH8224-1AF30-2BA2 SIMOTICS M-1PH8, 142 kW / 290 A, IP23, shaft height 225.
Rated Current (Ampere)
290 A
Rated Voltage (VAC)
340 V
Mounting Type
IM B3 (IMB6, IMB7, IMB8, IMV6)
Protection Type
IP23
Catalog No
1PH8224-1AF30-2BA2
Power (kW)
142 kW
Delivery Date (Days)
10-15 days
Model Number
1PH8224-1AF30-2BA2
Tariff Code
85015381
