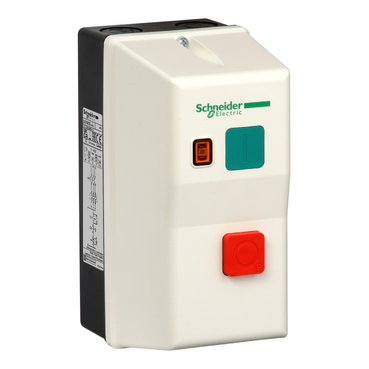

Schneider Electric LE1M35Q714 TeSys LE 3kW 5.5-8A 380V AC Enclosed DOL Starter

The Schneider Electric LE1M35Q714 is a TeSys LE series enclosed direct-on-line (DOL) starter designed for reliable motor control in industrial automation applications. Rated at 3kW output at 380/400V AC 50/60Hz with a thermal overload range of 5.5–8A, this compact unit integrates motor protection and starting functionality in a single enclosed housing. Measuring just 78mm (W) × 160mm (H) × 108mm (D) and weighing 0.6kg, it is ideal for control panel integration where space and weight are critical.

Technical Specifications

Certifications & Standards

• UKCA: Conforms to UK Conformity Assessed requirements for the Great Britain market
• IEC 60947-4-1: Compliant with the international standard for low-voltage switchgear and controlgear — electromechanical contactors and motor starters
• IEC 60529: Tested and rated to the ingress protection classification standard
• RoHS: Restriction of Hazardous Substances compliant
• EU RoHS: Meets European Union RoHS Directive requirements
• China RoHS: Compliant with China's restriction of hazardous substances regulations
• REACH: Compliant with EU REACH regulation on chemicals

Applications & Use Cases

• Direct-on-line starting of three-phase AC motors up to 3kW in industrial environments
• Pump and fan motor control in building services and process automation
• Conveyor and light machinery motor starting in manufacturing facilities
• Control panel integration where a compact, self-contained motor starter is required
• Applications requiring IEC 60947-4-1 compliant motor protection and starting
