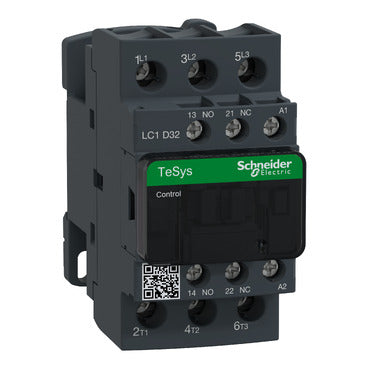

Schneider Electric LC1D32E7 TeSys Deca 3-Pole 32A 480V AC 20HP 100kA SCCR Contactor

The Schneider Electric LC1D32E7 is a TeSys Deca series 3-pole AC contactor rated at 32A and 480V AC, delivering 20HP motor switching capability with a 100kA Short-Circuit Current Rating (SCCR). Designed for demanding industrial motor control and power switching applications, the LC1D32E7 offers robust performance in a compact form factor weighing just 0.375 kg, making it an ideal choice for engineers and panel builders seeking reliable, space-efficient contactors.

Technical Specifications

Applications & Use Cases

• Motor Control: Ideal for starting and stopping 3-phase induction motors up to 20HP at 480V AC in industrial environments.
• Power Switching: Suitable for resistive and inductive load switching in control panels and motor control centers (MCCs).
• Machine Automation: Frequently used in conveyor systems, pumps, fans, compressors, and HVAC equipment requiring reliable switching duty.
• Panel Building: Compact and lightweight design (0.375 kg) simplifies integration into tight enclosures and modular control panel assemblies.

Frequently Asked Questions

What is the rated current of the LC1D32E7?

The LC1D32E7 is rated at 32A, suitable for motor loads up to 20HP at 480V AC.

What does the SCCR rating of 100kA mean?

The 100kA Short-Circuit Current Rating (SCCR) indicates the maximum fault current the contactor can withstand safely, meeting stringent industrial panel requirements under UL508A and NEC standards.

Is the LC1D32E7 suitable for 3-phase motor applications?

Yes. The LC1D32E7 is a 3-pole contactor designed specifically for 3-phase AC motor control and power distribution circuits.

What series does the LC1D32E7 belong to?

It belongs to Schneider Electric's TeSys Deca series, a globally trusted line of industrial contactors known for durability and ease of integration.
