Schneider Electric ZBE101 Harmony XB4 XB5 Contact Block 22 mm 1 NO Screw Clamp Terminal Automation Component

% $-3.09

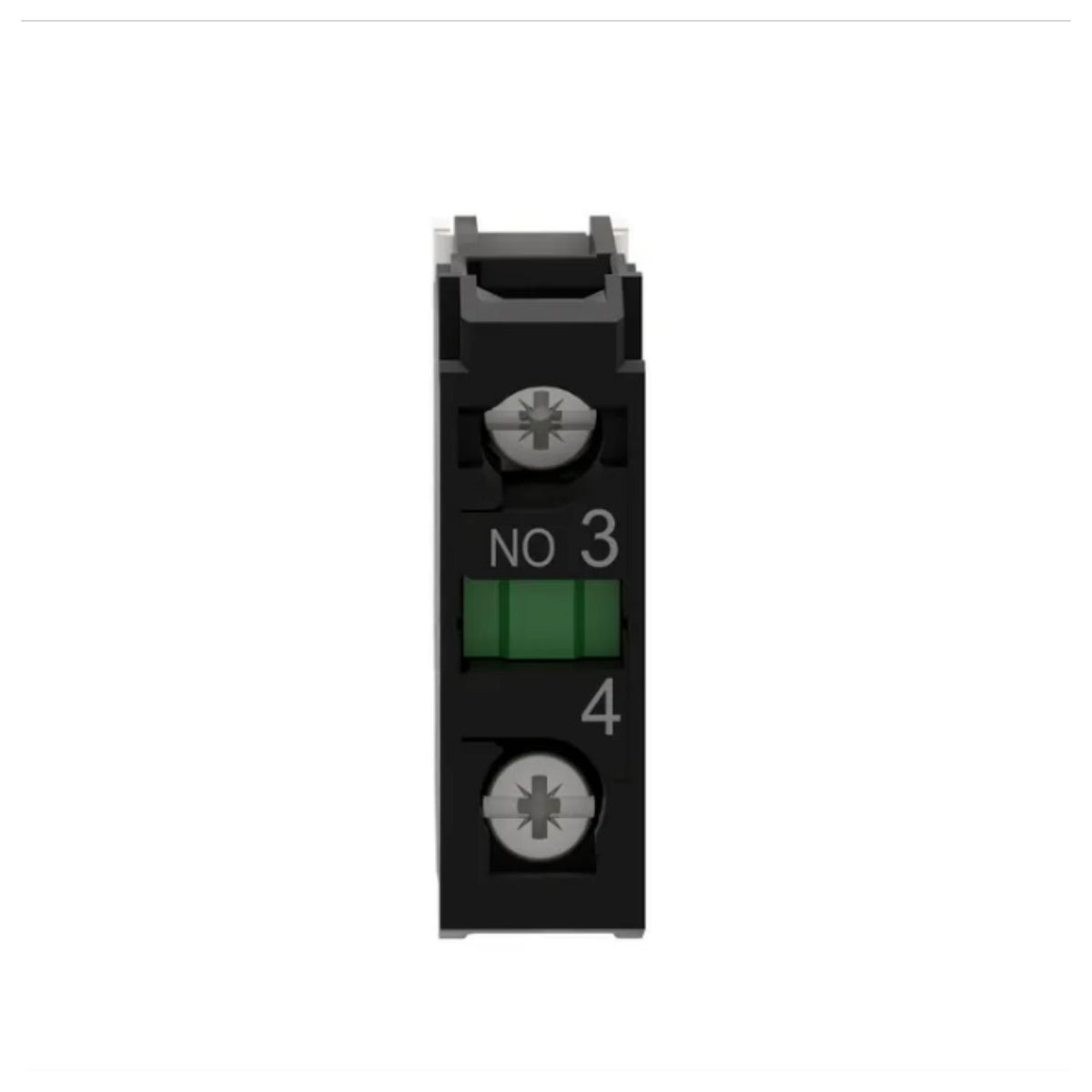

Schneider Electric ZBE101 Harmony XB4 XB5 contact block 1 NO screw clamp
Schneider Electric ZBE101 Harmony XB4 XB5 contact block 1 NO screw clamp

Schneider Electric ZBE101 Harmony XB4 XB5 Contact Block 22 mm 1 NO Screw Clamp Terminal Automation Component

Brand: Schneider Electric
Reference No: ZBE101
Catalog No: ZBE101
Series: Harmony XB5 | Harmony XB4
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ZBE101 is a Harmony XB4/XB5 add-on contact block with 1 NO and screw clamp terminals, mounting behind a 22 mm push-button or selector-switch body to add an extra switching contact. It is sold in packs of 5 and rated 10 A thermal current.

Technical Specifications

Reference ZBE101
Brand Schneider Electric
Range of Product Harmony XB4 | Harmony XB5
GTIN 3389110089479
Product or Component Type Contact block
Device short name ZBE
Contacts type and composition 1 NO
Contact operation Slow-break
Contact block type Single
Connections - terminals Screw clamp, <= 2 x 1.5 mm² with cable end / >= 1 x 0.22 mm² without cable end (IEC 60947-1)
Contacts material Silver alloy (Ag/Ni)
[Ith] conventional free air thermal current 10 A (IEC 60947-5-1)
[Ie] rated operational current 3 A 240 V / 6 A 120 V, AC-15 (IEC 60947-5-1)
[Ui] rated insulation voltage 600 V (IEC 60947-1)
Short-circuit protection 10 A cartridge fuse gG (IEC 60947-5-1)
IP degree of protection IP20 (IEC 60529)
Net weight 0.011 kg
Ambient air temperature, operation -40...70 °C
Sale per indivisible quantity 5

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV
  • LROS
  • CCC
  • GOST

Selection Notes

Screw-clamp terminals give the higher 600 V insulation rating and suit field rewiring or maintenance where push-in connectors are less practical. Choose the 1 NO version to match whether the added contact should close or open on actuation; it stacks onto the same XB4/XB5 body as other ZBE contact blocks for multi-contact stations.

Technical Details

Short Description
Harmony XB4/XB5 add-on contact block, 1 NO, screw clamp terminal.
Mounting Type
22 mm add-on contact block
Protection Type
IP20
Catalog No
ZBE101
Delivery Date (Days)
30 days
Model Number
ZBE
Tariff Code
853890
