Schneider Electric ZB6E2B Harmony XB6 Contact Block 16 mm 1 NC Faston Connector Automation Component

% $-6.79

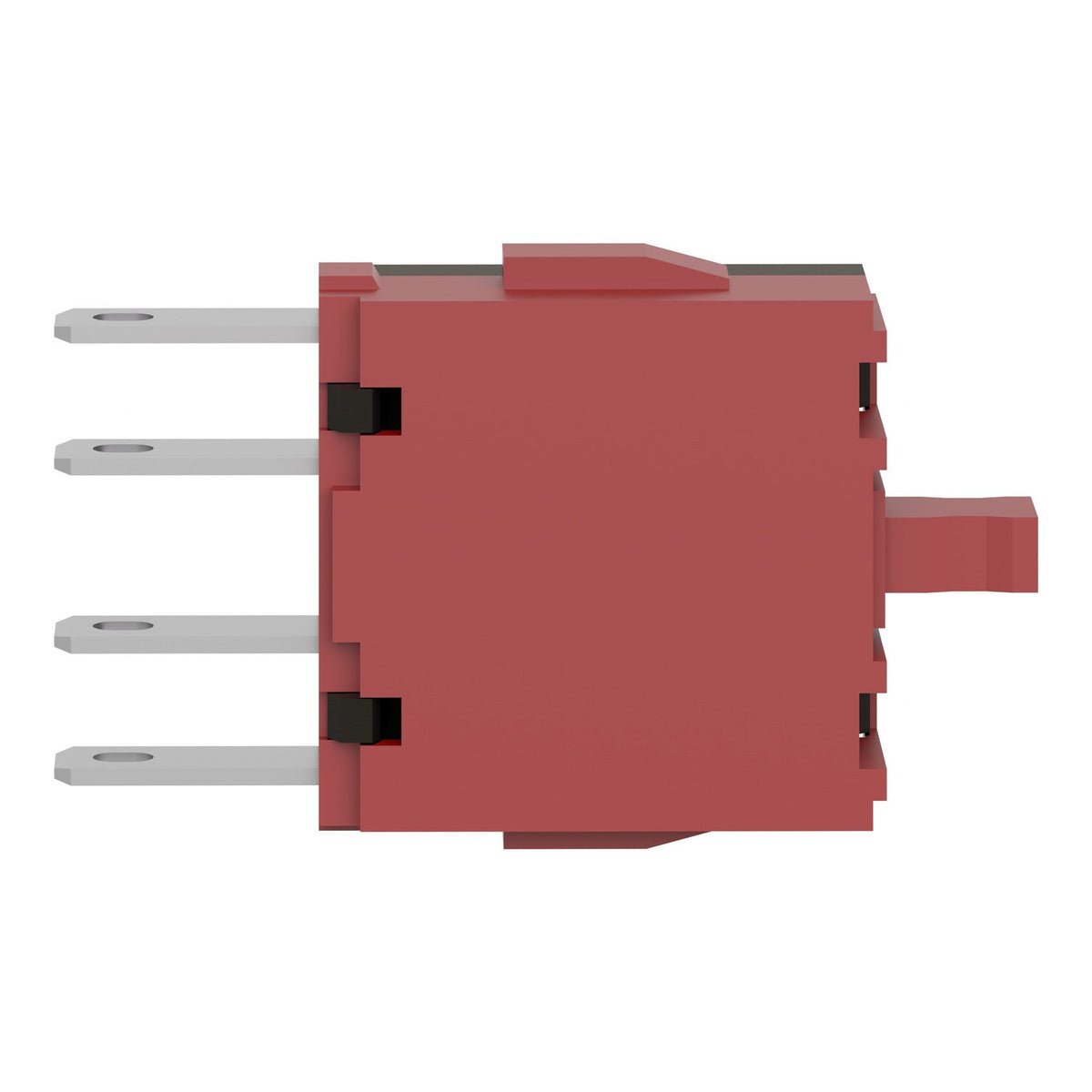

Schneider Electric ZB6E2B Harmony XB6 contact block 1 NC faston
Schneider Electric ZB6E2B Harmony XB6 contact block 1 NC faston

Schneider Electric ZB6E2B Harmony XB6 Contact Block 16 mm 1 NC Faston Connector Automation Component

Brand: Schneider Electric
Reference No: ZB6E2B
Catalog No: ZB6E2B
Series: Harmony XB6
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$6.79

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ZB6E2B is a Harmony XB6 single contact block with 1 NC and faston connectors, built for the Ø16 mm monolithic plastic push buttons, switches and pilot lights in the XB6 range. It mounts behind the head to carry the control signal to the panel wiring.

Technical Specifications

Reference ZB6E2B
Brand Schneider Electric
Range of Product Harmony XB6
GTIN 3389110775303
Product or Component Type Contact block
Device short name ZB6
Contacts type and composition 1 NC
Contact operation Slow-break
Contact block type Single
Connections - terminals Faston connector
Terminals description (1-2)NC
Contacts material Silver alloy (Ag/Ni)
[Ie] rated operational current 3 A 120 V / 1.5 A 240 V, AC-15, B300
[Ui] rated insulation voltage 250 V (IEC 60947-1)
Short-circuit protection 6 A cartridge fuse gG
IP degree of protection IP20 (IEC 60529)
Net weight 0.004 kg
Ambient air temperature, operation -25...70 °C
Sale per indivisible quantity 10

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • CSA C22.2 No 14
  • CCC
  • GOST
  • JIS C 4520
  • JIS C 852

Selection Notes

Faston (spade) terminals suit high-volume machine builds where crimped connectors are faster to assemble than screw clamps — choose the 1 NC version to match whether the circuit should break or make on actuation. It carries a 250 V insulation rating, lower than the 22 mm XB4/XB5 contact blocks, consistent with the smaller Ø16 mm XB6 form factor.

Technical Details

Short Description
Harmony XB6 single contact block, 1 NC, faston connector, 16 mm head.
Mounting Type
16 mm panel mount
Protection Type
IP20
Catalog No
ZB6E2B
Delivery Date (Days)
30 days
Model Number
ZB6
Tariff Code
853890
