Schneider Electric ZB5AV6 Harmony XB5 Light Block Body BA9s up to 250 V Automation Component

% $-6.24

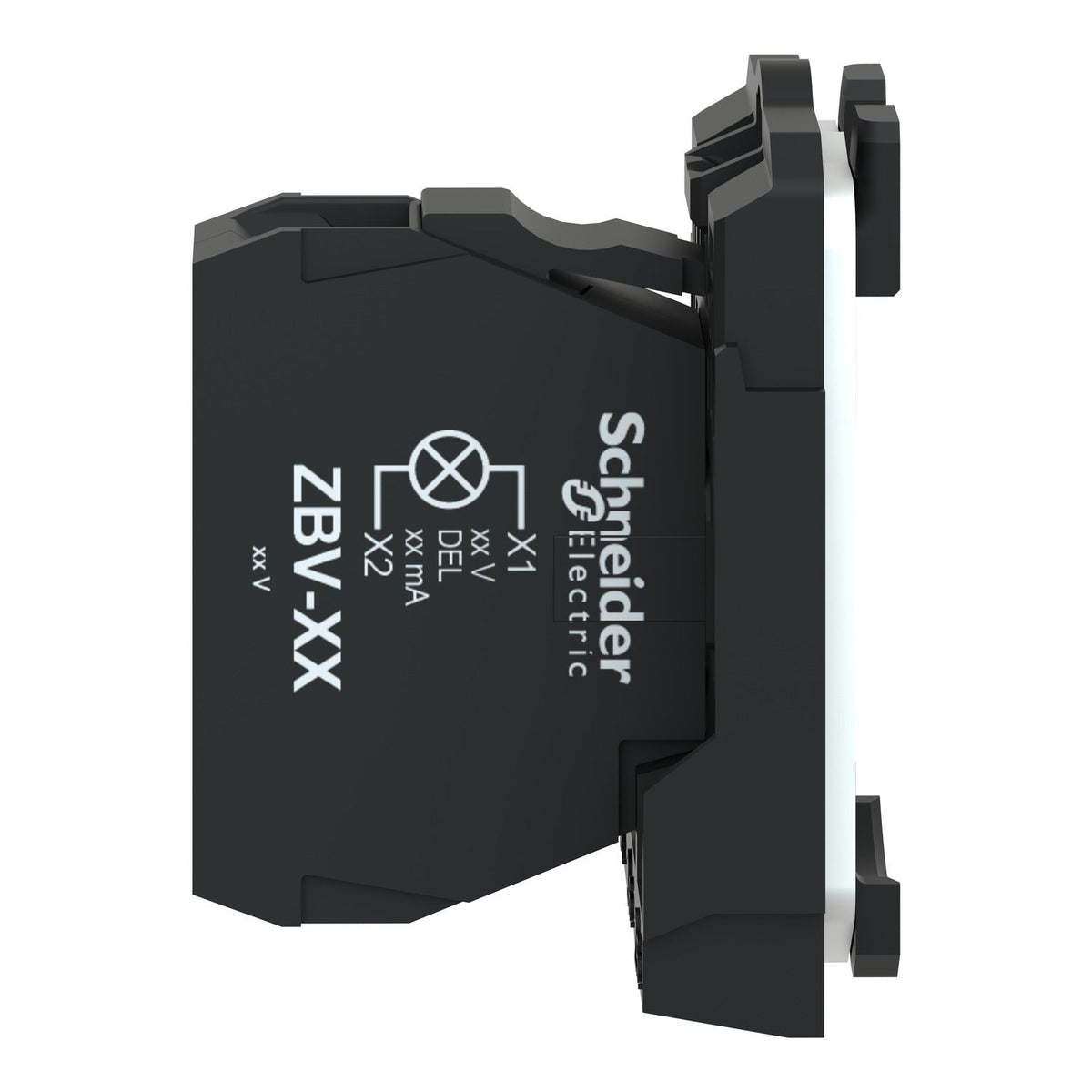

Schneider Electric ZB5AV6 Harmony XB5 light block body with fixing collar - BA9s
Schneider Electric ZB5AV6 Harmony XB5 light block body with fixing collar - BA9s

Schneider Electric ZB5AV6 Harmony XB5 Light Block Body BA9s up to 250 V Automation Component

Brand: Schneider Electric
Reference No: ZB5AV6
Catalog No: ZB5AV6
Series: Harmony XB5
Tariff Code (HS): 853890
Rated Voltage: up to 250 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$6.24

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ZB5AV6 is a Harmony XB5 light block body with an integral fixing collar, built for a BA9s bulb (not included) on a direct supply up to 250 V. It is the body half of a complete illuminated pilot light, connecting to screw-clamp terminals and accepting any ZB5 head for pilot light on top.

Technical Specifications

Reference ZB5AV6
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3389110908282
Product or Component Type Complete body/light block assembly
Device short name ZB5
Fixing collar material Plastic
Connections - terminals Screw clamp, <= 2 x 1.5 mm² with cable end / >= 1 x 0.22 mm² without cable end (IEC 60947-1)
Light source Bulb not included
Bulb base BA9s
Light block supply Direct, < 2.4 W
Rated supply voltage [Us] up to 250 V
Signalling type Steady
Overall dimensions (W x H x D) 30 x 42 x 32 mm
Net weight 0.022 kg
Rated insulation voltage [Ui] 600 V (IEC 60947-1)
Rated impulse withstand voltage [Uimp] 6 kV (IEC 60947-1)
Ambient air temperature, operation -40...70 °C
Electrical shock protection class Class II (IEC 60536)

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-1
  • JIS C8201-5-1
  • UL Listed

Selection Notes

Pair this body with a ZB5AV0x head for pilot light and a BA9s bulb to build a complete indicator without an LED driver — the direct-supply light block drives the bulb straight from line voltage up to 250 V, so no separate transformer is needed for 230 V control circuits. Screw-clamp terminals keep it compatible with panels already wired for the Harmony XB4/XB5 contact-block terminal layout.

Technical Details

Short Description
Harmony XB5 light block body with fixing collar, BA9s base, direct supply up to 250 V.
Rated Voltage (VAC)
up to 250 V
Mounting Type
22 mm panel mount, fixing collar
Catalog No
ZB5AV6
Delivery Date (Days)
30 days
Model Number
ZB5
Tariff Code
853890
