Schneider Electric ZB5AV05 Harmony XB5 Pilot Light Head Plastic Yellow 22 mm Plain Lens BA9s Pilot Light

% $-3.09

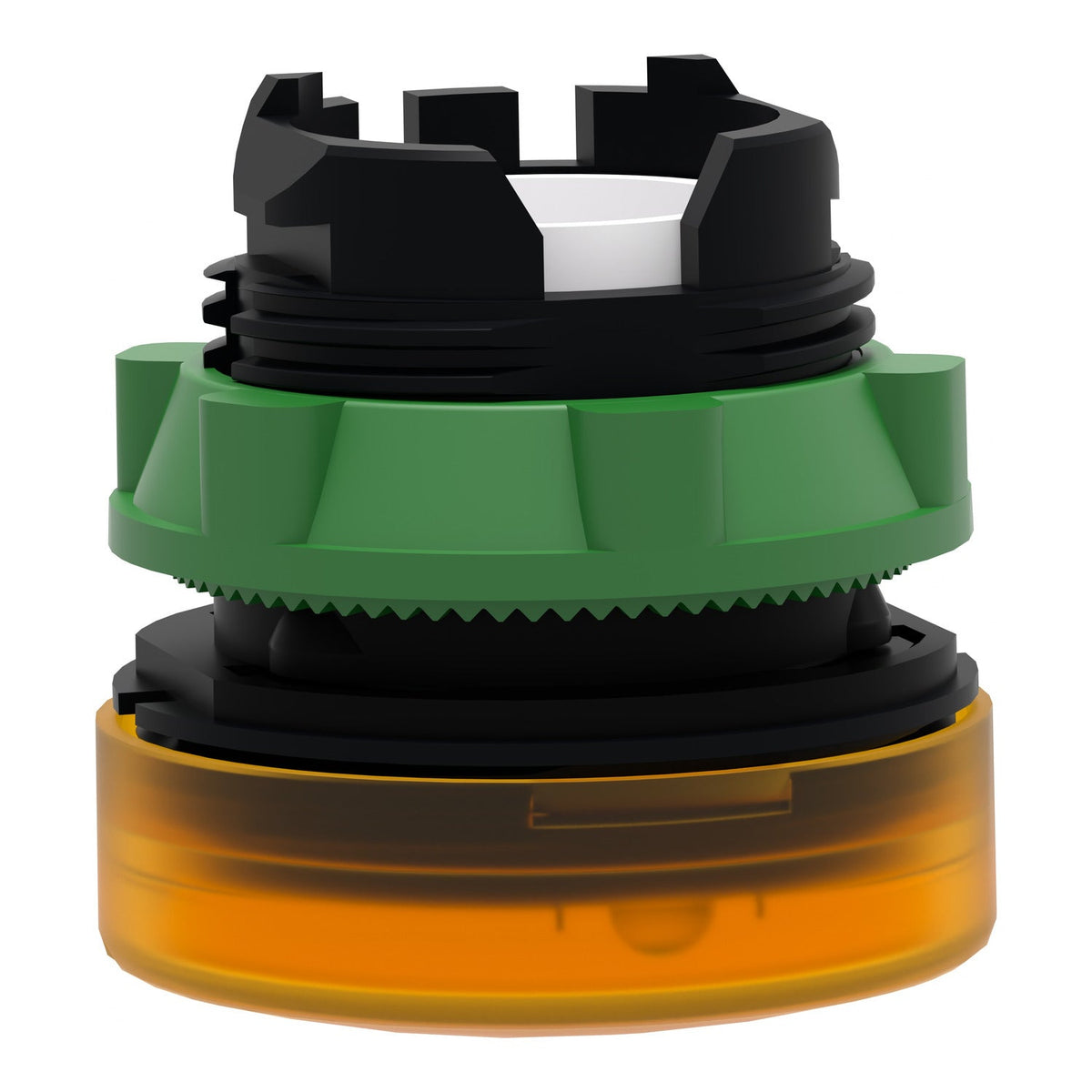

Schneider Electric ZB5AV05 Harmony XB5 pilot light head yellow BA9s - 22 mm
Schneider Electric ZB5AV05 Harmony XB5 pilot light head yellow BA9s - 22 mm

Schneider Electric ZB5AV05 Harmony XB5 Pilot Light Head Plastic Yellow 22 mm Plain Lens BA9s Pilot Light

Brand: Schneider Electric
Reference No: ZB5AV05
Catalog No: ZB5AV05
Series: Harmony XB5
Tariff Code (HS): 853661
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ZB5AV05 is a Harmony XB5 head for pilot light: a 22 mm plastic, yellow plain-lens cap on a BA9s base. It snaps onto a ZB5 fixing collar or light block to build a complete illuminated indicator, with no bulb included and IP66/IP67/IP69K sealing for washdown areas.

Technical Specifications

Reference ZB5AV05
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3389110908114
Product or Component Type Head for pilot light
Device short name ZB5
Bezel material Dark grey plastic
Mounting diameter 22 mm
Head type Standard
Cap/operator or lens colour Yellow
Operator additional information With plain lens
Bulb base BA9s
Overall dimensions (W x H x D) 29 x 29 x 31 mm
Net weight 0.018 kg
Ambient air temperature, operation -40...70 °C
IP degree of protection IP66 / IP67 / IP69 / IP69K
Enclosure type UL Type 4X/13
IK degree of protection IK05
Overvoltage category Class II (IEC 60536)

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-1
  • JIS C8201-5-1

Selection Notes

This is a head only — order a BA9s bulb and a ZB5 light block/body (such as ZB5AV6) separately to complete the indicator. The plain lens gives a uniform yellow glow without a printed symbol, useful where the panel legend plate already identifies the function. The dark grey bezel and IP69K rating make it interchangeable across standard and washdown ZB5 assemblies without changing the body.

Technical Details

Short Description
Harmony XB5 pilot light head, yellow plain lens, BA9s base, 22 mm, IP69K.
Mounting Type
22 mm panel mount
Protection Type
IP66 / IP67 / IP69 / IP69K
Catalog No
ZB5AV05
Delivery Date (Days)
30 days
Model Number
ZB5
Tariff Code
853661
