Schneider Electric ZB2BE101 Harmony add-on contact block 1 NO

Schneider Electric ZB2BE101 Harmony 22 mm Add-On Contact Block Single 1NO Screw Clamp Automation Component

Name: Schneider Electric ZB2BE101 Harmony 22 mm Add-On Contact Block Single 1NO Screw Clamp Automation Component
Brand: Schneider Electric
SKU: ZB2BE101
Price: 3.3 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: ZB2BE101

Catalog No: ZB2BE101

Series: Harmony XAC

Tariff Code (HS): 853890

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$3.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

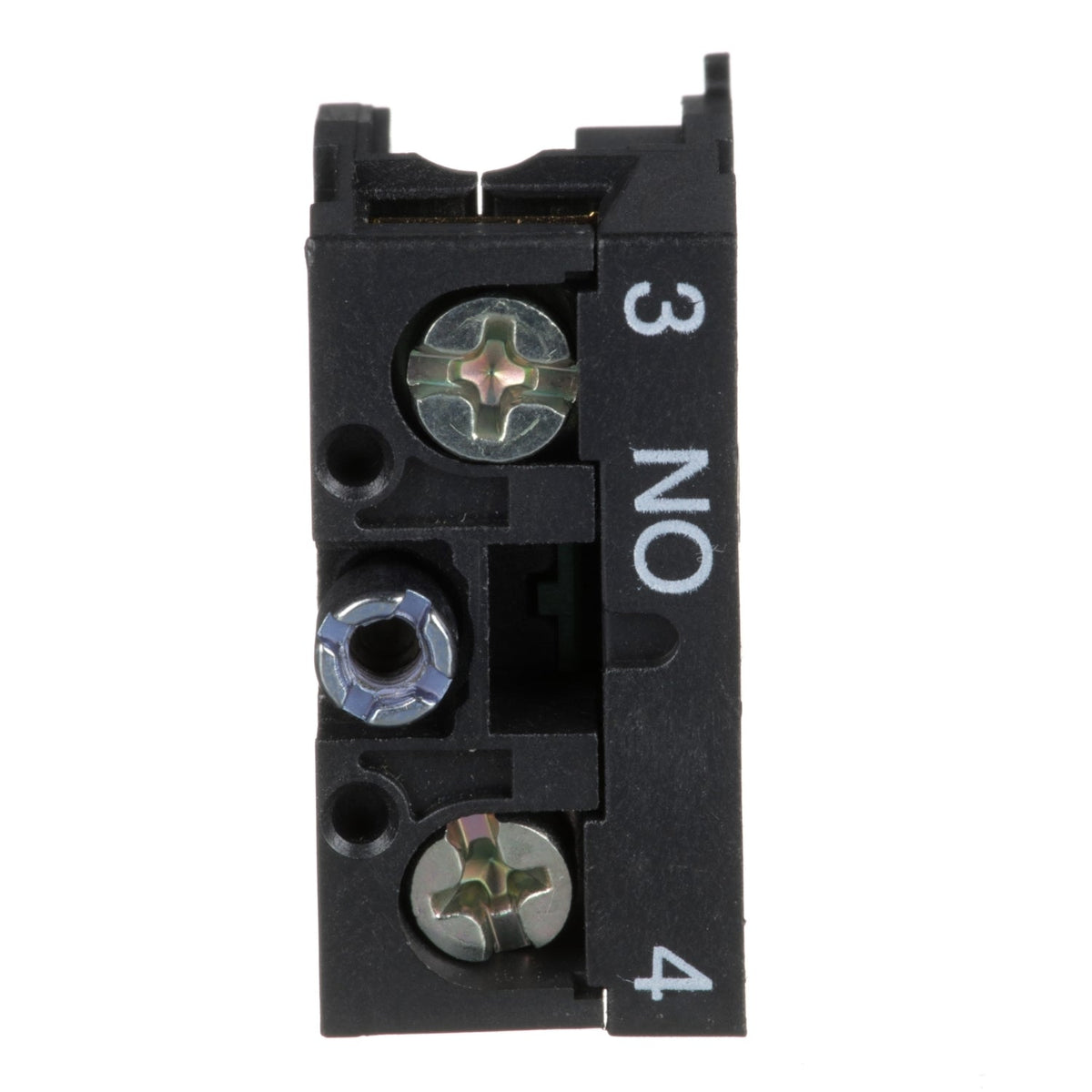

The Schneider Electric ZB2BE101 is an add-on contact block for the Harmony 22 mm modular range, carrying one 1 NO contact for front mounting on XB4, XB5 or XACA push-button and selector-switch bodies. It connects with screw-clamp terminals and extends a push button head with one more switched circuit for interlocking or signalling.

Technical Specifications

Reference	ZB2BE101
Brand	Schneider Electric
Range	Harmony XAC
Product Compatibility	XB4 \| XB5 \| XACA
Contact Block Application	Single speed
Contacts Type and Composition	1 NO
Mounting of Block	Front mounting
Contact Operation	Slow-break
Terminals Description	(13-14)NO
Connections – Terminals	Screw clamp terminals, 1 x 2.5 mm² or 2 x 1.5 mm²
[Ithe] Conventional Enclosed Thermal Current	10 A
[Ui] Rated Insulation Voltage	600 V
[Uimp] Rated Impulse Withstand Voltage	6 kV
Net Weight	0.02 kg

Certifications & Standards

IEC 60947-5-1
UL 508
IEC 60204-32
CSA C22.2 No 14

Selection Notes

The ZB2BE101 mounts across the whole XB4/XB5/XACA family, so one spares line covers metal and plastic 22 mm heads alike. Choose the 1 NO version for make-on-press control functions (start, confirm); stack it with the ZB2BE102 block on a double-mounting head when both a make and a break contact are needed from one operator.

Technical Details

Short Description

Schneider Electric Harmony 22 mm add-on contact block, 1 NO, screw clamp terminal.

Mounting Type

Front mounting on XB4/XB5/XACA body

Catalog No

ZB2BE101

Delivery Date (Days)

30 days

Model Number

Harmony XB4/XB5

Tariff Code

853890
