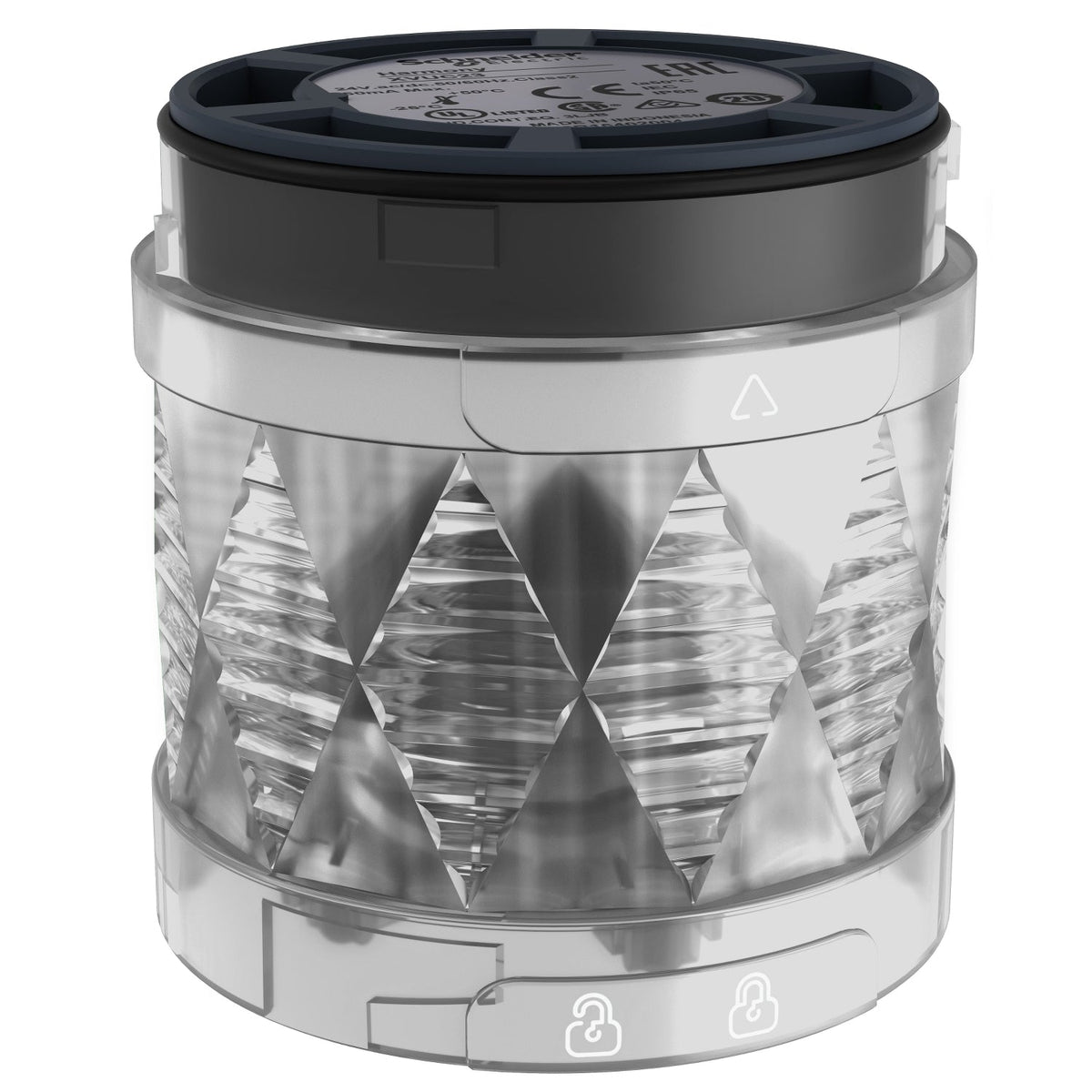

Schneider Electric XVUC29 Harmony XVU LED Unit Multi-Colour 60 mm Steady Flashing Rotating Signal Tower

The Schneider Electric XVUC29 is a Harmony XVU multi-colour modular LED indicator unit, offering green, yellow, white, blue, amber and red light from a single lens at 24 V AC/DC. It supports steady, rotating, flashing and blinking signalling types, with an IP65 rating, for consolidating several machine-status colours into one stacking position on a tower light.

Technical Specifications

Certifications & Standards

• CE
• CSA
• UL

Selection Notes

The XVUC29 replaces up to six single-colour XVU LED units with one position on the stack, which saves tower height and wiring on machines that need to cycle through several status colours (for example amber-blinking for a warm-up state, then steady green for run). Its four signalling types — steady, rotating, flashing and blinking — are set at installation and controlled by the supply wiring rather than a separate protocol, so confirm the machine's control logic can drive the correct input combination for the colour and pattern needed at each state before specifying it over a set of single-colour units.

Applications

This multi-colour unit suits machines with more status states than the three or four colours a standard stack can hold — automotive assembly, packaging machinery and machine tools that need distinct indications for run, warning, fault, maintenance and setup without adding tower height.
