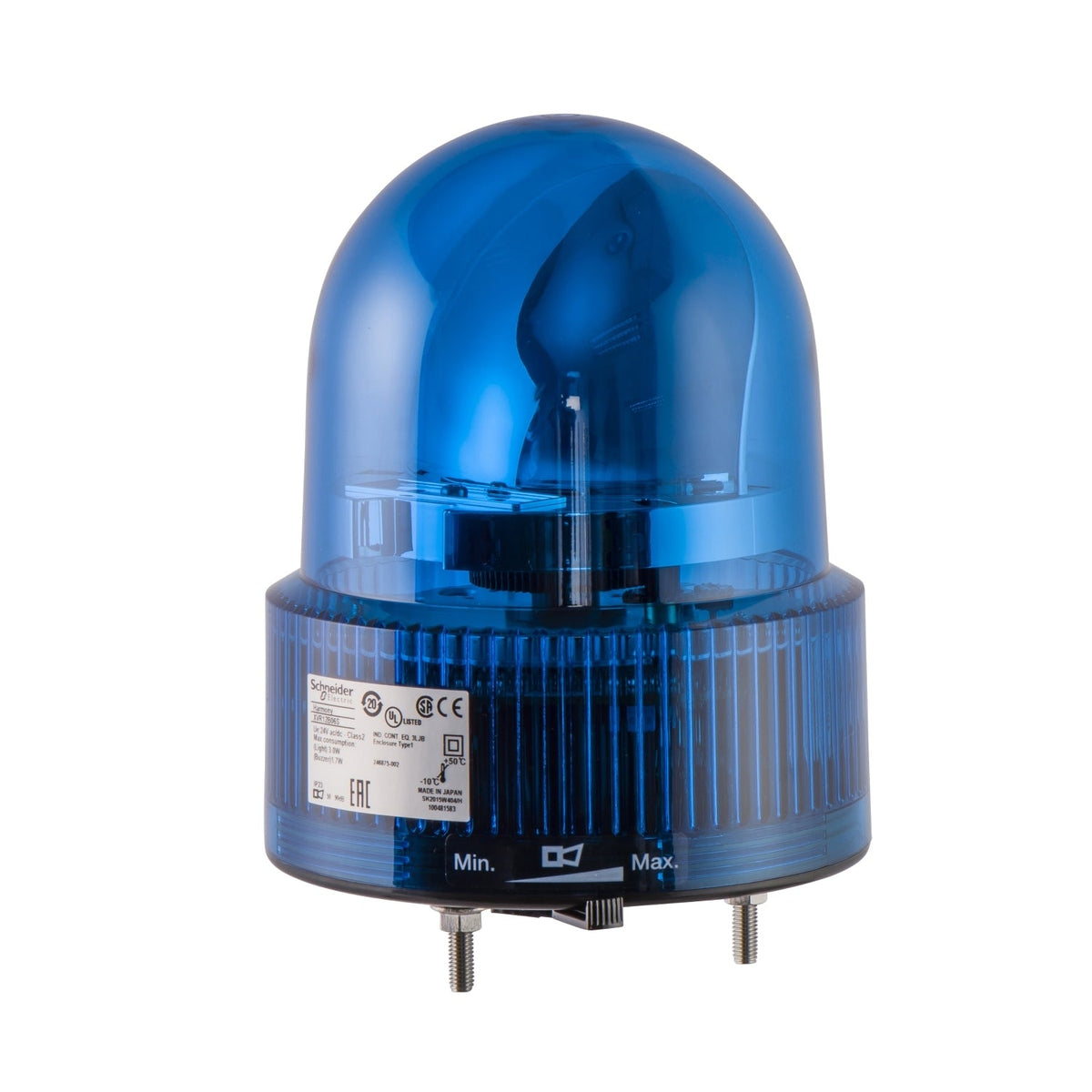

Schneider Electric XVR12B06 Harmony XVR Rotating Mirror Beacon 120 mm Blue without Buzzer 24 V AC/DC Beacon

The Schneider Electric XVR12B06 is a 120 mm Harmony XVR rotating mirror beacon in blue, supplied complete and pre-cabled for 24 V AC/DC operation. It carries an IP23 IEC 60529 degree of protection and ships without an integrated buzzer, giving it a flashing frequency of 2.3 Hz for long-distance machine-status signaling on industrial equipment.

Technical Specifications

Certifications & Standards

• CE
• IEC 61000-6-2
• IEC 61000-6-4

Selection Notes

The blue lens on the XVR12B06 follows the standard Harmony color code for this signaling point; confirm it matches the plant's existing color convention before ordering the 120 mm body. It has no built-in sound signaling, so pair it with a Harmony XVS siren on installations where an audible alert is also required. 24 V AC/DC supply keeps it on the same low-voltage control circuit as the rest of a machine's automation hardware. Its IP23 rating is adequate for panel and cabinet-mounted indication indoors. The pre-cabled 400 mm lead terminates in open wire ends, so budget a junction box or gland near the mounting point rather than a plug-in connector.

Applications

Rotating mirror beacons in the Harmony XVR range are used for machine-status indication on production lines, material handling equipment and, for the IP66/IP67 130 mm bodies, on forklifts, bulldozers and automated guided vehicles where wash-down and vibration resistance matter.
