Schneider Electric XVR12B04S Harmony XVR rotating mirror beacon 120 mm red 24 V AC/DC - Beacon

Schneider Electric XVR12B04S Harmony XVR Rotating Mirror Beacon 120 mm Red 24 V AC/DC Buzzer Beacon

Name: Schneider Electric XVR12B04S Harmony XVR Rotating Mirror Beacon 120 mm Red 24 V AC/DC Buzzer Beacon
Brand: Schneider Electric
SKU: XVR12B04S
Price: 221.18 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: XVR12B04S

Catalog No: XVR12B04S

Series: Harmony XVR

Tariff Code (HS): 853180

Rated Voltage: 24 V AC/DC

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$221.18

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

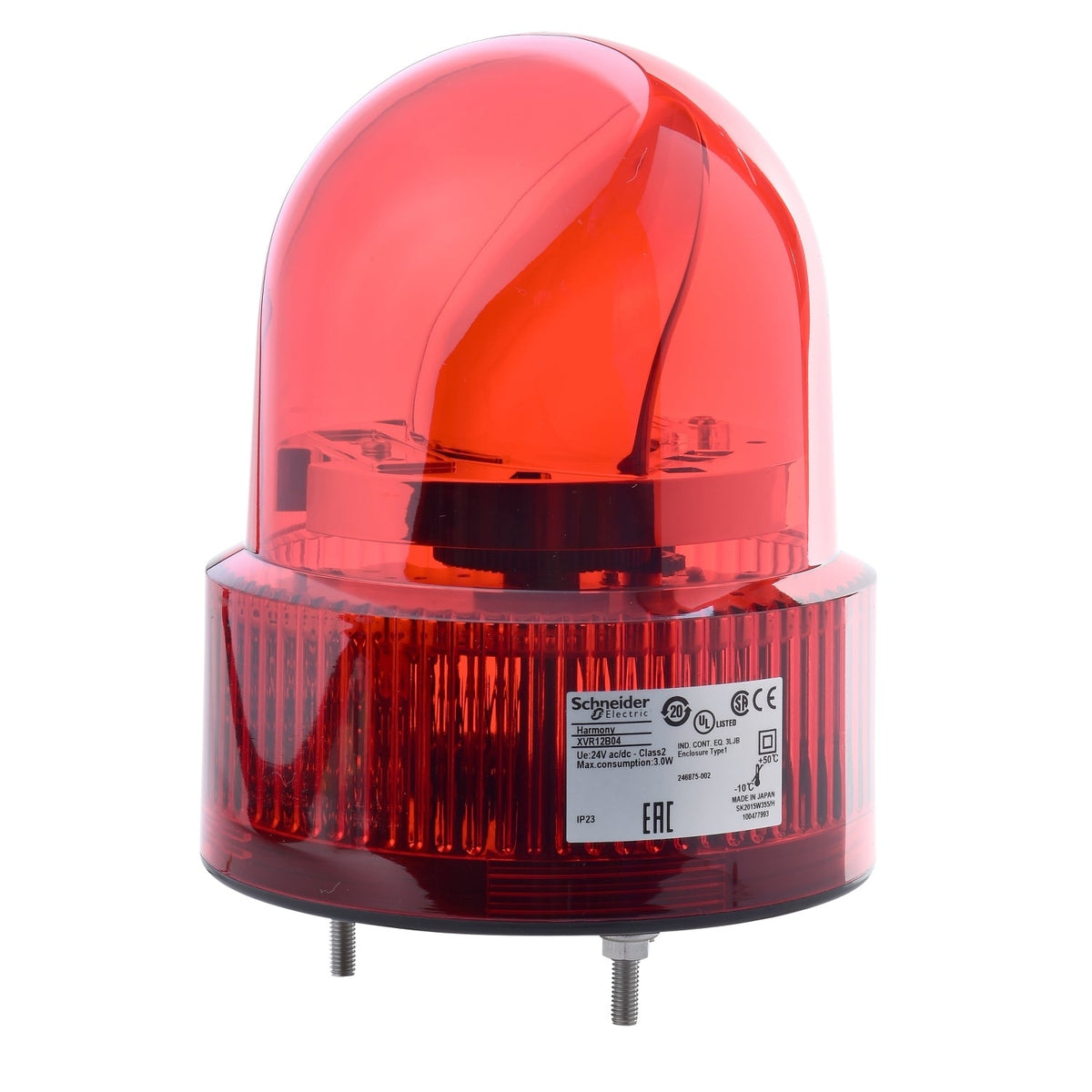

The Schneider Electric XVR12B04S is a prewired rotating mirror beacon from the Harmony XVR range, 120 mm in diameter with a high-luminosity red LED light source, with an integrated buzzer adjustable 50-90 dB. It runs on 24 V AC/DC, flashes at 2.3 Hz, and reaches IP23 with a 400 mm pre-cabled lead for direct connection.

Technical Specifications

SKU / Reference	XVR12B04S
Brand	Schneider Electric
Range of Product	Harmony XVR
Product or Component Type	Prewired rotating mirror beacon
Sound Signalling	Buzzer
Noise Level	50-90 dB at 1 m
Mounting Diameter	120 mm
Light Source	High luminosity LED, red
Material	ABS (body part), AS (globe)
[Us] Rated Supply Voltage	24 V AC/DC
Supply Voltage Limits	19…30 V DC / 21.6…26.4 V AC
[Uimp] Rated Impulse Withstand Voltage	0.8 kV
Current Consumption	196 mA
Flashing Frequency	2.3 Hz
Product Mounting	By 3 M5 screws
Clamping Connection Capacity	0.83 mm² (18 AWG)
Cable Length	400 mm
Electrical Shock Protection Class	Class II
IP Degree of Protection	IP23
Net Weight	0.5 kg
Ambient Air Temperature for Operation	-10…50 °C
Ambient Air Temperature for Storage	-35…70 °C

Certifications & Standards

CE
IEC 61000-6-4
IEC 61000-6-2

Selection Notes

XVR12B04S adds an adjustable 50-90 dB buzzer to the standard XVR rotating beacon body, so the same 2.3 Hz rotating red signal can also carry an audible alarm without a separate sounder on the panel. Choose it over the beacon-only version when the installation needs a combined visual and audible alert from one mounting point, such as long-distance signalling in steel or material-handling applications.

Technical Details

Short Description

Schneider Electric XVR12B04S - Harmony XVR rotating mirror beacon, 120 mm, red, 24 V AC/DC, buzzer.

Rated Voltage (VAC)

24 V AC/DC

Catalog No

XVR12B04S

Delivery Date (Days)

30 days

Model Number

XVR

Tariff Code

853180
