Schneider Electric XVR12B04 Harmony XVR Rotating Mirror Beacon 120 mm Red 24 V AC/DC Beacon

% $-173.96
Schneider Electric XVR12B04 Harmony XVR rotating mirror beacon 120 mm red 24 V AC/DC - Beacon
Schneider Electric XVR12B04 Harmony XVR rotating mirror beacon 120 mm red 24 V AC/DC - Beacon

Schneider Electric XVR12B04 Harmony XVR Rotating Mirror Beacon 120 mm Red 24 V AC/DC Beacon

Brand: Schneider Electric
Reference No: XVR12B04
Catalog No: XVR12B04
Series: Harmony XVR
Tariff Code (HS): 853180
Rated Voltage: 24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$173.96

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

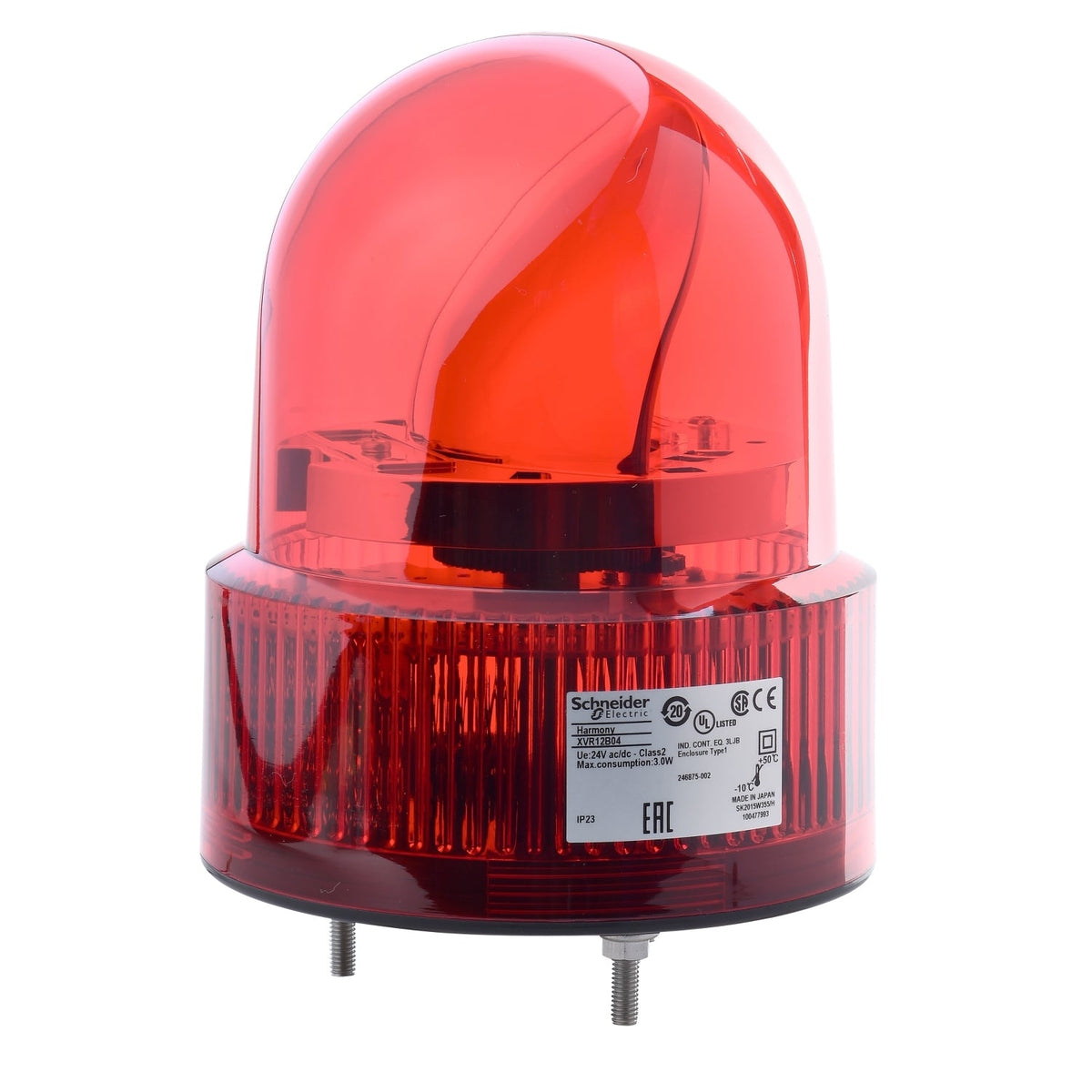

The Schneider Electric XVR12B04 is a prewired rotating mirror beacon from the Harmony XVR range, 120 mm in diameter with a high-luminosity red LED light source, without a buzzer. It runs on 24 V AC/DC, flashes at 2.3 Hz, and reaches IP23 with a 400 mm pre-cabled lead for direct connection.

Technical Specifications

SKU / Reference XVR12B04
Brand Schneider Electric
Range of Product Harmony XVR
Product or Component Type Prewired rotating mirror beacon
Sound Signalling Without
Mounting Diameter 120 mm
Light Source High luminosity LED, red
Material ABS (body part), AS (globe)
[Us] Rated Supply Voltage 24 V AC/DC
Supply Voltage Limits 19…30 V DC / 21.6…26.4 V AC
[Uimp] Rated Impulse Withstand Voltage 0.8 kV
Current Consumption 125 mA
Flashing Frequency 2.3 Hz
Product Mounting By 3 M5 screws
Clamping Connection Capacity 0.83 mm² (18 AWG)
Cable Length 400 mm
Electrical Shock Protection Class Class II
IP Degree of Protection IP23
Net Weight 0.5 kg
Ambient Air Temperature for Operation -10…50 °C
Ambient Air Temperature for Storage -35…70 °C

Certifications & Standards

  • CE
  • IEC 61000-6-2
  • IEC 61000-6-4

Selection Notes

XVR12B04 is the beacon-only version of the Harmony XVR rotating mirror light, without the integrated buzzer of the XVR12B04S. Choose it where a separate audible device already covers the alarm function, or where a silent visual signal is preferred; both variants share the same 24 V AC/DC supply, 2.3 Hz rotation and 120 mm red lens.

Technical Details

Short Description
Schneider Electric XVR12B04 - Harmony XVR rotating mirror beacon, 120 mm, red, 24 V AC/DC, no buzzer.
Rated Voltage (VAC)
24 V AC/DC
Catalog No
XVR12B04
Delivery Date (Days)
30 days
Model Number
XVR
Tariff Code
853180
