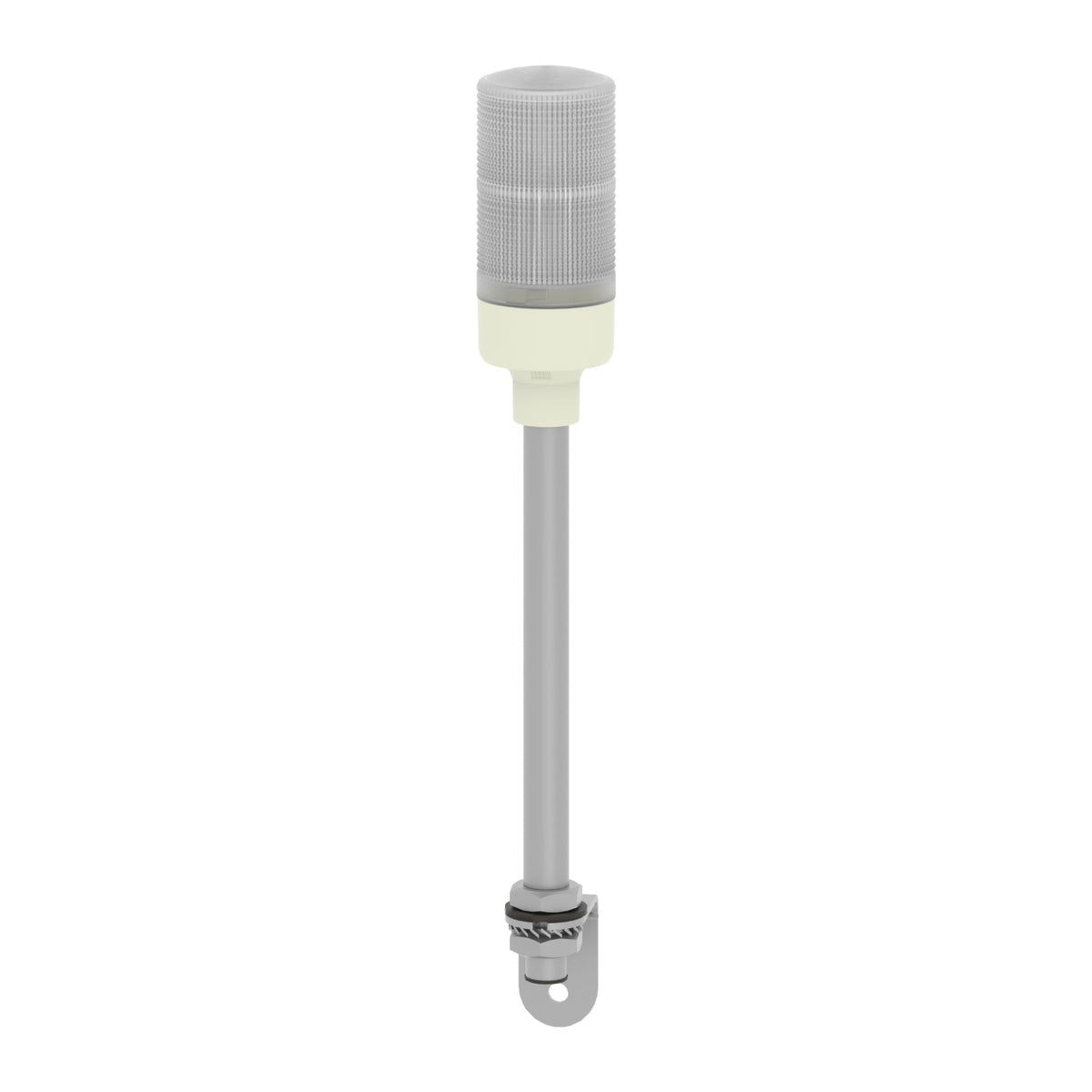

Schneider Electric XVGB2 Harmony XVG 60 mm Red Green Steady 24 V AC/DC L-Bracket Signal Tower

The Schneider Electric XVGB2 is a complete pre-wired monolithic tower light from the Harmony XVG range, combining 2 steady LED colour segments (red/green) on a 60 mm diameter body. It runs on 24 V AC/DC, mounts by tube with l bracket, and reaches IP23 ingress protection for direct installation on the machine.

Technical Specifications

Certifications & Standards

• CE
• EAC

Selection Notes

XVGB2 uses tube with l bracket rather than the fixing-plate or foldable-bracket versions, which sets its IP23 ingress rating and 0.42 kg weight. With no buzzer in the base, it stays a purely visual indicator for areas where audible alarms are not wanted or already covered by another device. Pick this mounting style when the panel or machine frame already matches its fixing pattern; swapping between the L-bracket, fixing-plate, foldable-bracket, direct-tube and base-mount variants mainly changes how the tube is anchored, not the light logic itself.
