Schneider Electric XVB7C61 Harmony XVB7 M12 base module Ø70 mm 24 V AC/DC - Signal Tower

Schneider Electric XVB7C61 Harmony XVB7 Base Module Ø70 mm M12 24 V AC/DC Signal Tower

Name: Schneider Electric XVB7C61 Harmony XVB7 Base Module Ø70 mm M12 24 V AC/DC Signal Tower
Brand: Schneider Electric
SKU: XVB7C61
Price: 95.06 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: XVB7C61

Catalog No: XVB7C61

Series: Harmony XVB7

Tariff Code (HS): 853180

Rated Voltage: 24 V AC/DC

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$95.06

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

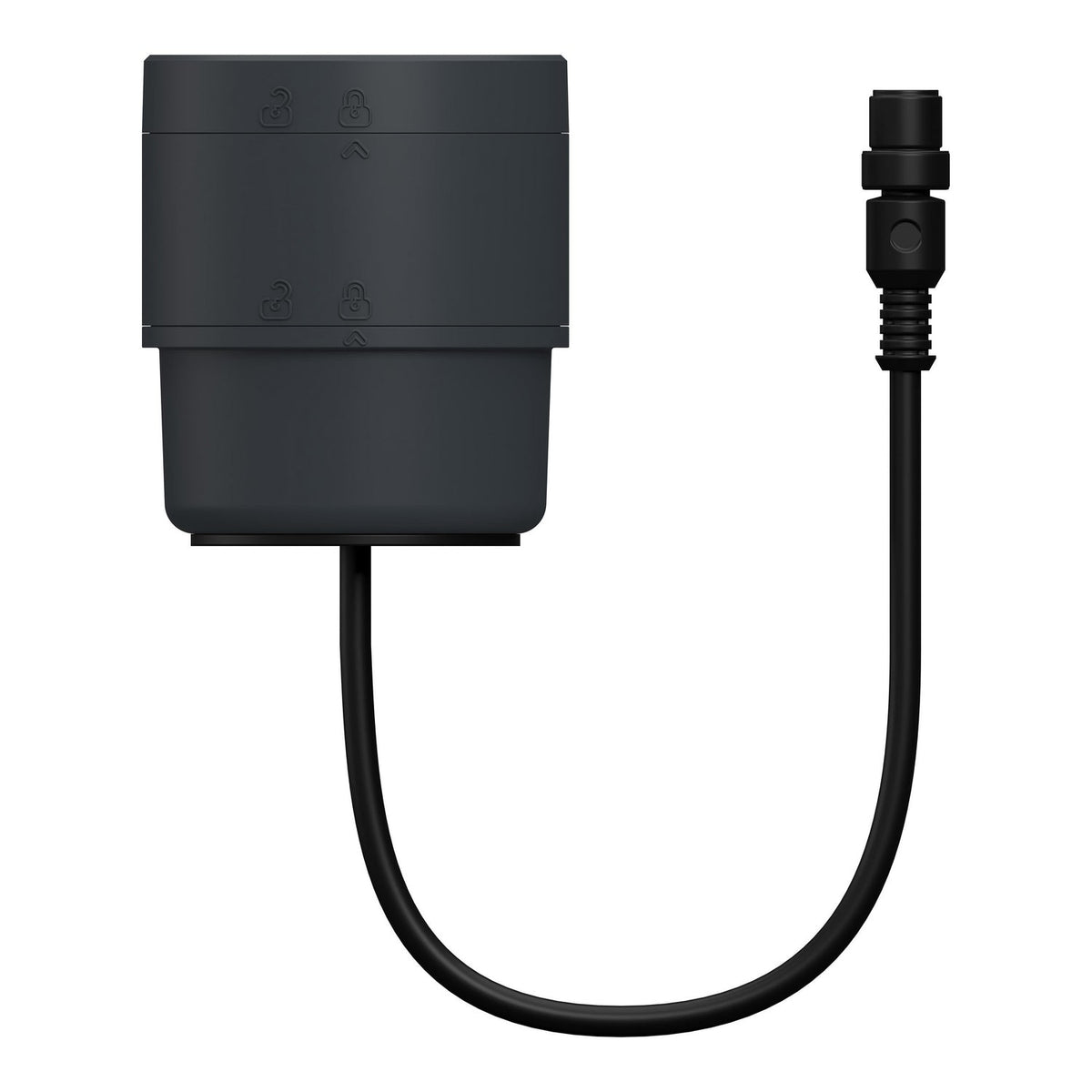

The Schneider Electric XVB7C61 is a M12 base module for the Harmony XVB7 range of Ø 70 mm modular tower lights. It supplies power to up to 4 modules (3 lens + 1 sound or 4 lens) and connects via an A-coded M12 connector on a 15 cm cable, running on 24 V AC/DC. The dark grey polycarbonate base reaches IP66 and weighs 0.289 kg.

Technical Specifications

SKU / Reference	XVB7C61
Brand	Schneider Electric
Range of Product	Harmony XVB7
Product or Component Type	Base module
Device Composition	Base direct/tube & cover
Material	Polycarbonate
Housing Colour	Dark grey
Mounting Diameter	70 mm
Electrical Connection	M12
Assembly Style	Up to 4 modules (3 lens + 1 sound or 4 lens)
Fixing Mode	Direct or tube fixing
[Ue] Rated Operational Voltage	24 V AC/DC
[Ui] Rated Insulation Voltage	50 V
[Uimp] Rated Impulse Withstand Voltage	0.5 kV
Current Consumption	0 mA
Output Current	2000 mA max
Connections - Terminals	M12, 5-pin male, A-coded port
Type of Cable	M12 cable, 15 cm
IP Degree of Protection	IP66
Net Weight	0.289 kg
Ambient Air Temperature for Operation	-25…60 °C
Ambient Air Temperature for Storage	-40…70 °C

Certifications & Standards

cULus
CCC
RCM
UKCA
CE
UL 60947-5-1
IEC 60947-5-1
CSA C22.2 No 60947-5-1

Selection Notes

XVB7C61 uses an A-coded M12 connector instead of screw or spring terminals, which trades a small amount of wiring flexibility for faster installation and replacement. The M12 connector and short pre-made cable skip field termination entirely, which suits machines where the tower light has to be unplugged for servicing. Pick the terminal-block base instead when the application already runs flying-lead cable to the tower light location.

Technical Details

Short Description

Schneider Electric XVB7C61 - Harmony XVB7 M12 base module, Ø70 mm, 24 V AC/DC, IP66.

Rated Voltage (VAC)

24 V AC/DC

Catalog No

XVB7C61

Delivery Date (Days)

30 days

Model Number

XVB7

Tariff Code

853180
