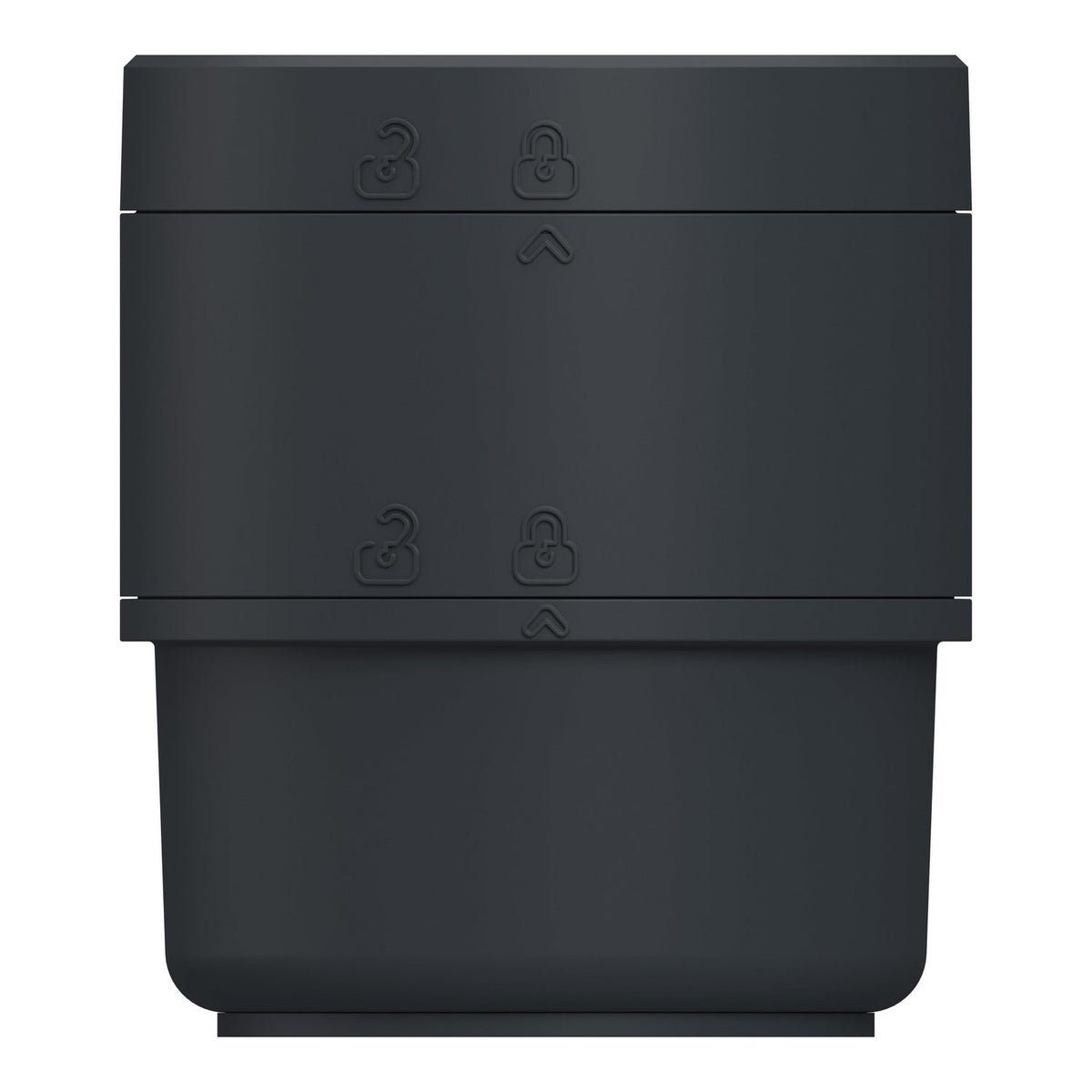

Schneider Electric XVB7C21B Harmony XVB7 Base Module Ø70 mm 24 V AC/DC Signal Tower

The Schneider Electric XVB7C21B is a base module for the Harmony XVB7 range of Ø 70 mm modular tower lights. It supplies power to up to 5 modules (4 lens + 1 sound or 5 lens) and is powered by 24 v ac/dc, connecting via spring clamp terminals (push 'n stay), 6 x 0.25…6 x 1.5 mm² with bottom cable entry. The dark grey polycarbonate base reaches IP66 and weighs 0.164 kg.

Technical Specifications

Certifications & Standards

• cULus
• CCC
• RCM
• UKCA
• CE
• UL 60947-5-1
• IEC 60947-5-1
• CSA C22.2 No 60947-5-1

Selection Notes

XVB7C21B is the 24v-connection base in the Harmony XVB7 line, which sets both its wiring method and how many lens or sound modules it can carry (5 modules (4 lens + 1 sound or 5 lens)). Pick it when the panel's existing cabling or fieldbus matches this connection type; the other XVB7 bases differ only in electrical connection and terminal style, not in how the light modules themselves signal. Direct or tube fixing keeps the mounting open for either a flush panel cut-out or a pole-mounted assembly.
