Schneider Electric XB7NW33M1 Harmony XB7 Illuminated Push Button Green Projecting 22 mm Push Button

% $-13.05
Schneider Electric XB7NW33M1 Harmony XB7 green illuminated push button - 22 mm integral LED 230 V AC
Schneider Electric XB7NW33M1 Harmony XB7 green illuminated push button - 22 mm integral LED 230 V AC

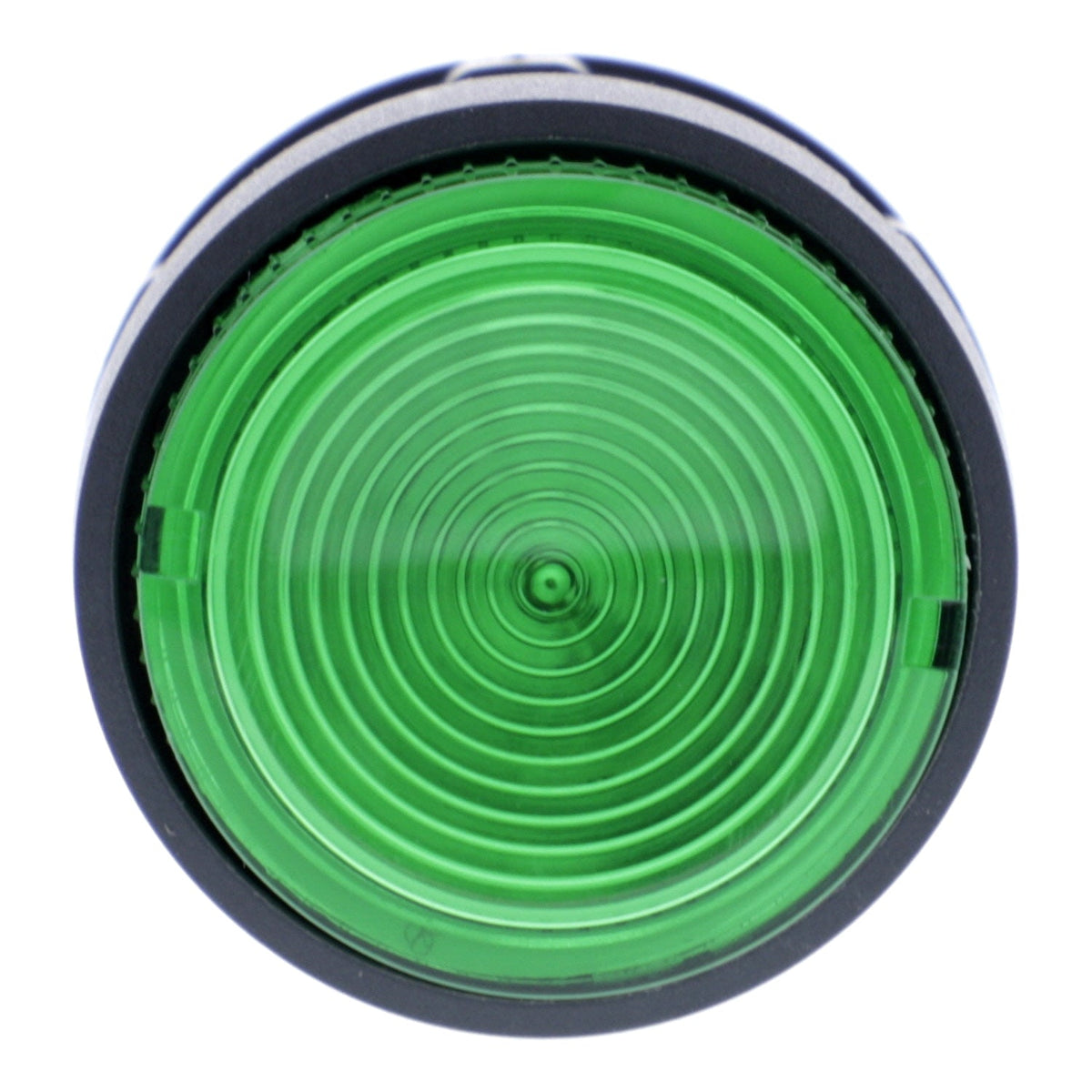

Schneider Electric XB7NW33M1 Harmony XB7 Illuminated Push Button Green Projecting 22 mm Push Button

Brand: Schneider Electric
Reference No: XB7NW33M1
Catalog No: XB7NW33M1
Series: Harmony XB7
Tariff Code (HS): 853650
Rated Voltage: 230 V AC 50/60 Hz
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$13.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB7NW33M1 is a Harmony XB7 illuminated push button for 22 mm panel cutouts, with a green projecting operator that returns by spring and lights through an integral LED supplied at 230 V AC 50/60 Hz. It switches a 1 NO contact through screw-clamp terminals, and the IP65-rated plastic body suits dusty or washdown-duty control panels.

Technical Specifications

Reference XB7NW33M1
Brand Schneider Electric
Range of Product Harmony XB7
Product or Component Type Illuminated push-button
Device presentation Monolithic product
Mounting diameter 22 mm
Operator profile Green projecting, unmarked
Type of operator Spring return
Contacts type and composition 1 NO
Contact operation Slow-break
Light source LED, integral
Bulb base Integral LED
[Us] rated supply voltage 230 V AC 50/60 Hz
Supply voltage limits 195...264 V AC
Current consumption 22...27 mA
Service life 70,000 h at rated voltage and 25 °C
Short-circuit protection 4 A cartridge fuse gG
[Ui] rated insulation voltage 250 V (IEC 60947-1)
[Uimp] rated impulse withstand voltage 4 kV (IEC 60947-1)
Connections - terminals Screw clamp, ≤ 2 x 1.5 mm² with cable end / 1 x 0.34...2 x 2.5 mm² without
Dimensions (H x W x D) 29 x 29 x 57.5 mm
Net weight 0.023 kg (0.051 lb)
IP degree of protection IP20 rear / IP65 front (IEC 60529)
Enclosure Type UL type 12
GTIN 3606480470769

Certifications & Standards

  • GOST
  • CCC
  • JIS C8201-5-1
  • IEC 60947-1
  • UL 508
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • JIS C8201-1

Selection Notes

The XB7NW33M1's integral LED needs no spare bulb stock and reaches a UL type 12 enclosure rating, a step up from the BA9s incandescent version in the same Harmony XB7 projecting body. Its 230 V AC supply should be matched to whatever control-circuit voltage already feeds the panel — 24 V DC for PLC-fed stations, 230 V AC where line voltage is run directly to the pilot devices.

Technical Details

Short Description
Harmony XB7 22mm green illuminated push button, integral LED, 230 V AC, 1NO, IP65.
Rated Voltage (VAC)
230 V AC 50/60 Hz
Mounting Type
Panel mount, 22 mm cutout
Protection Type
IP65
Catalog No
XB7NW33M1
Delivery Date (Days)
30 days
Model Number
Harmony XB7
Tariff Code
853650
