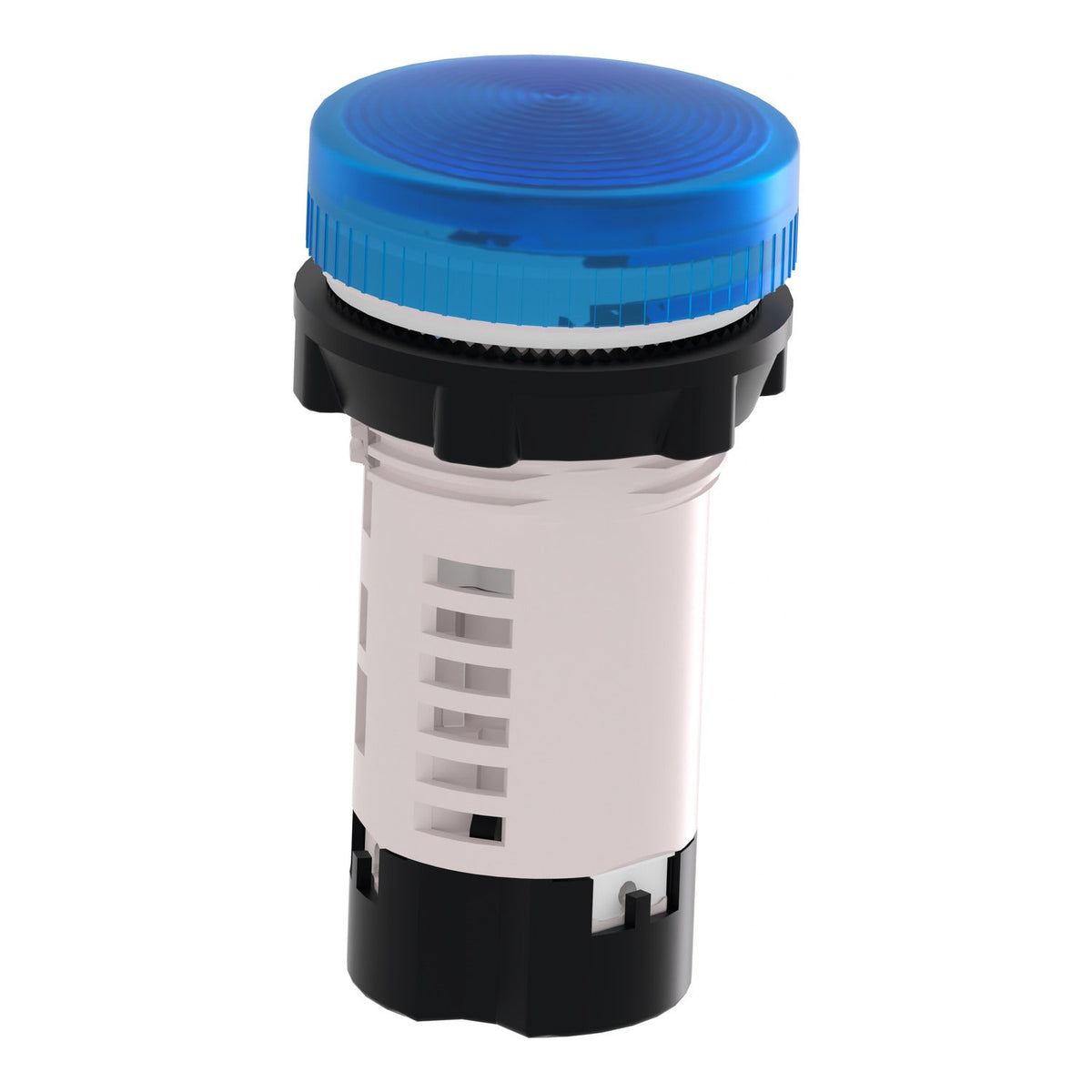

Schneider Electric XB7EV66P Harmony XB7 Monolithic Pilot Light Plastic Blue 22 mm Plain Lens BA9s Pilot Light

% $-3.28
Schneider Electric XB7EV66P Harmony XB7 Blue pilot light - 22 mm plain lens BA9s
Schneider Electric XB7EV66P Harmony XB7 Blue pilot light - 22 mm plain lens BA9s

Schneider Electric XB7EV66P Harmony XB7 Monolithic Pilot Light Plastic Blue 22 mm Plain Lens BA9s Pilot Light

Brand: Schneider Electric
Reference No: XB7EV66P
Catalog No: XB7EV66P
Series: Harmony XB7
Tariff Code (HS): 853661
Rated Voltage: ≤ 250 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3.28

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB7EV66P is a Harmony XB7 monolithic pilot light for 22 mm panel cutouts, supplied as a plain blue lens with a BA9s bulb base rated up to 250 V (bulb not included). Screw-clamp, Faston and forked-tag terminal options cover different wiring practices, and the IP54-front plastic bezel suits indoor control panels.

Technical Specifications

Reference XB7EV66P
Brand Schneider Electric
Range of Product Harmony XB7
Product or Component Type Pilot light
Device presentation Monolithic product
Mounting diameter 22 mm
Shape of signaling unit head Round
Cap/operator or lens colour Blue
Light source Incandescent (bulb not included)
Bulb base BA 9s
Light block supply Direct
[Us] rated supply voltage ≤ 250 V
[Ui] rated insulation voltage 250 V (IEC 60947-1)
[Uimp] rated impulse withstand voltage 6 kV (IEC 60947-1)
Connections - terminals Faston 6.35 x 0.8 mm / forked tag 6.5 mm / screw clamp ≤ 2.5 mm²
Dimensions (H x W x D) 29 x 29 x 54 mm
Net weight 0.018 kg (0.040 lb)
Device mounting Fixing hole 22.5 mm
IP degree of protection IP20 rear / IP54 front (IEC 60529)
Enclosure Type UL type 12
Ambient air temperature, operation -25...55 °C
Ambient air temperature, storage -40...70 °C

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-1
  • JIS C8201-5-1
  • CSA C22.2 No 14
  • UL 508
  • JIS C8201-1

Selection Notes

Because the XB7EV66P ships without a bulb, it suits panels where a BA9s incandescent lamp is already stocked as a spare part, or where the up-to-250 V direct supply rating needs to match line voltage without a dedicated LED driver. The blue lens keeps this variant within Harmony's standard colour set, and the flexible Faston, forked-tag or screw-clamp terminals let it retrofit panels wired for older pilot-light styles.

Technical Details

Short Description
Harmony XB7 22mm blue plain-lens pilot light, BA9s base, up to 250V, bulb not included.
Rated Voltage (VAC)
≤ 250 V
Mounting Type
Panel mount, 22 mm cutout
Protection Type
IP54
Catalog No
XB7EV66P
Delivery Date (Days)
30 days
Model Number
Harmony XB7
Tariff Code
853661
