Schneider Electric XB7EV08MP Harmony XB7 Monolithic Pilot Light Plastic Orange 22 mm Integral LED Pilot Light

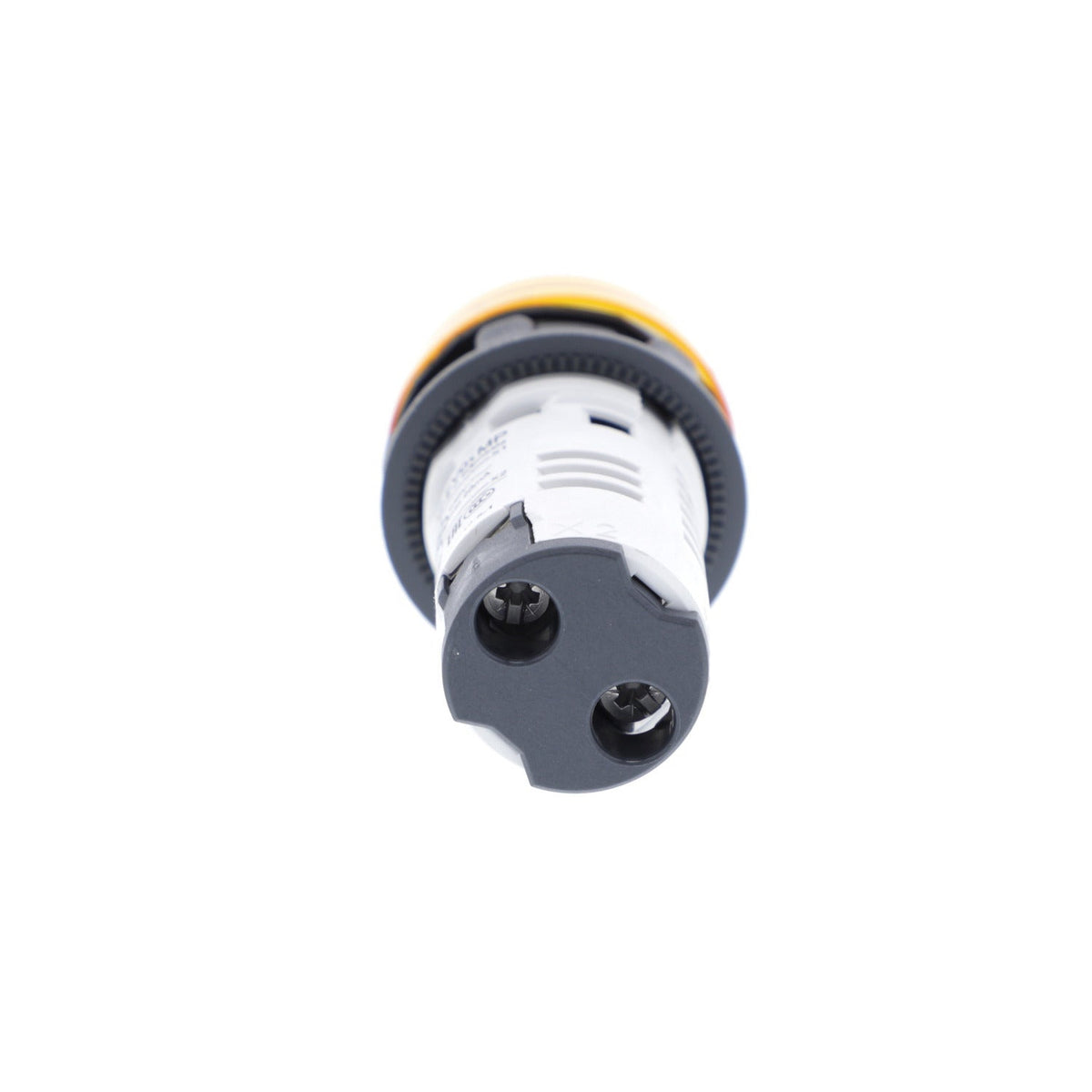

The Schneider Electric XB7EV08MP is a Harmony XB7 monolithic pilot light for 22 mm panel cutouts on machine control panels. Its round orange lens uses an integral LED supplied at 230...240 V AC 50/60 Hz, screw-clamp terminals rated up to 2.5 mm², and an IP65-rated plastic bezel (UL type 4/12) for panels exposed to washdown or dust.

Technical Specifications

Certifications & Standards

• UL 508
• JIS C8201-5-1
• CSA C22.2 No 14
• IEC 60947-5-1
• IEC 60947-1
• JIS C8201-1

Selection Notes
