Schneider Electric XB6DV5BB Harmony XB6 Complete Pilot Light Plastic Yellow Rectangular Lens 16 mm Pilot Light

% $-18.51
Schneider Electric XB6DV5BB Harmony XB6 Yellow pilot light - 16 mm integral LED
Schneider Electric XB6DV5BB Harmony XB6 Yellow pilot light - 16 mm integral LED

Schneider Electric XB6DV5BB Harmony XB6 Complete Pilot Light Plastic Yellow Rectangular Lens 16 mm Pilot Light

Brand: Schneider Electric
Reference No: XB6DV5BB
Catalog No: XB6DV5BB
Series: Harmony XB6
Tariff Code (HS): 853661
Rated Voltage: 12-24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$18.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

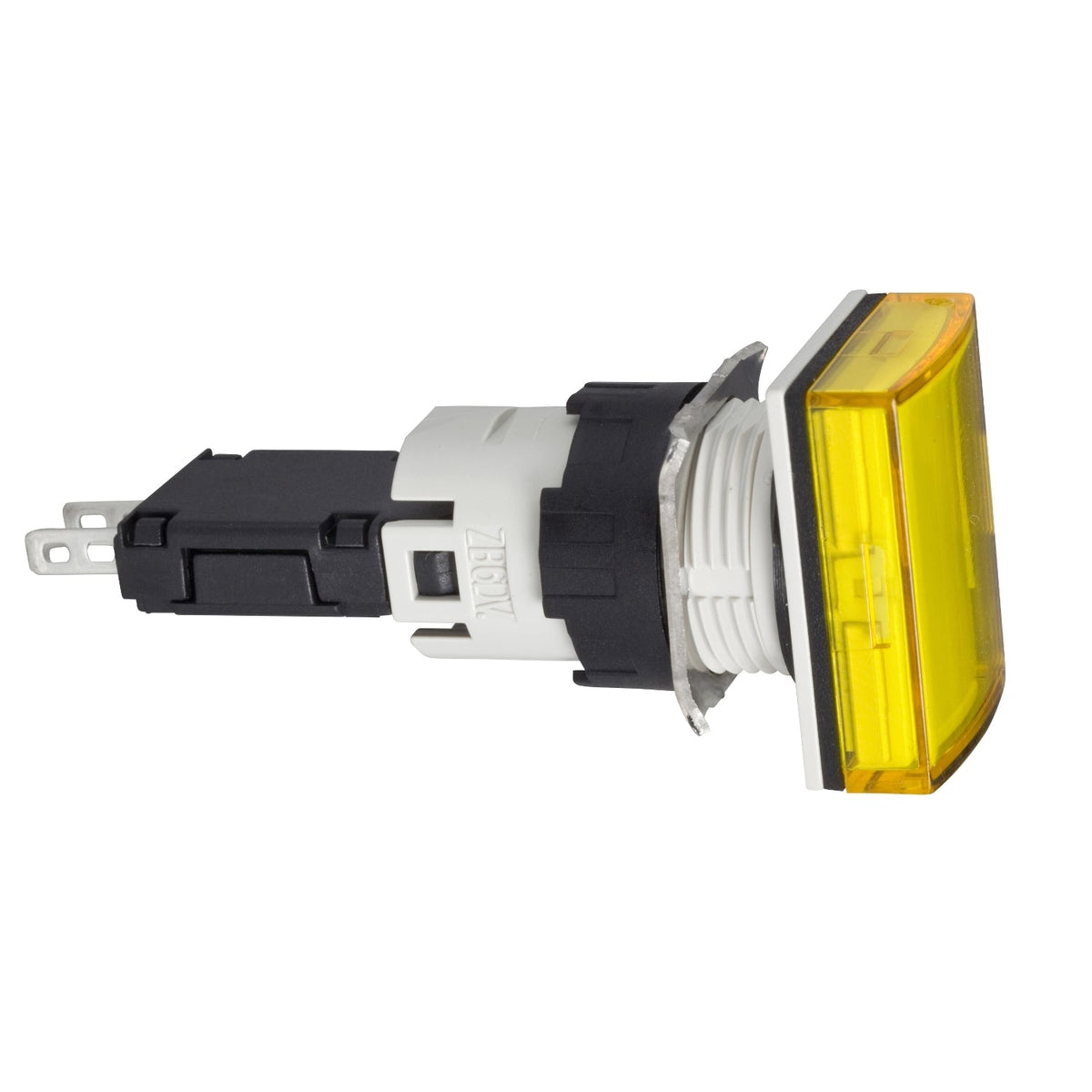

The Schneider Electric XB6DV5BB is a Harmony XB6 complete pilot light for 16 mm panel cutouts on space-restricted control boards and small machines. Its rectangular yellow lens runs on a 12-24 V AC/DC integral LED module through 2.8 x 0.5 mm Faston connectors, and the IP65-rated plastic body adds NEMA 4, 4X and 13 ratings for washdown-duty panels.

Technical Specifications

Reference XB6DV5BB
Brand Schneider Electric
Range of Product Harmony XB6
Product or Component Type Complete pilot light
Mounting diameter 16 mm
Shape of signaling unit head Rectangular
Cap/operator or lens colour Yellow
Light source LED, integral
[Us] rated supply voltage 12...24 V AC/DC
Supply voltage limits 6...30 V AC/DC
Current consumption 15 mA
[Ui] rated insulation voltage 250 V (IEC 60947-1)
[Uimp] rated impulse withstand voltage 4 kV (IEC 60947-1)
Connections - terminals Faston connectors 2.8 x 0.5 mm
Dimensions (H x W x D) 18 x 24 x 57 mm
Net weight 0.015 kg (0.033 lb)
IP degree of protection IP65 (IEC 60529)
NEMA degree of protection NEMA 4, 4X, 13
Electrical shock protection class Class II (IEC 61140)
Ambient air temperature, operation -25...70 °C
Ambient air temperature, storage -40...70 °C
GTIN 3389110764543

Certifications & Standards

  • CSA
  • CCC
  • GOST
  • UL
  • JIS C 852
  • IEC 60947-1
  • CSA C22.2 No 14
  • IEC 60947-5-5
  • UL 508
  • JIS C8201-5-1
  • IEC 60947-5-1
  • JIS C8201-1

Selection Notes

The yellow lens follows the standard Harmony status-light convention, and the 12-24 V AC/DC supply lets the XB6DV5BB share a 24 V DC control-circuit feed with the panel's PLC I/O instead of needing a separate transformer tap. Its 16 mm mounting diameter keeps the indicator compact where crowded button clusters or small enclosure doors cannot take a 22 mm Harmony XB7 pilot light.

Technical Details

Short Description
Harmony XB6 16mm yellow pilot light, integral LED, 12-24V AC/DC, IP65.
Rated Voltage (VAC)
12-24 V AC/DC
Mounting Type
Panel mount, 16 mm cutout
Protection Type
IP65
Catalog No
XB6DV5BB
Delivery Date (Days)
30 days
Model Number
Harmony XB6
Tariff Code
853661
