Schneider Electric XB6CW1B1B Harmony XB6 Illuminated White Square Flush 16 mm Spring Return 1NO Push Button

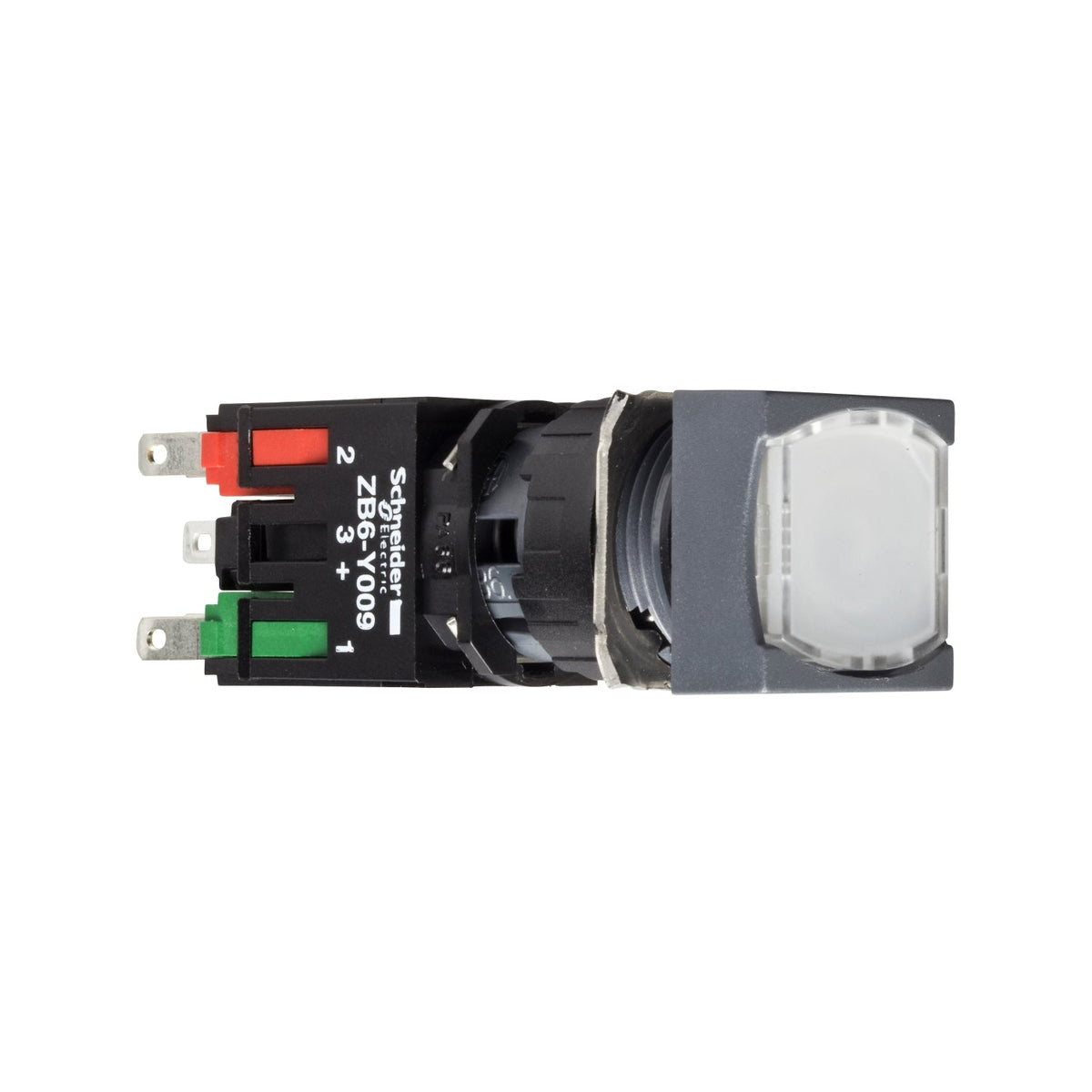

The Schneider Electric XB6CW1B1B is a Harmony XB6 complete illuminated push button with a white flush square head, 16 mm plastic bezel, spring-return operator, and 1NO slow-break contact, supplied at 12...24 V AC/DC. The square head distinguishes it visually from the round XB6AW1B1B on the same panel, mounting into the same 16 mm cut-out.

Technical Specifications

Certifications & Standards

• CSA
• CCC
• UL
• GOST
• IEC 60947-1
• IEC 60947-5-1
• CSA C22.2 No 14
• JIS C 4520
• JIS C 852
• IEC 60947-5-5

Selection Notes

The square head is a shape-coded alternative to the round XB6AW1B1B for the same electrical function, letting a panel builder distinguish button groups by silhouette as well as colour. The spring-return operator pulses the contact only while held, suiting a momentary start or jog command rather than a maintained state. Running on 12...24 V AC/DC with only 15 mA draw, the integral LED shares the same low-voltage control supply as the contact.
