Schneider Electric XB6AV4BB Harmony XB6 Complete Pilot Light Round Red 16 mm Integral LED 12-24 V Pilot Light

% $-18.51

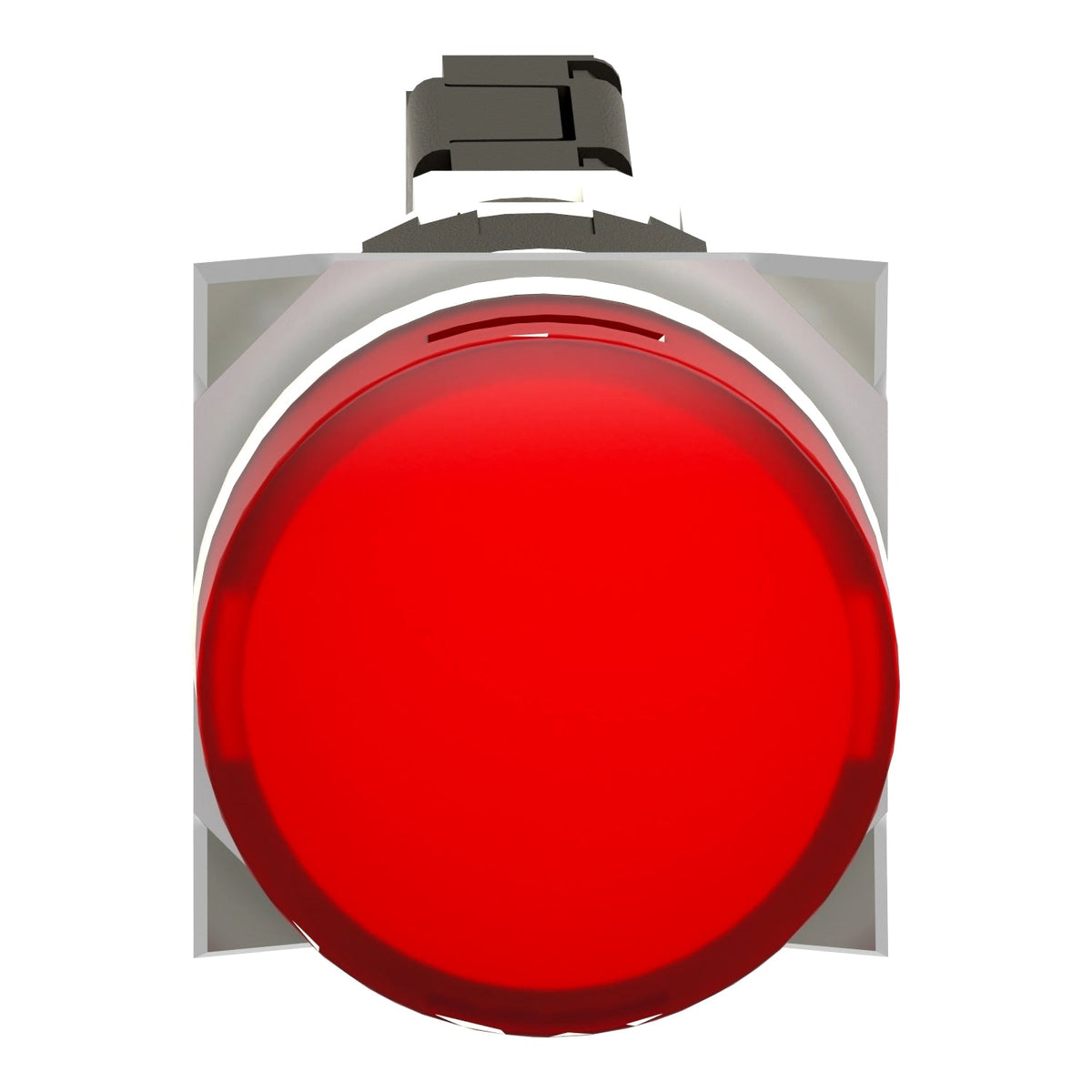

Schneider Electric XB6AV4BB Harmony XB6 round red pilot light 16 mm Pilot Light
Schneider Electric XB6AV4BB Harmony XB6 round red pilot light 16 mm Pilot Light

Schneider Electric XB6AV4BB Harmony XB6 Complete Pilot Light Round Red 16 mm Integral LED 12-24 V Pilot Light

Brand: Schneider Electric
Reference No: XB6AV4BB
Catalog No: XB6AV4BB
Series: Harmony XB6
Tariff Code (HS): 853661
Rated Voltage: 12-24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$18.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB6AV4BB is a Harmony XB6 complete pilot light with a round red 16 mm plastic lens and an integral LED, supplied at 12...24 V AC/DC with a steady signal. It mounts into a 16 mm cut-out, giving compact status indication on small machines and control panels.

Technical Specifications

Reference XB6AV4BB
Brand Schneider Electric
Range of Product Harmony XB6
GTIN 3389110764499
Product or Component Type Complete pilot light
Bezel Material Plastic
Mounting Diameter 16 mm
Shape of Head Round
Lens Colour Red
Light Source Integral LED
Light Block Supply Direct
Signalling Type Steady
[Us] Rated Supply Voltage 12...24 V AC/DC (limits 6...30 V)
Current Consumption 15 mA
[Ui] Rated Insulation Voltage 250 V
Connections Faston connectors, 2.8 x 0.5 mm
IP Degree of Protection IP65
Ambient Air Temperature (Operation) -25...70 degC
Net Weight 0.015 kg

Certifications & Standards

  • GOST
  • CSA
  • CCC
  • UL
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • JIS C 852
  • UL 508
  • IEC 60947-1
  • JIS C8201-5-1
  • IEC 60947-5-5
  • JIS C8201-1

Selection Notes

Red follows IEC 60073 colour-coding for fault, alarm or stopped-state indication, distinguishing it from the green XB6AV3BB running-status lamp on the same panel. At 12...24 V AC/DC with 15 mA draw, the integral LED runs directly off the same low-voltage control supply as a PLC output, with no separate bulb to replace. The direct light-block supply means the lamp lights whenever voltage is present at the terminals, with no internal switching contact.

Technical Details

Short Description
Schneider Electric XB6AV4BB Harmony XB6 round red pilot light, 16 mm, integral LED, 12-24 V AC/DC, IP65.
Rated Voltage (VAC)
12-24 V AC/DC
Mounting Type
Panel mount, 16 mm cutout
Protection Type
IP65
Catalog No
XB6AV4BB
Delivery Date (Days)
30 days
Model Number
XB6
Tariff Code
853661
