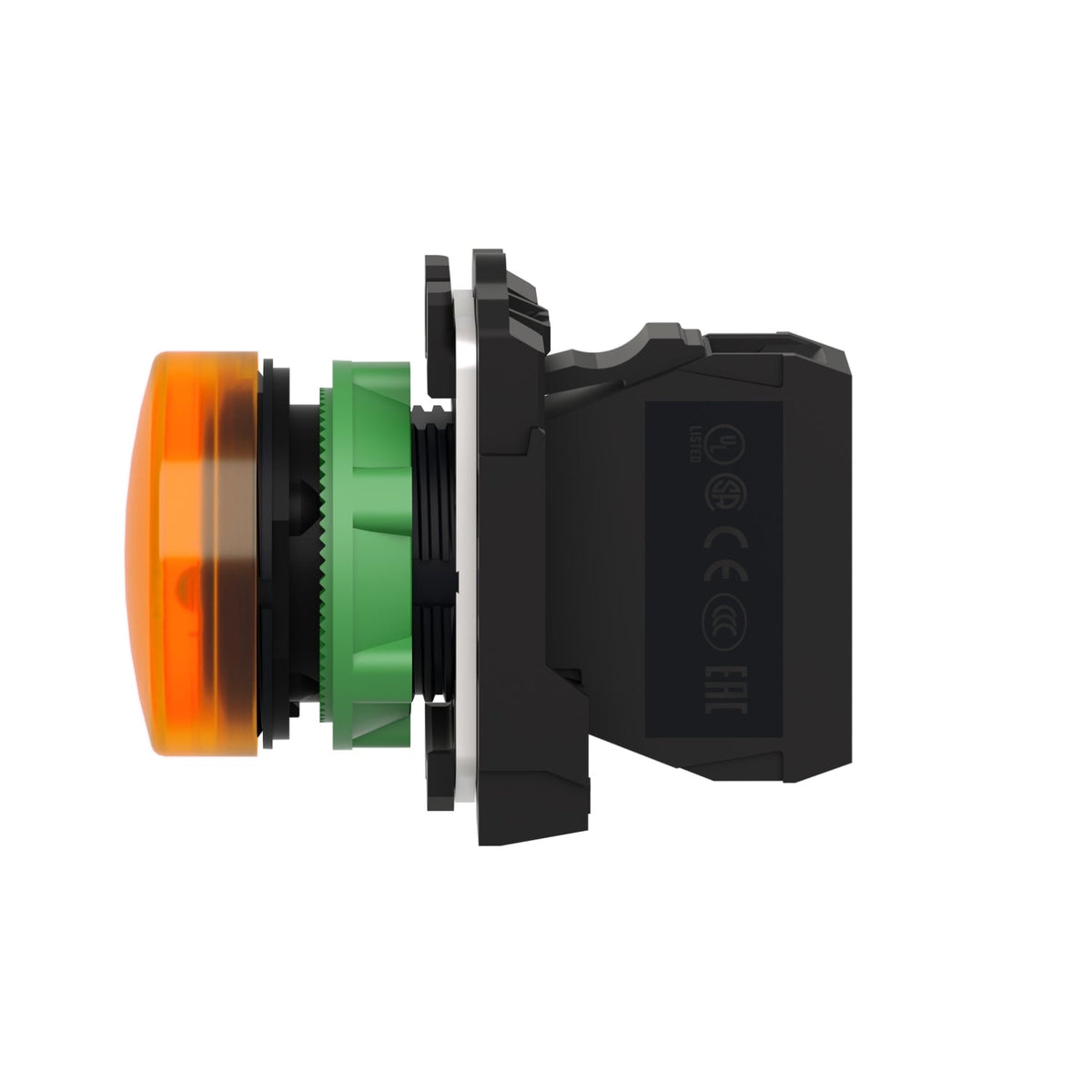

Schneider Electric XB5AVM5 Harmony XB5 Pilot Light Plastic Orange 22 mm LED 230-240 V AC Pilot Light

% $-9.44
Schneider Electric XB5AVM5 Harmony XB5 Pilot Light Orange – LED 230-240 V AC
Schneider Electric XB5AVM5 Harmony XB5 Pilot Light Orange – LED 230-240 V AC

Schneider Electric XB5AVM5 Harmony XB5 Pilot Light Plastic Orange 22 mm LED 230-240 V AC Pilot Light

Brand: Schneider Electric
Reference No: XB5AVM5
Catalog No: XB5AVM5
Series: Harmony XB5
Tariff Code (HS): 853661
Rated Voltage: 230-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$9.44

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5AVM5 is a Harmony XB5 pilot light for 22 mm panel cut-outs with a orange plain lens over an integral, non-replaceable LED. It runs directly on 230...240 V AC (195-264 V limits) through screw-clamp terminals and is rated IP66/IP67/IP69/IP69K for washdown duty, with a 100,000-hour LED service life at rated voltage and 25 degrees C.

Technical Specifications

Reference XB5AVM5
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3389110903874
Product or Component Type Pilot light
Device short name XB5
Mounting diameter 22.5 mm
Cap/lens colour Orange
Light source Universal LED (integral)
Rated supply voltage [Us] 230...240 V AC, 50/60 Hz
Supply voltage limits 195-264 V AC
Current consumption 14 mA
Service life 100,000 h at rated voltage, 25 °C
Rated insulation voltage [Ui] 250 V
Rated impulse withstand voltage [Uimp] 4 kV
Surge withstand 1 kV
Bezel material Dark grey plastic
Height x Width x Depth 42 x 30 x 54 mm
Net weight 0.038 kg
IP degree of protection IP66 / IP67 / IP69 / IP69K
IK degree of protection IK05
Ambient operating temperature -40...70 °C

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • IEC 60947-5-1
  • CSA C22.2 No 14

Selection Notes

Pick the orange lens when panel colour-coding calls for an abnormal/caution indication; every lens colour in the XB5 AVM series shares the same 230...240 V AC rating and integral-LED construction. Choose XB5AVM5 over the 24 V AVB variants when the pilot light is wired straight off the 230 V control supply without a separate low-voltage source.

Technical Details

Short Description
Harmony XB5 pilot light, orange plain lens, integral LED, 230-240 V AC, 22 mm.
Rated Voltage (VAC)
230-240 V AC
Mounting Type
Panel, 22 mm cut-out
Protection Type
IP69K
Catalog No
XB5AVM5
Delivery Date (Days)
30 days
Model Number
XB5
Tariff Code
853661
