Schneider Electric XB5AVB6 Harmony XB5 Pilot Light Plastic Blue 22 mm LED 24 V AC/DC Pilot Light

% $-7.46

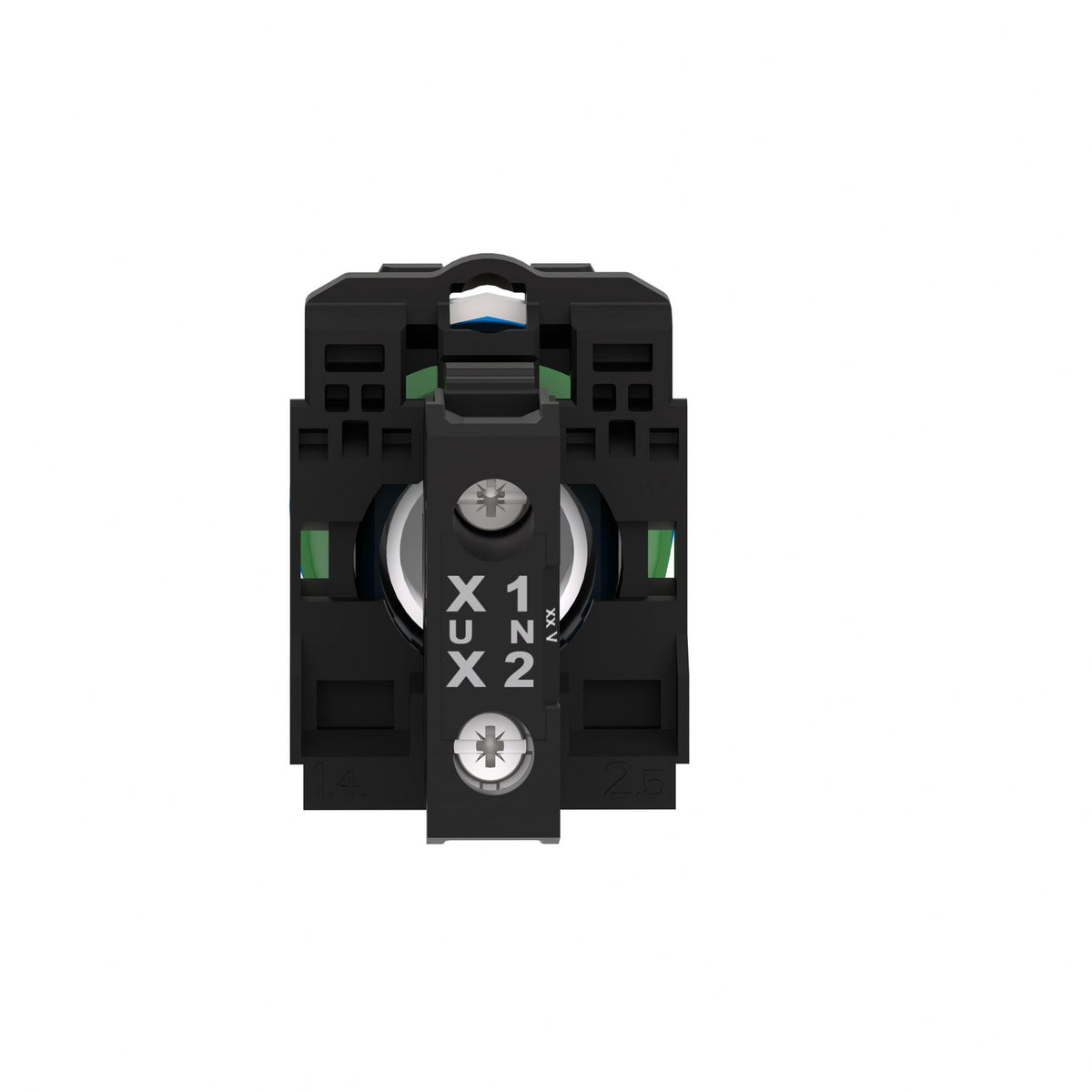

Schneider Electric XB5AVB6 Harmony XB5 Pilot Light Blue – LED 24 V AC/DC
Schneider Electric XB5AVB6 Harmony XB5 Pilot Light Blue – LED 24 V AC/DC

Schneider Electric XB5AVB6 Harmony XB5 Pilot Light Plastic Blue 22 mm LED 24 V AC/DC Pilot Light

Brand: Schneider Electric
Reference No: XB5AVB6
Catalog No: XB5AVB6
Series: Harmony XB5
Tariff Code (HS): 853661
Rated Voltage: 24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$7.46

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5AVB6 is a Harmony XB5 pilot light for 22 mm panel cut-outs with a blue plain lens over an integral, non-replaceable LED. It runs on 24 V AC/DC (19.2-30 V DC or 21.6-26.4 V AC) through screw-clamp terminals and is rated IP66/IP67/IP69/IP69K for washdown duty, with a 100,000-hour LED service life at rated voltage and 25 degrees C.

Technical Specifications

Reference XB5AVB6
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3389110136906
Product or Component Type Pilot light
Device short name XB5
Mounting diameter 22.5 mm
Cap/lens colour Blue
Light source Universal LED (integral)
Rated supply voltage [Us] 24 V AC/DC, 50/60 Hz
Supply voltage limits 19.2-30 V DC / 21.6-26.4 V AC
Current consumption 18 mA
Service life 100,000 h at rated voltage, 25 °C
Rated insulation voltage [Ui] 250 V
Rated impulse withstand voltage [Uimp] 4 kV
Surge withstand 1 kV
Bezel material Dark grey plastic
Height x Width x Depth 42 x 30 x 54 mm
Net weight 0.038 kg
IP degree of protection IP66 / IP67 / IP69 / IP69K
IK degree of protection IK05
Ambient operating temperature -40...70 °C

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • IEC 60947-5-1
  • CSA C22.2 No 14

Selection Notes

Pick the blue lens when panel colour-coding calls for a mandatory-action or reset indication; every lens colour in the XB5 AVB series shares the same 24 V AC/DC rating and integral-LED construction. Choose XB5AVB6 over the BA9s-bulb AV6 variants when the panel runs 24 V control circuits and a 100,000 h LED service life is preferred over a replaceable bulb.

Technical Details

Short Description
Harmony XB5 pilot light, blue plain lens, integral LED, 24 V AC/DC, 22 mm.
Rated Voltage (VAC)
24 V AC/DC
Mounting Type
Panel, 22 mm cut-out
Protection Type
IP69K
Catalog No
XB5AVB6
Delivery Date (Days)
30 days
Model Number
XB5
Tariff Code
853661
