Schneider Electric XB5AV65 Harmony XB5 Pilot Light Plastic Orange 22 mm Plain Lens BA9s 250 V Pilot Light

% $-6.41

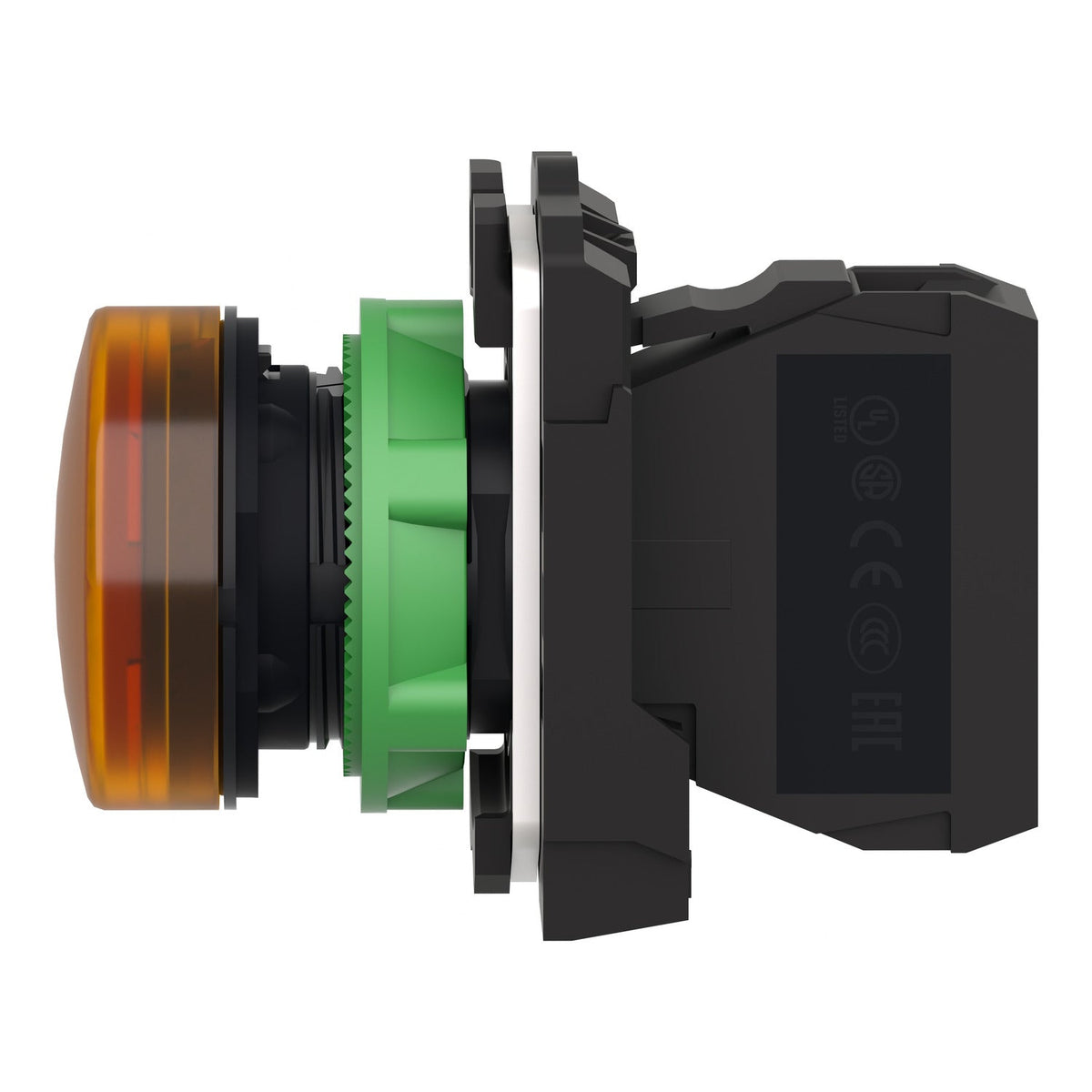

Schneider Electric XB5AV65 Harmony XB5 Pilot Light Orange – BA9s 250 V
Schneider Electric XB5AV65 Harmony XB5 Pilot Light Orange – BA9s 250 V

Schneider Electric XB5AV65 Harmony XB5 Pilot Light Plastic Orange 22 mm Plain Lens BA9s 250 V Pilot Light

Brand: Schneider Electric
Reference No: XB5AV65
Catalog No: XB5AV65
Series: Harmony XB5
Tariff Code (HS): 853661
Rated Voltage: 250 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$6.41

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5AV65 is a Harmony XB5 pilot light for 22 mm panel cut-outs, fitted with a orange plain lens over a BA9s bulb socket (bulb not supplied). Rated for AC supply up to 250 V through screw-clamp terminals, it carries IP66/IP67/IP69/IP69K sealing for washdown areas and mounts on a plastic bezel and fixing collar for chemical-resistant panel environments.

Technical Specifications

Reference XB5AV65
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3389110903997
Product or Component Type Pilot light
Device short name XB5
Mounting diameter 22.5 mm
Cap/lens colour Orange
Light source Bulb not included
Bulb base BA 9s
Light block supply Direct <2.4 W
Rated supply voltage [Us] ≤ 250 V
Rated insulation voltage [Ui] 250 V
Rated impulse withstand voltage [Uimp] 4 kV
Connections Screw clamp terminals, ≤ 2 x 1.5 mm² with cable end
Bezel material Dark grey plastic
Height x Width x Depth 42 x 30 x 55 mm
Net weight 0.037 kg
IP degree of protection IP66 / IP67 / IP69 / IP69K
IK degree of protection IK05
Ambient operating temperature -40...55 °C
Overvoltage category Class II

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • IEC 60947-5-1
  • CSA C22.2 No 14

Selection Notes

Pick the orange lens when panel colour-coding calls for an abnormal/caution indication; the other lens colours in the same XB5 AV6 series share the identical BA9s socket and 250 V rating, so the choice is purely about the signal colour on the panel. Because the bulb is not integral, XB5AV65 suits sites that already stock replaceable BA9s lamps rather than a sealed LED unit.

Technical Details

Short Description
Harmony XB5 pilot light, orange plain lens, BA9s bulb socket, up to 250 V, 22 mm.
Rated Voltage (VAC)
250 V
Mounting Type
Panel, 22 mm cut-out
Protection Type
IP69K
Catalog No
XB5AV65
Delivery Date (Days)
30 days
Model Number
XB5
Tariff Code
853661
