Schneider Electric XB5AA711237 Harmony XB5 Triple-Headed Push Button White Black Red 22 mm 2NO+1NC Push Button

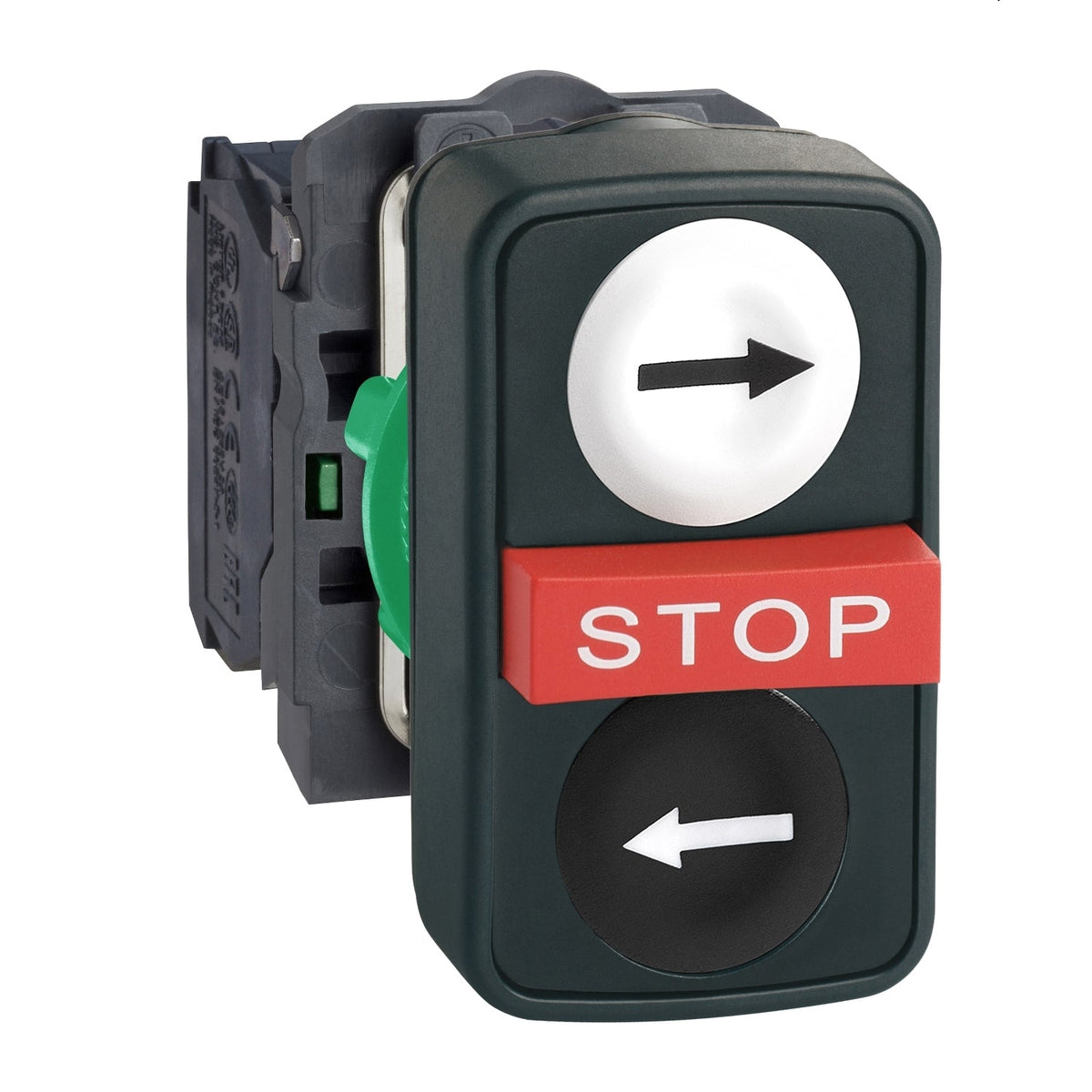

The Schneider Electric XB5AA711237 is a Harmony XB5 triple-headed push button combining a white flush right-arrow head, a black flush left-arrow head, and a red projecting STOP head in a single 22.5 mm panel cut-out, giving a 2NO+1NC contact set for three independent commands. The assembly is sealed to IP67, IP69, and IP69K, and each contact is rated 10 A Ith for direct wiring into PLC inputs.

Technical Specifications

Certifications & Standards

• CSA
• Lloyd's Register
• BV
• UL Listed
• DNV
• IEC 60947-5-1
• IEC 60947-1

Selection Notes

Combining three actuators under one 22.5 mm cut-out saves two panel holes versus mounting a jog-left, jog-right, and stop head separately, which matters on compact pendant stations and small HMI panels. The red projecting STOP head carries the normally-closed contact with positive opening per IEC 60947-5-1 Appendix K, so it fails safe on a welded contact the same as a single-headed red XB5AA4x unit. The two flush arrow heads give 2NO contacts for the jog commands, letting one component replace what would otherwise be three separate push buttons wired into the same control circuit.
