Schneider Electric XB4FD33 Harmony XB4 Metal Selector Switch 30 mm 3-Position Stay-Put 2NO Selector Switch

% $-20.57
Schneider Electric XB4FD33 Harmony XB4 Standard Handle Selector Switch - 30 mm 2NO
Schneider Electric XB4FD33 Harmony XB4 Standard Handle Selector Switch - 30 mm 2NO

Schneider Electric XB4FD33 Harmony XB4 Metal Selector Switch 30 mm 3-Position Stay-Put 2NO Selector Switch

Brand: Schneider Electric
Reference No: XB4FD33
Catalog No: XB4FD33
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$20.57

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

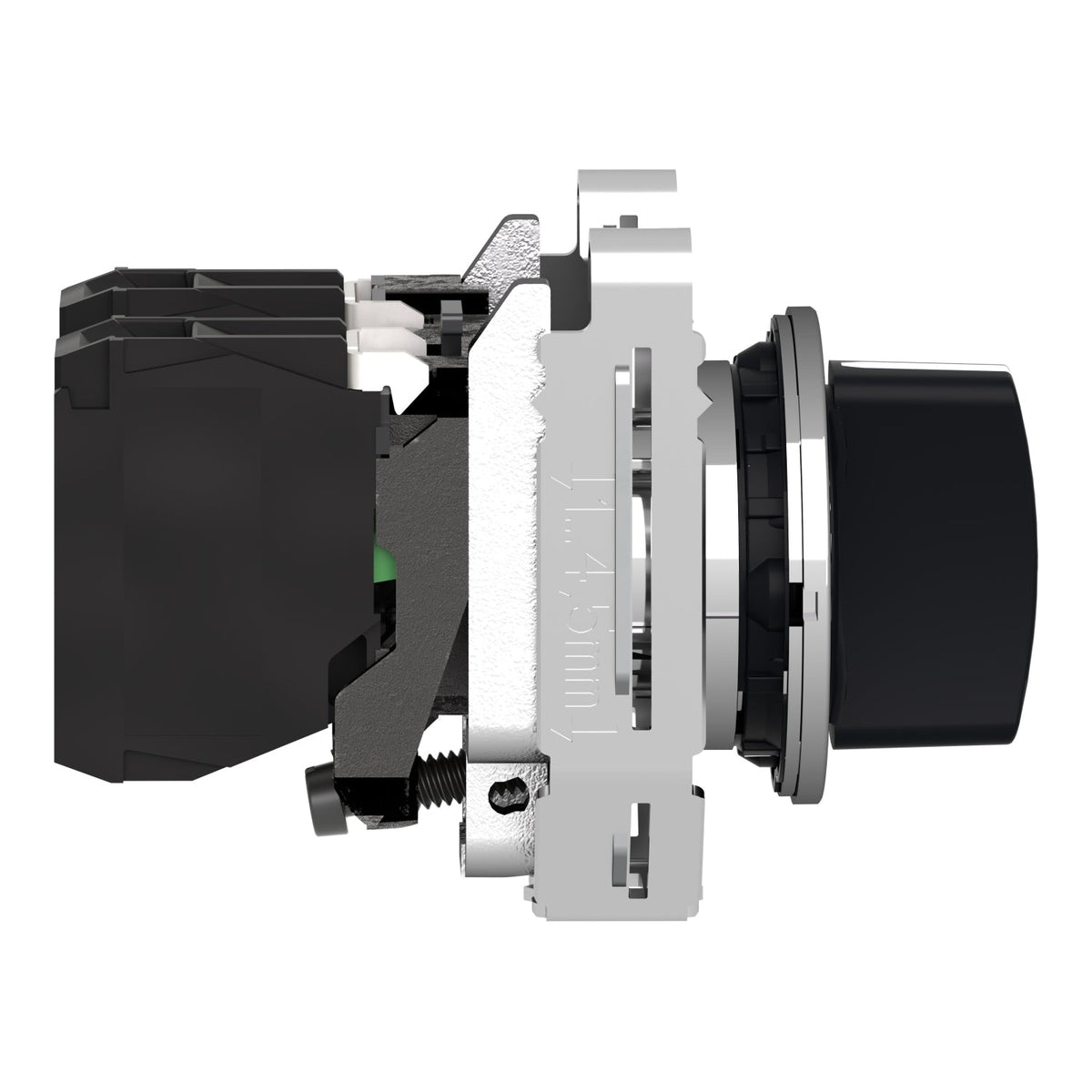

The Schneider Electric XB4FD33 is a Harmony XB4 metal flush-mounted selector switch, 30.5 mm mounting diameter, fitted with a black standard handle. It offers 3 positions +/-45 deg in stay put mode and switches a 2NO silver-alloy contact rated 10 A Ith for panel-front selection in enclosures rated up to IP69K.

Technical Specifications

Reference XB4FD33
GTIN 3606489580179
Brand Schneider Electric
Range of Product Harmony XB4
Product Type Selector switch
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 30.5 mm
Head Type Built-in-flush
Operator Profile Black standard handle
Type of Operator Stay put
Operator Position Information 3 positions ±45°
Contacts Type and Composition 2NO
Contact Operation Slow-break
Terminals Description ISO n°1 (23-24)NO | (13-14)NO
Height 47 mm
Depth 70 mm
Connections - Terminals Screw clamp, ≤2 x 1.5 mm² with cable end or ≥1 x 0.22 mm² without cable end (IEC 60947-1)
Width 36.6 mm
Fixing Center 40 x 50 mm (panel 1...6 mm thick)
[Ith] Conventional Free Air Thermal Current 10 A (IEC 60947-5-1)
[Ui] Rated Insulation Voltage 600 V (IEC 60947-1)
[Uimp] Rated Impulse Withstand Voltage 6 kV (IEC 60947-1)
[Ie] Rated Operational Current 3 A 240 V AC-15 | 6 A 120 V AC-15 | 1.2 A 600 V AC-15 | 0.1-0.55 A DC-13
Short-Circuit Protection 10 A cartridge fuse gG (IEC 60947-5-1)
Contacts Material Silver alloy (Ag/Ni)
Fixing Mode By screws
IP Degree of Protection IP66, IP67, IP69, IP69K, Type 12, Type 13, Type 4, Type 4X
IK Degree of Protection IK04
Net Weight 0.105 kg

Certifications & Standards

  • CE
  • UL Listed
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

Pick this 3-position stay put variant when the application needs 2NO switching with a standard handle; the spring-return-to-center versions self-center after release, while the stay-put versions hold the last selected position until the operator moves it again.

Technical Details

Short Description
Harmony XB4 metal black standard handle selector switch, 30 mm, 3 positions +/-45 deg, 2NO.
Mounting Type
Panel flush-mount, 30.5 mm cutout
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
XB4FD33
Delivery Date (Days)
30 days
Model Number
Harmony XB4
Tariff Code
853650
