Schneider Electric XB4BJ53 Harmony XB4 Metal Black Long Handle 3-Position Spring Return 2NO Selector Switch

% $-14.91

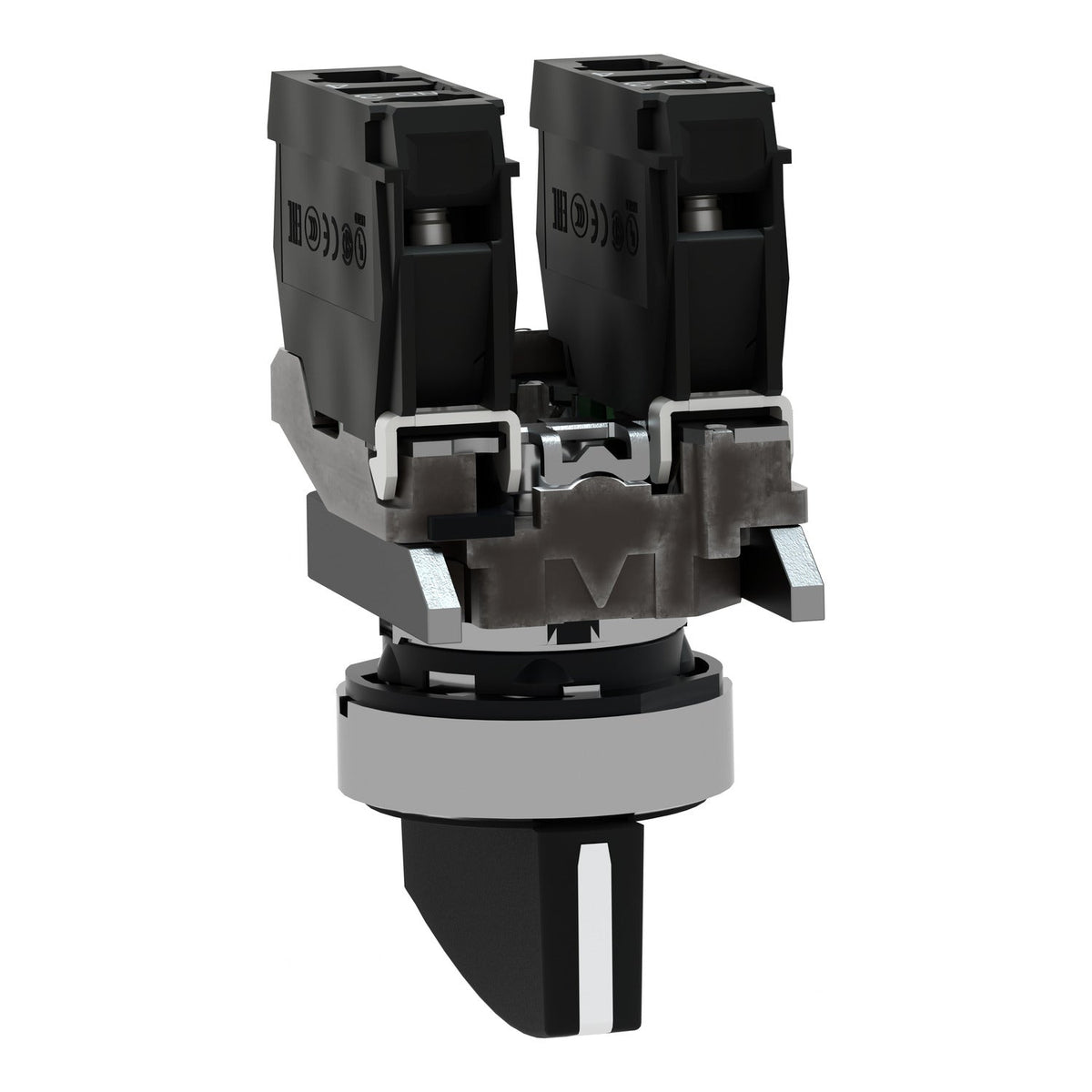

Schneider Electric XB4BJ53 Harmony XB4 long handle selector switch black spring return
Schneider Electric XB4BJ53 Harmony XB4 long handle selector switch black spring return

Schneider Electric XB4BJ53 Harmony XB4 Metal Black Long Handle 3-Position Spring Return 2NO Selector Switch

Brand: Schneider Electric
Reference No: XB4BJ53
Catalog No: XB4BJ53
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$14.91

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BJ53 is a Harmony XB4 22 mm modular selector switch with a black long handle and 3 positions at plus or minus 45 degrees. It springs back to the centre position, switches 2 NO contacts rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

SKU XB4BJ53
Brand Schneider Electric
Range Harmony XB4
Product Type Selector switch, long handle
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type To centre spring return
Operator Profile Black long handle, 3 positions at +/- 45 degrees
Contacts 2 NO, slow-break
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
IP Degree of Protection IP67 / IP69 / IP69K
Operating Temperature -40...70 C
Net Weight 0.105 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The XB4BJ53 returns to its centre position as soon as the operator releases the long handle, so it suits a momentary jog function on either side of centre rather than a mode that must hold. The long handle gives more leverage than the standard-handle XB4BD53, which shares the same spring-return-to-centre, 3-position, 2 NO specification. Where the selected position should hold instead, the stay-put XB4BJ33 in the same long-handle line is the correct choice.

Technical Details

Short Description
Harmony XB4 22 mm long handle selector switch, black, 3 positions, spring return to centre, 2NO.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BJ53
Delivery Date (Days)
30 days
Model Number
XB4BJ
Tariff Code
853650
