Schneider Electric XB4BD53 Harmony XB4 Metal Black 22 mm 3-Position Spring Return 2NO Selector Switch

% $-14.17

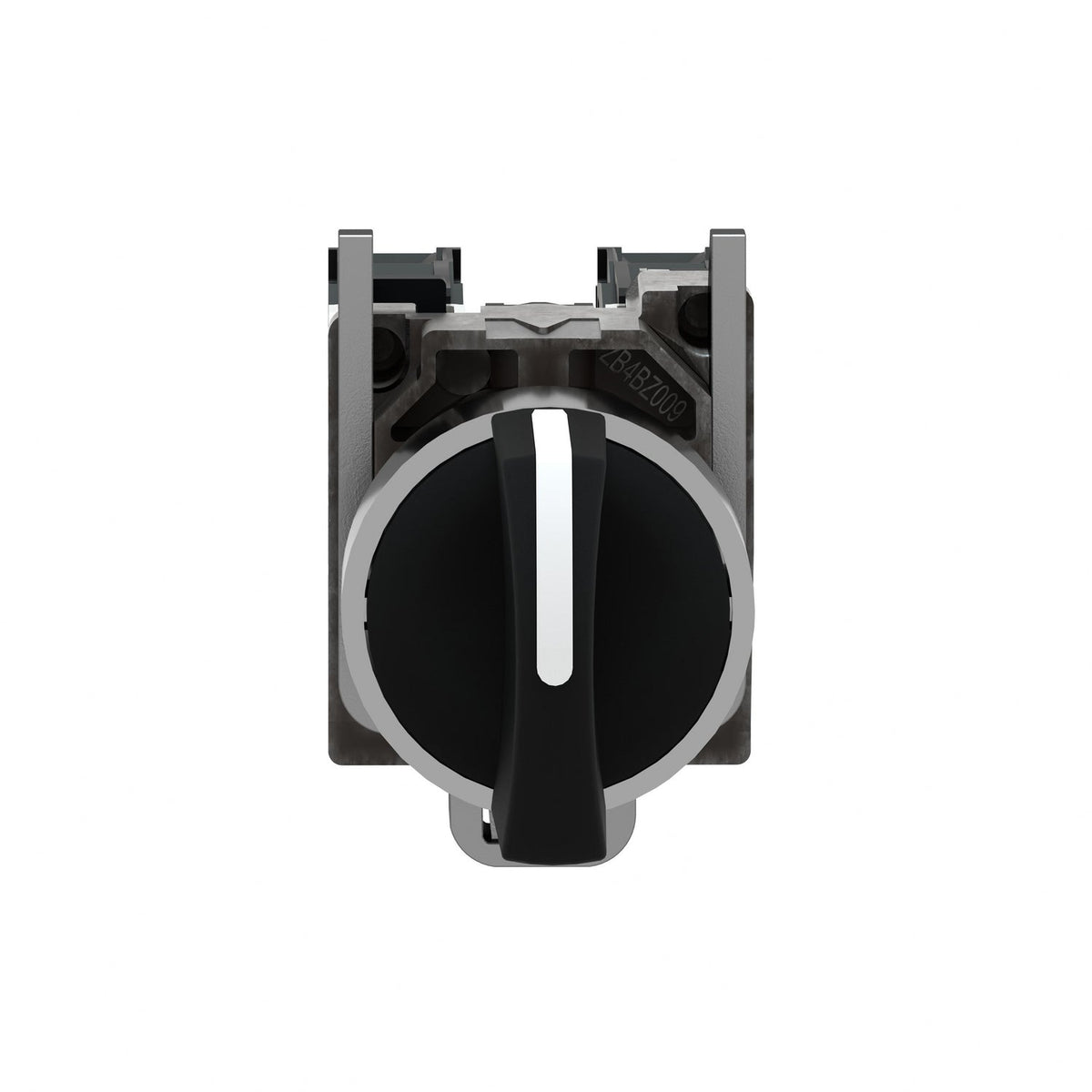

Schneider Electric XB4BD53 Harmony XB4 selector switch black spring return - 2NO
Schneider Electric XB4BD53 Harmony XB4 selector switch black spring return - 2NO

Schneider Electric XB4BD53 Harmony XB4 Metal Black 22 mm 3-Position Spring Return 2NO Selector Switch

Brand: Schneider Electric
Reference No: XB4BD53
Catalog No: XB4BD53
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$14.17

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BD53 is a Harmony XB4 22 mm modular selector switch with a black standard handle and 3 positions at plus or minus 45 degrees. It springs back to the centre position, switches 2 NO contacts rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

SKU XB4BD53
Brand Schneider Electric
Range Harmony XB4
Product Type Selector switch
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type To centre spring return
Operator Profile Black standard handle, 3 positions at +/- 45 degrees
Contacts 2 NO, slow-break
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
IP Degree of Protection IP67 / IP69 / IP69K
Operating Temperature -40...70 C
Net Weight 0.105 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The XB4BD53 returns to its centre position the moment the operator lets go, so either side position only holds while the handle is actively turned - useful for a momentary jog-left/jog-right function where the centre must always be the default rest state. The stay-put XB4BD33 in the same range is the correct choice instead where the selected position needs to hold without the operator continuing to apply force.

Technical Details

Short Description
Harmony XB4 22 mm selector switch, black handle, 3 positions, spring return to centre, 2NO.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BD53
Delivery Date (Days)
30 days
Model Number
XB4BD
Tariff Code
853650
