Schneider Electric XB4BA42 Harmony XB4 Push Button Metal Flush Red 22 mm Spring Return 1NC Push Button

% $-7.83

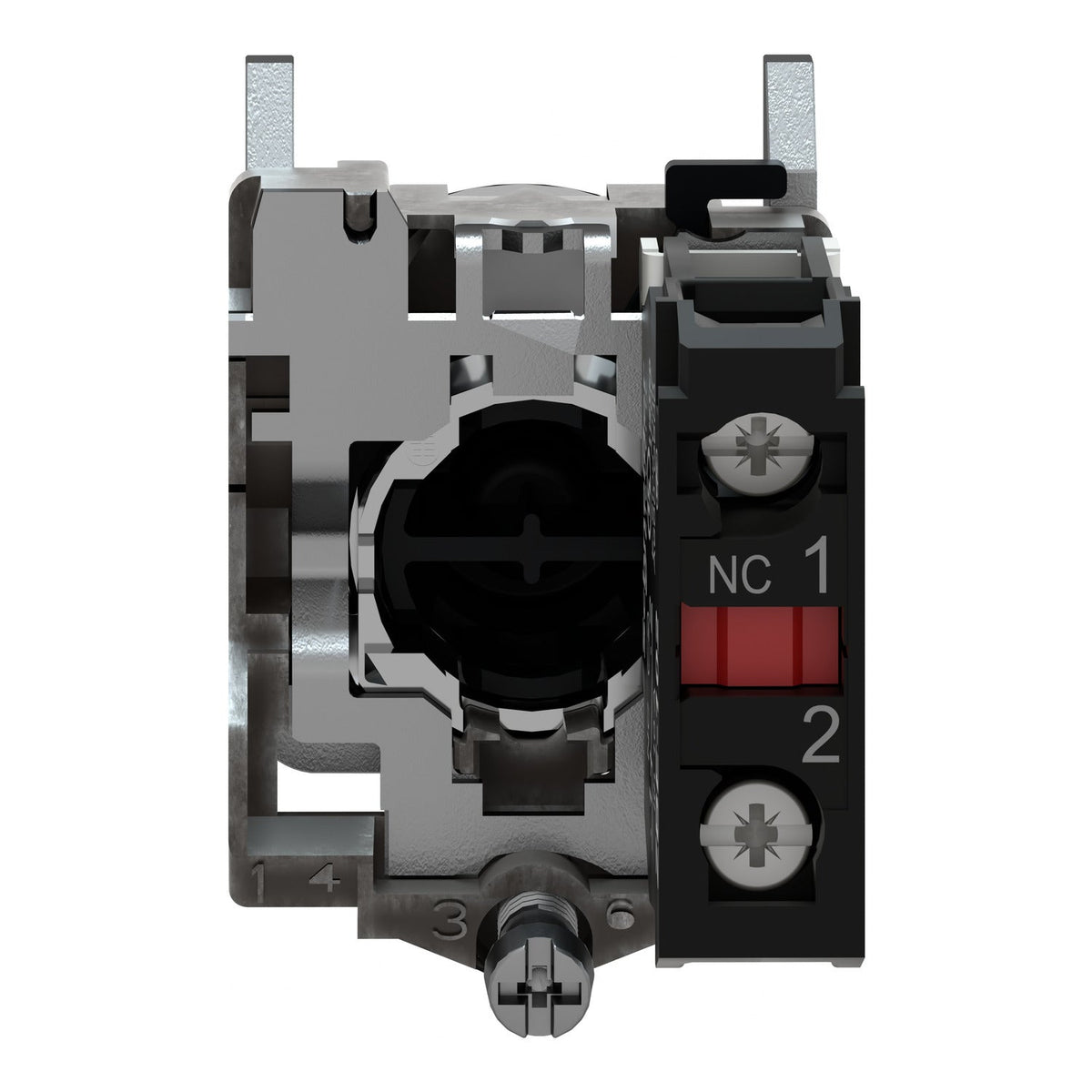

Schneider Electric XB4BA42 Harmony XB4 push button red flush - 1NC
Schneider Electric XB4BA42 Harmony XB4 push button red flush - 1NC

Schneider Electric XB4BA42 Harmony XB4 Push Button Metal Flush Red 22 mm Spring Return 1NC Push Button

Brand: Schneider Electric
Reference No: XB4BA42
Catalog No: XB4BA42
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$7.83

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BA42 is a Harmony XB4 22 mm modular push button with a red flush metal operator, unmarked. It operates on a spring return mechanism, switches 1 NC contact with positive opening rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals. The sealed metal body is rated up to IP69K for washdown environments.

Technical Specifications

SKU XB4BA42
Brand Schneider Electric
Range Harmony XB4
Product Type Push-button
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type Spring return
Operator Profile Red flush, unmarked
Contacts 1 NC, slow-break
Positive Opening With, per IEC 60947-5-1 appendix K
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
IP Degree of Protection IP66 / IP67 / IP69 / IP69K
IK Degree of Protection IK06
Operating Temperature -40...70 C
Net Weight 0.08 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The red flush XB4BA42 is a 1 NC contact, not 1 NO, so it is the choice for a stop or safety-interlock function wired to fail safe on wire break, unlike the 1 NO colour variants elsewhere in the range. Its positive opening guarantees contact separation even if the contacts weld, which is why it is specified for stop circuits rather than the marked-O XB4BA4322 variant alone deciding the function.

Technical Details

Short Description
Harmony XB4 22 mm push button, red flush metal, unmarked, spring return, 1NC, IP69K.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BA42
Delivery Date (Days)
30 days
Model Number
XB4BA
Tariff Code
853650
