Schneider Electric XB4BA3351 Harmony XB4 Metal Flush Black Marked Down Arrow Spring Return 1NO Push Button

% $-8.57

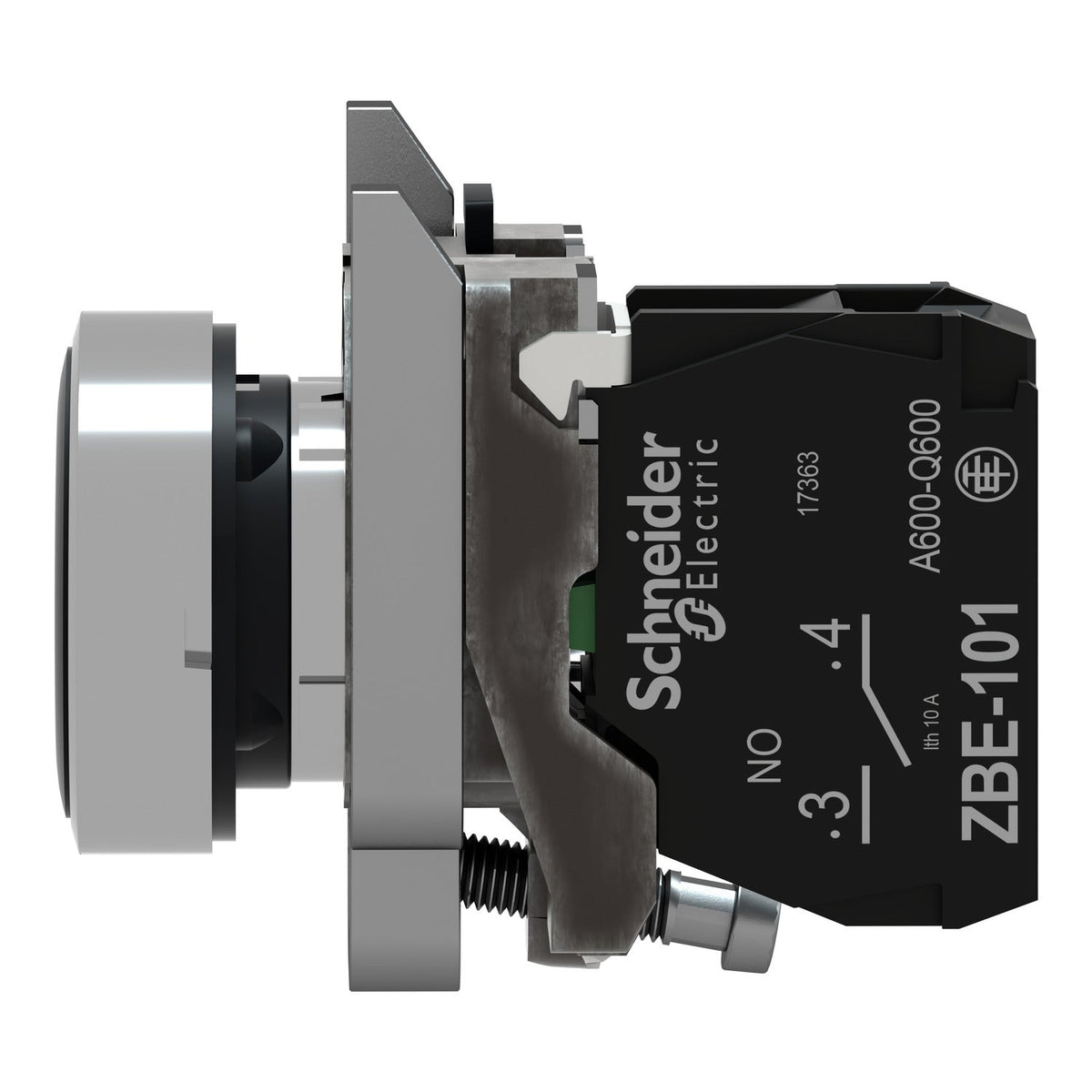

Schneider Electric XB4BA3351 Harmony XB4 push button black down arrow - 1NO
Schneider Electric XB4BA3351 Harmony XB4 push button black down arrow - 1NO

Schneider Electric XB4BA3351 Harmony XB4 Metal Flush Black Marked Down Arrow Spring Return 1NO Push Button

Brand: Schneider Electric
Reference No: XB4BA3351
Catalog No: XB4BA3351
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$8.57

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BA3351 is a Harmony XB4 22 mm modular push button with a black flush metal operator marked with a down arrow. It operates on a spring return mechanism, switches 1 NO contact rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals. The sealed metal body is rated up to IP69K for washdown environments.

Technical Specifications

SKU XB4BA3351
Brand Schneider Electric
Range Harmony XB4
Product Type Push-button
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type Spring return
Operator Profile Black flush, marked down arrow (white)
Contacts 1 NO, slow-break
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
IP Degree of Protection IP66 / IP67 / IP69 / IP69K
IK Degree of Protection IK06
Operating Temperature -40...70 C
Net Weight 0.08 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The black flush operator marked with a down arrow pairs with the up-arrow XB4BA3341 in the same range to form a raise/lower control pair on the same panel. Keep the arrow marking consistent across both buttons so operators read the arrow direction as the functional cue, rather than relying on the housing colour alone.

Technical Details

Short Description
Harmony XB4 22 mm push button, black flush metal marked down arrow, spring return, 1NO, IP69K.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BA3351
Delivery Date (Days)
30 days
Model Number
XB4BA
Tariff Code
853650
